Buy HT Instruments M71 Earth ground meter

A digital earth measurement device displays '38.2 Ohms' on the screen. This handheld device is used for testing earth resistance.

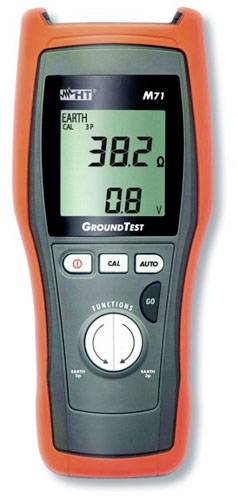

A digital earth testing device with a display showing '38.2 Ω' and '0.8 V'. It has buttons for functions and a calibration setting.

1/2

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 562.18 / piece)

€ 562.18

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Digital earthing measuring device

2-point earthing measurement
3-point earthing measurement
Measurement range 0.01 Ω - 50 kΩ
Interference voltage suppression
Calibration of test leads
Safety EN 61010-1
Overvoltage category CAT III 240 V
Power supply 4 x 1.5 V AA batteries
Dimensions (H x W x D) 240 x 100 x 45 mm
Weight (incl. batteries) 630 g

Technical specifications

Product type: Earth ground meter

Reading range - resistance: 0.01 Ω - 50000 Ω

Power supply (details): 4 x 1.5 V AA batteries

Dim: (L x W x H) 45 x 100 x 240 mm

Weight: 630 g

Display: LCD

Weight, information: incl. batteries

Content: 1 pc(s)

Reading category: CAT III

Width: 100 mm

Height: 240 mm

Length: 45 mm

Type: M71

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2176313 HT Instruments M71 Earth ground meter

User & Safety Instructions

User & Safety Instructions 2176313 HT Instruments M71 Earth ground meter

Description

The M71 is a compact earthing measuring device with ergonomic design for measuring the earthing resistance with the 2- and 3-conductor measurement according to VDE 0413 Part 5. Both meters have an electronic function selector switch for quick and reliable testing.
