Name: HT Instruments M72 Handheld multimeter
Brand: HT Instruments
SKU: 2176406
Availability: BackOrder

'Digital Multimeter M72 with a large, bright display, showing 8.60 MΩ resistance and 542 V voltage, suitable for various measurements.'

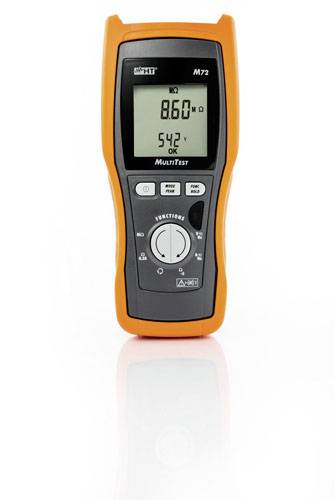

A digital multimeter displays a resistance of 860 ohms on the screen, with an orange casing and several control buttons.

A digital multimeter with an orange casing displays the values '860' and '542' on its display.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 3 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 545.00 / piece)

€ 545.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

M72

Insulation with test voltage 250, 500 V DC
Measurement range 0.01 MΩ ÷ 1 GΩ
Automatic discharge of the test object
Earth conductor continuity test with 200 mA
Calibration of test leads
Rotating field direction measurement
Voltage DC/AC up to 600 V (TRMS only M72)
Frequency
Automatic detection of DC/AC signals
AC TRMS and residual current with external pliers
Resistance and continuity test with buzzer
Data HOLD function
Measurement PEAK 1ms to DC/AC current and voltage
Max/MIN/AVG function (average)
Auto switch-off
Safety: En 61010-1, CAT III 550 V (Phase-Phase, Phase-PE)
Dimensions (L x W x H) 240 x 100 x 45 mm
Weight (with batteries): Approx. 630 g

Technical specifications

Product type: Handheld multimeter

Voltage DC reading range (max.): 600 V

V AC reading range (max.): 600 V

Measurement type (details): True RMS

Height: 45 mm

Width: 100 mm

Length: 240 mm

Weight: 630 g

: Manufacturer's standards (no certificate)

Current reading: AC/DC

Type: M72

Dim: (L x W x H) 240 x 100 x 45 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2176406 HT Instruments M72 Handheld multimeter

User & Safety Instructions

User & Safety Instructions 2176406 HT Instruments M72 Handheld multimeter

Description

The model M72 is an innovative portable device for measuring the insulation resistance and the continuity test of protective conductors in accordance with VDE 0100 on civil electrical installations. It also functions as a TRMS multimeter (real effective value) and measuring device for determining the direction of the rotating field and is thus ideal for the control of electrical installations according to VDE 0100/VDE 0105.
With the M72 model, insulation measurements can be made with a test voltage up to 1000 V DC (1000 V DC only M70) and the continuity test of the earth conductor (low-ohm measurement with> 200 mA). It is therefore used for testing according to VDE 0100 / VDE 0105 on electrical installations and for testing on industrial applications. Another feature is the three-phase phase sequence measurement with only one measuring line, the fault current measurement with external current clamp (with optional accessories) and an efficient TRMS multimeter function.
