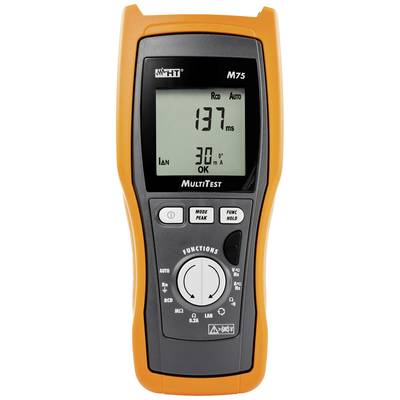

HT Instruments M75 Electrical tester Calibrated to (ISO standards) VDE standard 0100, 0413
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 651.26 / piece)
€ 651.26
plus VAT.
Highlights & Details
VDE 0100 Kombi tester and measurement apparatus Multitest M75
- Installation tester, Multimeter and LAN-Tester in one
- Electronic function selection button
- Multi-functional display
Technical specifications
- Overvoltage category: CAT III 550 V
- Product type
Electrical tester
ISO standards
- Reading category
CAT III 600 V
- Interfaces
none
- Dim
(L x W x H) 240 x 100 x 45 mm
- Weight
450 g
IP40
- Reading range (VDE)
Earth leakage resistance
Insulation resistance
Leakage current
Continuity
Touch voltage
Wave impedance
Voltage
Current
- DIN standard
DIN IEC 60364
DIN EN 61557
- Display type
Digital (LCD)
- Width
100 mm
- Height
45 mm
- Length
240 mm
- Test procedure
manual
- Voltage supply
Battery
- Memory
No
- Type
M75
- VDE standard
0100
0413
- Features
RCD/FI testing
- Memory
-
- Display (details)
LCD
- Interfaces
none
- Power supply (details)
4 Mignon batteries (AA)
- Standards
EN61010-1, VDE 0100
Documents & Downloads
Datasheet
Datasheet 123082 HT Instruments M75 Electrical tester Calibrated to (ISO standards) VDE standard 0100, 0413
User & Safety Instructions
User & Safety Instructions 123082 HT Instruments M75 Electrical tester Calibrated to (ISO standards) VDE standard 0100, 0413
Description
Innovative Kombi device consisting of True Effective Value Multimeter, VDE 0100-Tester for testing electrical installations and LAN network cable tester. The electronic selection switch allows a quick and easy operation and conduction of tests.
Features
- Multimeter functions: voltage, current (1 - 400A AC with clip-on ammeter), Resistance and Frequency
- VDE 0100 testing feature: passage of 200 mA, insulation with 500 V, loop resistance, FI release time, Innovative AUTO function by pressing a single button, measurement of rotating field with patented single-pin method
- LAN testing function: Quick mapping controls at general LAN network cables (short, split pair, open end etc.).
Scope of delivery
- C2075: Shock proof plug-adapter
- KIT0075: 2 measuring leads, 2 test probes, 2 alligator clips
- HT4003: Clip-on ammeter 400 A AC
- 2 External Markers #1/#2
- 3x 30 cm Patch cable RJ45
- BORSA75: Carry case, Batteries
- Calibration certificate
- User manual.
