Iduino ME234 Motor controller 1 pc(s) Compatible with (development kits): Arduino
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Highlights & Details

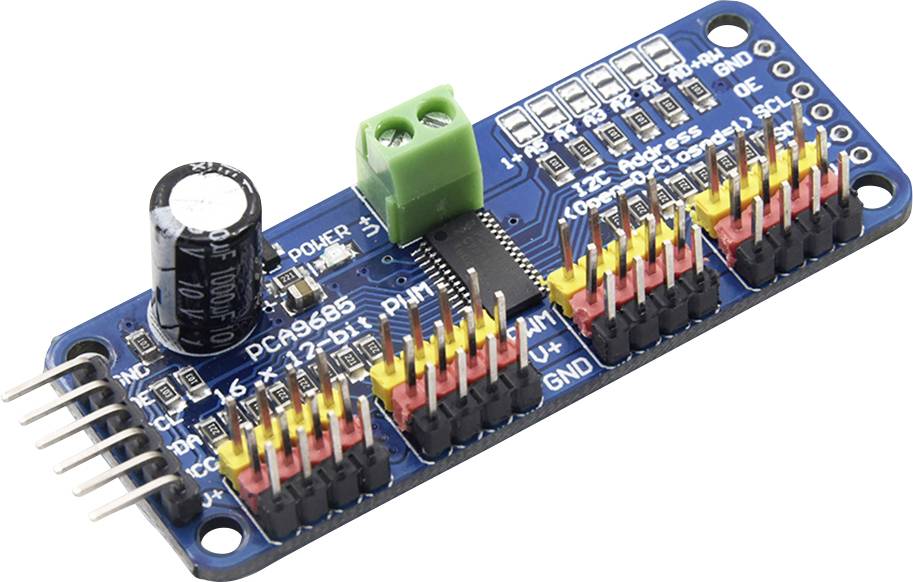

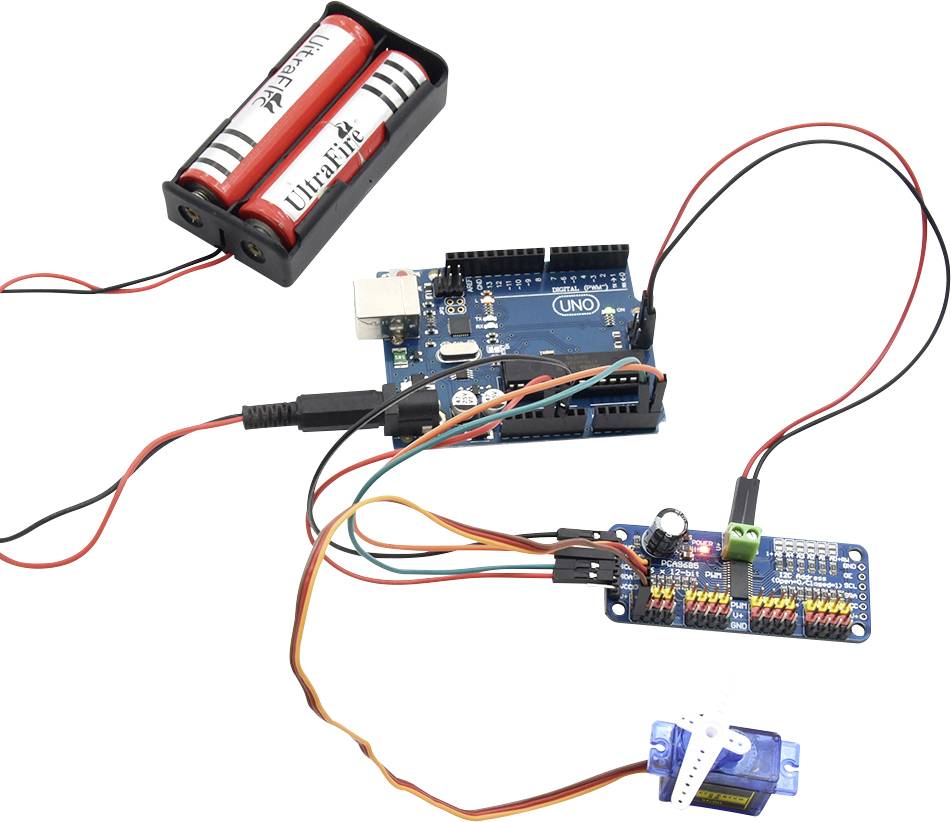

IDUINO PWM SERVO MOTOR DRIVER I2C MODULE
- This card/chip uses a I2C 7-bit address between 0x60-0x80, which can be selected with jumpers
- Terminal block for the power supply
- Reverse polarity protection at the terminal block input
- Green Power Good LED
- 3-pin connections in 4er groups so that you can connect 16 servos at the same time
- "Chain-capable" design
- A place to place a large capacitor on the V + line (if you need it)
- 220 ohm series resistors on all output lines to protect them and make driver LEDs trivial
- Solder bridges for the 6 address selection pins
- With integrated clock
Technical specifications
- Packaging type
Bulk
- Product type
Motor controller
- Compatible with
Arduino
- Interfaces
I²C
- Output voltage (max.)
5 V
- Output voltage (min.)
3.3 V
- Suitable for
Arduino
- Tool type
Motor controller
- Height
15 mm
- Length
68 mm
- Width
25 mm
- Weight
10.6 g
- Compatible with
Arduino
- UKCA
not relevant
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2315243 Iduino ME234 Motor controller 1 pc(s) Compatible with (development kits): Arduino
User & Safety Instructions
User & Safety Instructions 2315243 Iduino ME234 Motor controller 1 pc(s) Compatible with (development kits): Arduino
Description
Unlike the TLC5940 family, you do not need to send a continuous signal that binds your microcontroller. It runs completely free!
It is 5V compliant, which was meant that you could control it from a 3.3V microcontroller and still safely control up to 6V outputs (this is good if you want to control white or blue LEDs with more than 3.4 forward voltages).
6 address selection pins, with which you can cable up to 62 of them on a single I2C bus, a total of 992 outputs - these are many servos or LEDs and an adjustable frequency PWM up to approx. 1.6 kHz. Furthermore, there is a 12-bit resolution for each output - for servos this means a resolution of approx. 4us at an update rate of 60 Hz. Configurable push-pull or open-drain output and output enable pin for quick deactivation of all Outputs
This text is machine translated.
It is 5V compliant, which was meant that you could control it from a 3.3V microcontroller and still safely control up to 6V outputs (this is good if you want to control white or blue LEDs with more than 3.4 forward voltages).
6 address selection pins, with which you can cable up to 62 of them on a single I2C bus, a total of 992 outputs - these are many servos or LEDs and an adjustable frequency PWM up to approx. 1.6 kHz. Furthermore, there is a 12-bit resolution for each output - for servos this means a resolution of approx. 4us at an update rate of 60 Hz. Configurable push-pull or open-drain output and output enable pin for quick deactivation of all Outputs
This text is machine translated.
