igus E1.17.044.028.0

Several black, rectangular plastic modules, connected by hinges, form a flexible chain. They are lying on a light background.
A blue, adjustable lifting mechanism with a black frame and electric motor is mounted on a light-coloured floor.
1/2
Image similar
Product type
Drag chain
Inside width
44 mm
Length
255 mm
Features
UL94-V2 standard
Easy cable fitting
Series
E-Kette® E1
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
42 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (1 m = € 23.96)
€ 5.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

igus E1.17.044.028.0

  • One-piece band
  • Quickly mounted
  • UL94-V2 classification

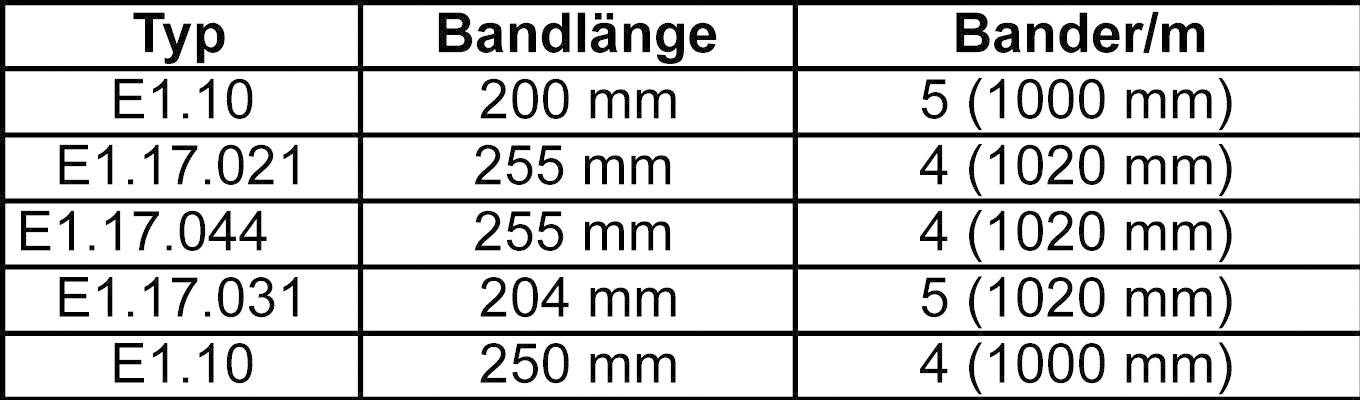

  • Table shows band data: Type, band length, and bands/m. Example: Type E.1.10 has 200 mm length and 5 bands/m (1000 mm).

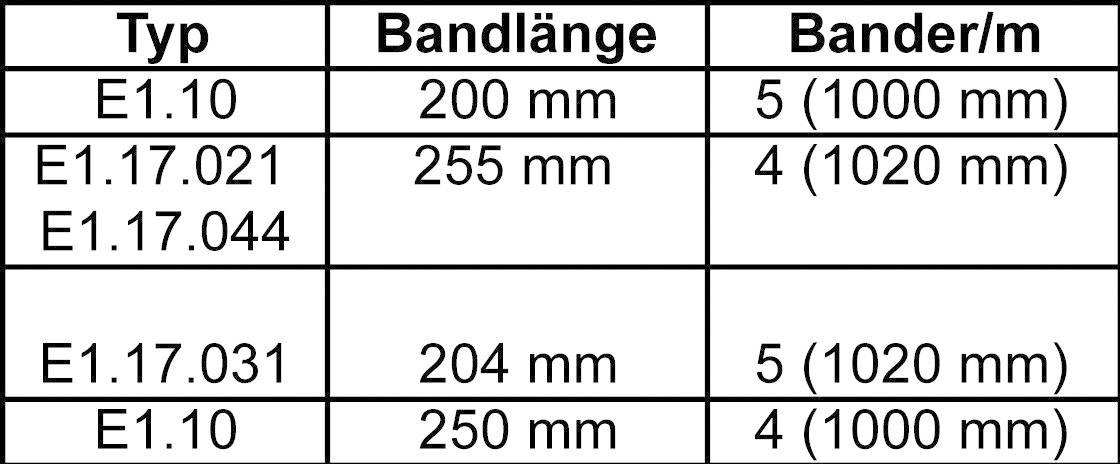

  • Table with Types and Tape Data: E1.10, E1.17.021, E1.17.044 with Tape Lengths and Tapes/m. Type E1.10 has 200 mm length, 5 (1000 mm) tapes/m.
  • A symbol of a running human representing speed and movement, with lines pointing to the left.
  • A simple thermometer with a long, vertical, mercury-like section and measurement scales indicates temperature values.

Technical specifications

  • Speed unsupported straight, max. 20m/s
  • Speed unsupported with arc, max. 3m/s
  • Speed floating max. 3m/s
Product type

Drag chain

Features

UL94-V2 standard

Easy cable fitting

Inside width

44 mm

Series

E-Kette® E1

Outside width

49 mm

Bend radius

28 mm

Factory colour

Black

Outside height

25 mm

Inside height

17 mm

Material (details)

Plastic

Length

255 mm

Min. temperature

-30 °C

Max. temperature

+100 °C

Manufacturer part #

E1.17.044.028.0

Content

1 pc(s)

Type

E1.17.044.028.0

Documents & Downloads

Datasheet

Datasheet 741595 igus E1.17.044.028.0

Information

Information 741595 igus E1.17.044.028.0

Description

Modular, one-piece band, fold in the outer radius. Simply on length to short and can be extended.
Easy to attach to the surface.

This text is machine translated.
