Image similar

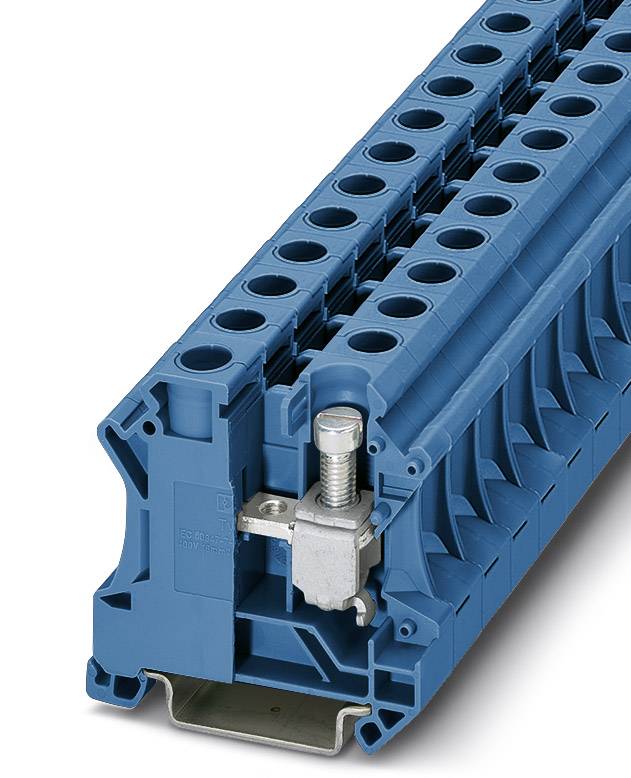

Installation terminal block UTI 16 BU 3075728 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Screws
Plug & Clip
Cross section (flexible) (max.)
16 mm²
Cross section (inflexible) (max.)
25 mm²
Nominal current - rounded value
76 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 2.90 / piece)
€ 144.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Serial continuity
- Connection
Screws
Plug & Clip
- Cross section (flexible) (min.)
6 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (min.)
6 mm²
- Cross section (inflexible) (max.)
25 mm²
- AWG (min.)
10
- AWG max.
4
- Clamp width
12.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Blue
- Nominal current
76 A
- Nominal current - rounded value
76 A
- Nominal voltage
400 V
- Stripping length (max.)
12 mm
- Manufacturer part #
3075728
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UTI 16 BU
- Dim
(L x W x H) 51 x 12.2 x 49.9 mm
- Width
12.2 mm
- Height
49.9 mm
- Length
51 mm
- Flammability rating
V2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 719580 Installation terminal block UTI 16 BU 3075728 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 719580 Installation terminal block UTI 16 BU 3075728 Phoenix Contact
Description
Installation terminal block, Special and hybrid connection, Cross section: 6 mm² - 25 mm², AWG: 10 - 4, Width: 12.2 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15
