interBär MAXI GU10 Serie 1000 1000-508.01 Silicone enclosure 35 W White
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 22.68
3
4% = € 0.89
€ 21.79
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 22.68 / piece)
€ 36.13
-37 %
€ 22.68
plus VAT.
Highlights & Details

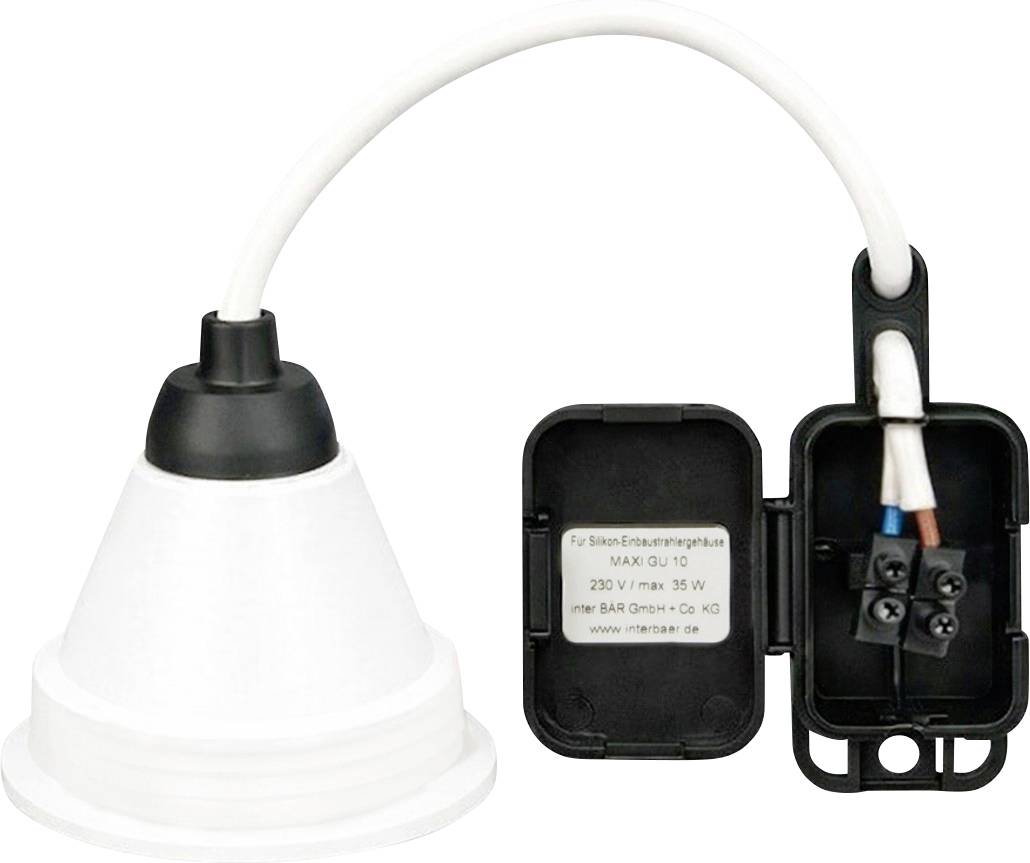

Silicon flush-mounted lamp housing MAXI GU10 series 1000
- Silicone housing completely rust-free
- UV, ozone and aging resistant
- Easy and quick installation and removal
- Excellent weather and sea climate resistant
- Can also be used in store and trade fair construction (decorative adjustment)
- Incl. Loosely enclosed GU10 socket with strain relief and mounting housing, assembled with approx. 200 mm insulated connection cable
- Suitable for GU10 halogen bulbs Ø 51mm, 230V, up to 35 watts or GU10 LED bulbs up to 5 watts
- Only suitable for halogen lamps that radiate heat to the front!
- This text is machine translated.
Technical specifications
- Dim
(Ø x H) 79 mm x 55 mm
- Product type
Silicone enclosure
- Factory colour
White
n.rel.
- No. of bulbs
1
- Type
Single
- Operating voltage
230 V
- Recess diameter
68 mm
- Recess depth
85 mm
- Cable length
200 mm
35 W
- Material
Silicone
- Height
55 mm
- (Ø)
79 mm
GU10
- Bulb type
HV halogen
- Light bulb included
Yes
- Outside Ø
79 mm
Documents & Downloads
Datasheet
Datasheet 1278009 interBär MAXI GU10 Serie 1000 1000-508.01 Silicone enclosure 35 W White
User & Safety Instructions
User & Safety Instructions 1278009 interBär MAXI GU10 Serie 1000 1000-508.01 Silicone enclosure 35 W White
Information
Information 1278009 interBär MAXI GU10 Serie 1000 1000-508.01 Silicone enclosure 35 W White
Description
The silicone case "Maxi" are also well suited in charge - and trade-fair use.
This text is machine translated.
This text is machine translated.
Features
- Installation diameter: 68 mm (standard dimensions also for UP sockets)
- Installation depth: Approx. 85 mm with socket
- Outer dimensions: 79 mm Ø, height approx. 55 mm (without socket)
Scope of delivery
- Silicone casing
- User manual.
Hints
No cool beam bulbs use
Also can be used for LED!
