IVT Inverter DSW-2000/24 V FR 2000 W 24 V DC - 230 V AC, 5 V DC Remote operation
EAN:
Part number:
Item no:
Number
Total (€ 637.82 / piece)
€ 637.82
plus VAT.
Highlights & Details

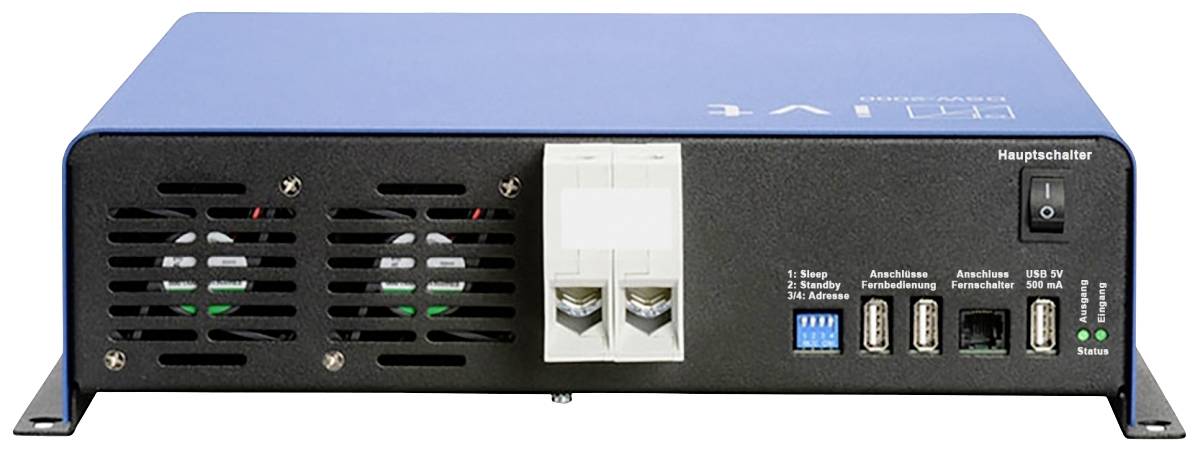

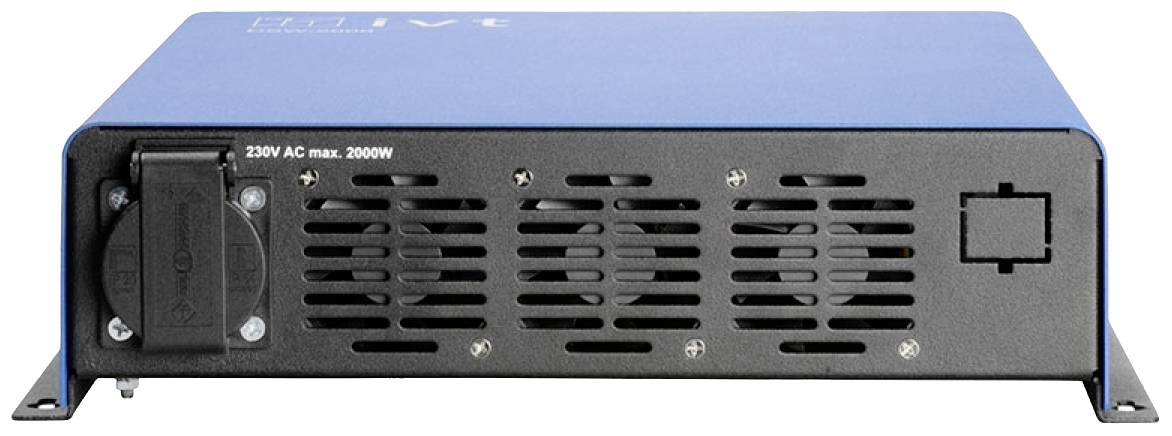

IVT inverter DSW-2000/24 V FR
- USB output
- With French plug connection connector type E
- Automatic restart at low voltage and overload
Technical specifications
- Temperature range: -25 to +60 °C
- USB charging current 500 mA
- Input voltage
22 - 32 V
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V AC
5 V DC
2000 W
- Input voltage
24 V DC
- Inputs
Screw terminals
- Output
France connectors
- Nominal load efficiency
90 %
- Outlets
1
- Output frequency
50 Hz
- Input current (max.)
35 A
- Remote control
Yes
- Weight
4800 g
- Cooling method
Fan
- Width
391 mm
- Height
88 mm
- Depth
334 mm
- Peak output power
4000 W
- Standby consumption
0,4 W
- Type
DSW-2000/24 V FR
- Features
Remote operation
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1286262 IVT Inverter DSW-2000/24 V FR 2000 W 24 V DC - 230 V AC, 5 V DC Remote operation
Description
230 V for out and about!
This sine wave inverter produces a pure AC voltage with sine wave. Typical applications are sensitive consumers, which react with faults to irregularities in the voltage supply.
Is characterized by specific reliability and efficiency and excellent sine wave quality. All the most important parameters are continuously monitored by the microcontroller-controlled electronics. This is the inverter are extremely reliable even under demanding conditions. Even overload or short-circuits will not cause any damage. In this way, the highly sensitive equipment such as televisions, computers, audio systems, etc. be operated absolutely fault-free. Even the high switch-on current of inductive loads is not a problem.
This text is machine translated.
This sine wave inverter produces a pure AC voltage with sine wave. Typical applications are sensitive consumers, which react with faults to irregularities in the voltage supply.
Is characterized by specific reliability and efficiency and excellent sine wave quality. All the most important parameters are continuously monitored by the microcontroller-controlled electronics. This is the inverter are extremely reliable even under demanding conditions. Even overload or short-circuits will not cause any damage. In this way, the highly sensitive equipment such as televisions, computers, audio systems, etc. be operated absolutely fault-free. Even the high switch-on current of inductive loads is not a problem.
This text is machine translated.
Features
- USB output
- Low voltage shutdown to protect the battery
- Voltaic separation
- Automatic restart
- Standby and sleep function
- Dynamic deep discharge protection
- Power-start function for consumers with high inrush current
- Output and temperature-controlled fan
- High-voltage cut-off
- Overvoltage and short circuit protection
- E approval
- On/off switch
Scope of delivery
- Inverter
- Remote cable with hollow plug
- User manual.
Hints
French plug connection connector type E
