Highlights & Details

USB-to-CAN V2 automotive 2xCAN

Cost-effective and extremely versatile

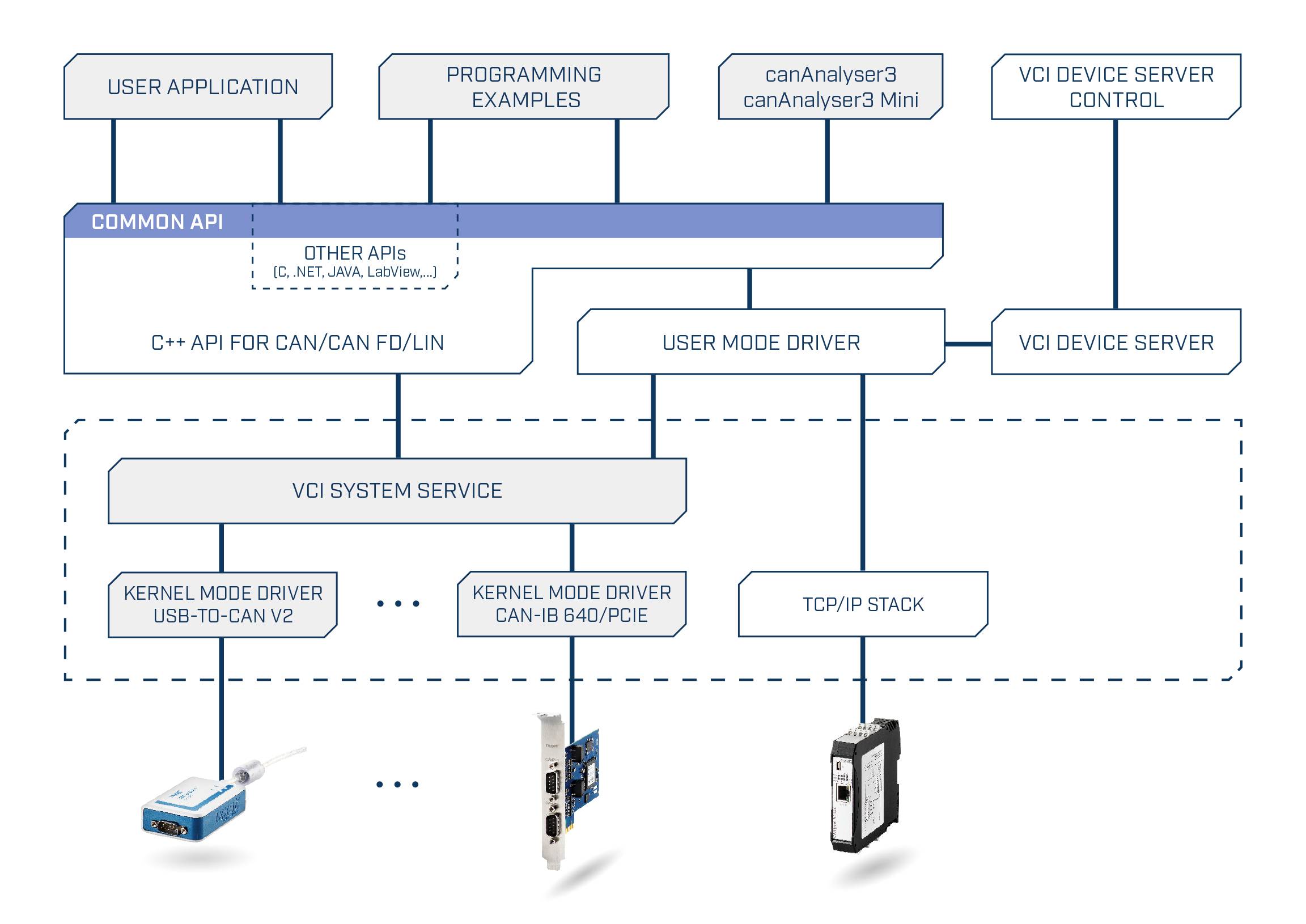

Uniform driver interface for the simple change of the PC interface type
For industrial and automotive applications
Voltaic separation

Technical specifications

PC bus interface: USB 2.0, Hi-Speed
Microcontroller: 32-bit
Can controller: Internal; CAN 2.0 A/B.
Can baud rates: 10 kBit/s ... 1 Mbit/s
Can high-speed transceiver TI SN65HVD251D
Can low speed transceiver: TJA1055T
LIN transceiver TJA1020
LIN protocol: V1.3 and V2.0
LIN baud rate: Max. 20 kbaud
Galvanic decoupling: 1000 VDC / 1 sec. 500 VAC / 1 min.
Fieldbus connection: According to CIA 303-1

Product type: CAN bus

Type: USB-to-CAN V2 automotive

Operating voltage: 5 V DC

Max. operating temperature: +70 °C °C

Min. operating temperature: -20 °C

Operating temperature: -20 up to +70 °C °C

Max. current consumption: 500 mA

Manufacturer part #: 1.01.0283.22042

Type: USB-to-CAN V2 automotive 2xCAN

Interfaces: USB, 2xCAN high speed, 1xCAN low speed, 1xLIN
RJ-45, galvanically isolated

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 2390275 Ixxat 1.01.0283.22042 USB-to-CAN V2 automotive CAN bus 5 V DC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2390275 Ixxat 1.01.0283.22042 USB-to-CAN V2 automotive CAN bus 5 V DC 1 pc(s)

Description

With up to two CAN high-speed channels, one CAN low-speed channel and one LIN channel, the USB-to-CAN V2 adapter covers a wide range of applications, both in industrial and automotive applications, depending on the device version.
