Name: Ixxat 1.01.0381.12001 USB-to-CAN/FD Standard CAN bus CAN bus I/O number: 1 1 pc(s)
Brand: Ixxat
SKU: 3593586
Availability: InStock

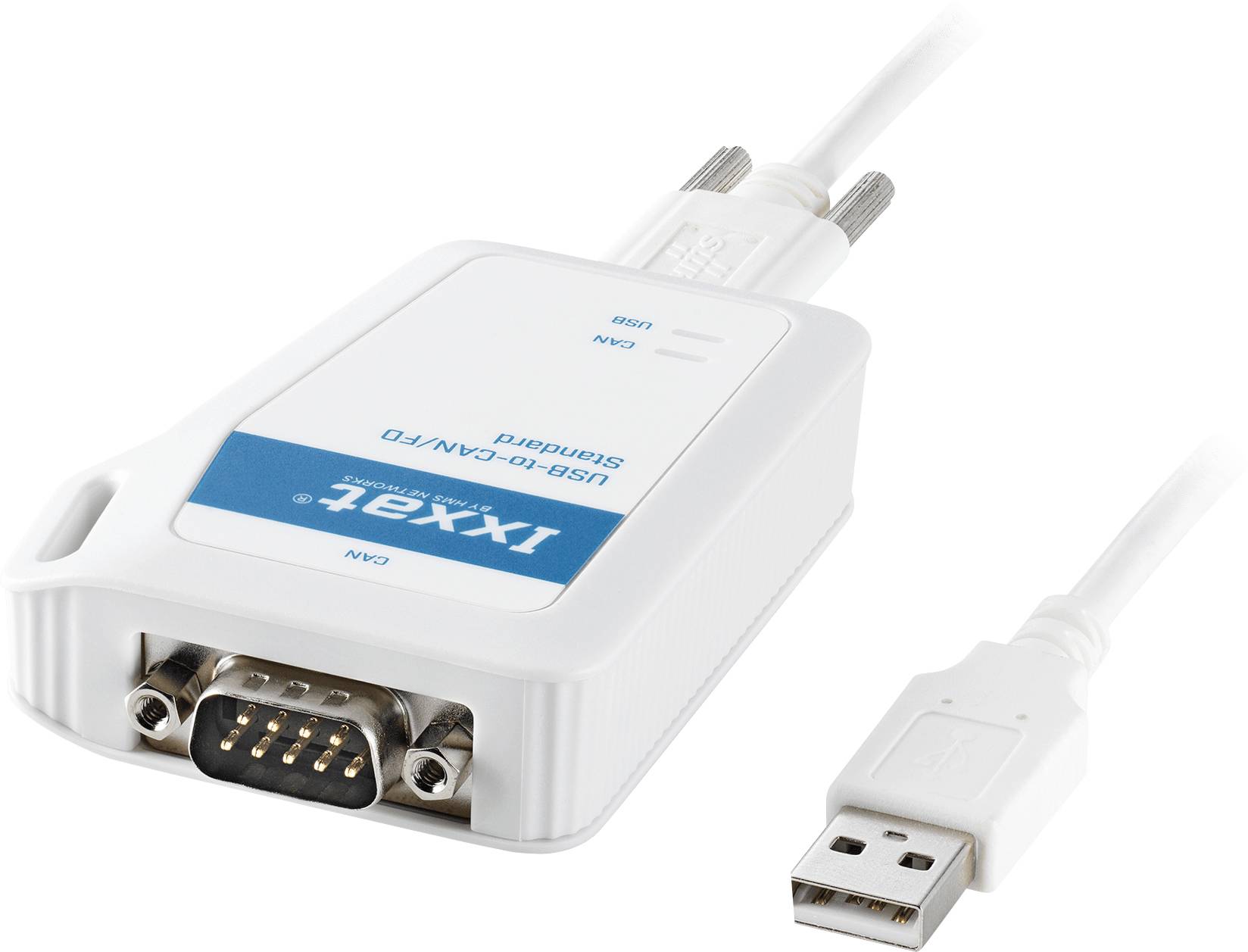

A USB-to-CAN adapter with a USB plug connected to a CAN interface, used for linking USB devices to a Controller Area Network.

Datasheet (PDF)

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 409.00 / piece)

€ 409.00

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

CAN and CAN FD interface for high-speed USB 2.0 with galvanic isolation and D-sub connection

High quality and versatile connectivity for CAN/CAN FD-based networks
High data throughput combined with low latency
CAN FD connection up to 8 Mbit/s via D-Sub 9 plug
Galvanic isolation
Powerful programming interface for Windows (VCI) as well as for Linux (socketCAN or ECI), QNX and VxWorks (ECI)

Technical specifications

CAN FD bit rates: Arbitrary rate of up to 1 Mbit/s, data rate up to 8 Mbit/s.
CAN bit rates: 10 kBit/s to 1 Mbit/s.
USB connector: Type C device connector; Type C cable and Type A cable with mounting screws
Galvanic decoupling: 1 kV DC for 1 min.

Product type: CAN bus

Interfaces: CAN bus

Type: USB-to-CAN/FD Standard

I/O number: 1

Manufacturer part #: 1.01.0381.12001

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3593586 Ixxat 1.01.0381.12001 USB-to-CAN/FD Standard CAN bus CAN bus I/O number: 1 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3593586 Ixxat 1.01.0381.12001 USB-to-CAN/FD Standard CAN bus CAN bus I/O number: 1 1 pc(s)

Description

The Ixxat USB-to-CAN/FD standard adapter with a CAN/CAN FD channel and galvanic isolation offers a simple and economical possibility of connecting a computer to a CAN/CAN FD bus network. It is a very reliable tool for CAN FD applications, for example in the field of test, development, maintenance or control applications.
The PC is connected via a USB 2.0 hi-speed port (480 Mbps), while the unit is connected via a D-sub connector on the CAN/CAN-FD bus side. The galvanic insulation provides a reliable protection of the PC against voltage surges and voltage spikes.
A comprehensive driver and software package can be downloaded free of charge from the HMS website.

This text is machine translated.
