Ixxat 1.01.0383.22002 USB-to-CAN/FD Pro CAN bus USB 1 pc(s)

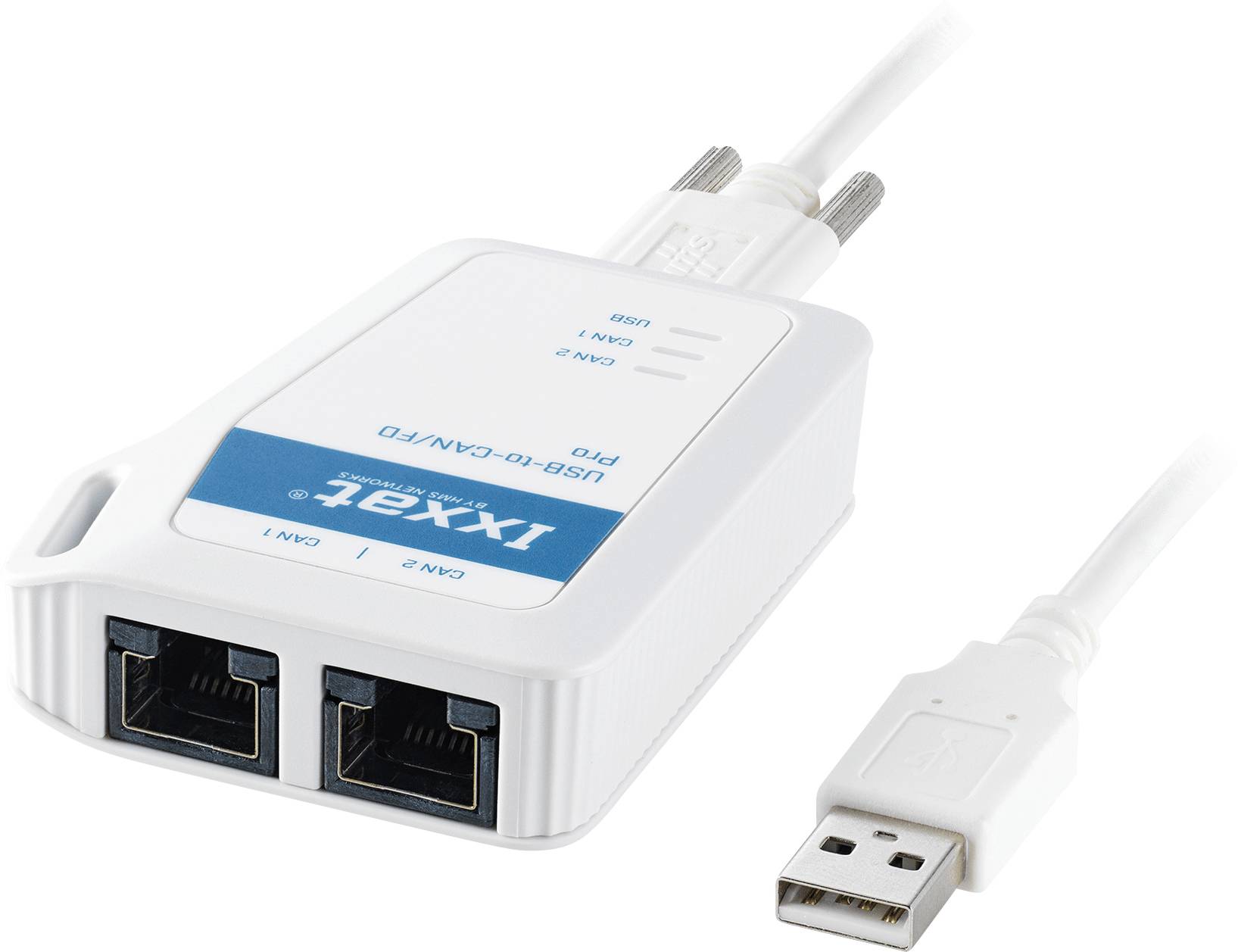

'Ixxat USB-to-CAN Pro' adapter with two CAN ports and a USB connector, used for connecting CAN networks to a PC via USB.
Datasheet (PDF)
Part number:
Item no:
Dispatches on Mon 9 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 799.00 / piece)
€ 799.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

CAN and CAN FD interface adapter for high speed USB 2.0 with two channels, galvanic isolation and RJ45 connection

  • High quality and versatile connectivity for CAN/CAN FD-based networks
  • 2x CAN FD connection with up to 8 Mbit/s via RJ45 plug
  • Galvanic isolation
  • 2 x RJ45 on D-Sub 9 adapter cable included in delivery
  • Powerful programming interface for Windows (VCI) as well as for Linux (socketCAN or ECI), QNX and VxWorks (ECI)

Technical specifications

  • CAN FD bit rates: Arbitrary rate of up to 1 Mbit/s, data rate up to 8 Mbit/s.
  • CAN bit rates: 10 kBit/s to 1 Mbit/s.
  • USB connector: Type C device connector; Type C cable and Type A cable with mounting screws
  • Galvanic decoupling: 1 kV DC for 1 min.
Product type

CAN bus

Interfaces

USB

Type

USB-to-CAN/FD Pro

Manufacturer part #

1.01.0383.22002

Documents & Downloads

Datasheet

Datasheet 3593588 Ixxat 1.01.0383.22002 USB-to-CAN/FD Pro CAN bus USB 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3593588 Ixxat 1.01.0383.22002 USB-to-CAN/FD Pro CAN bus USB 1 pc(s)

Description

The Ixxat USB-to-CAN/FD Pro adapter with two CAN/CAN-FD channels and galvanic isolation offers a simple and economical possibility to connect a computer to a CAN/CAN FD bus network. It is a very reliable tool for CAN FD applications, for example in the field of test, development, maintenance or control applications.
The PC connection is made via a USB 2.0 hi-speed port (480 Mbit/s), while the device on the CAN/CAN-FD bus side is connected via RJ45 plugs. The galvanic insulation provides a reliable protection of the PC against voltage surges and voltage spikes.
A comprehensive driver and software package can be downloaded free of charge from the HMS website.

This text is machine translated.

Scope of delivery

  • 2 x RJ45 on D-Sub 9 adapter cable
