JouJye JJ-GP-101M2-Br 1 port M.2 controller PCIe x4 Compatible with: 2230, 2242, 2260, 2280 incl. slot panel
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 43.69 / piece)
€ 43.69
plus VAT.
Highlights & Details
JJ-GP-101M2-Br for 1 x M.2 NVMe SSD
- PCIe adapter with slot plate at full height and low profilePCIe 3.0 interfacePCIe4.0 x 4 NVMe SSDPCIe x 4 bus slotPCI Express x 4 Lane host adapterLockable with keys
Technical specifications
- Product type
M.2 controller
- Slot
PCIe x4
- Compatible with
2230
2242
2260
2280
- Specs
incl. slot panel
- Port
1 port
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2799136 JouJye JJ-GP-101M2-Br 1 port M.2 controller PCIe x4 Compatible with: 2230, 2242, 2260, 2280 incl. slot panel
User & Safety Instructions
User & Safety Instructions 2799136 JouJye JJ-GP-101M2-Br 1 port M.2 controller PCIe x4 Compatible with: 2230, 2242, 2260, 2280 incl. slot panel
Description

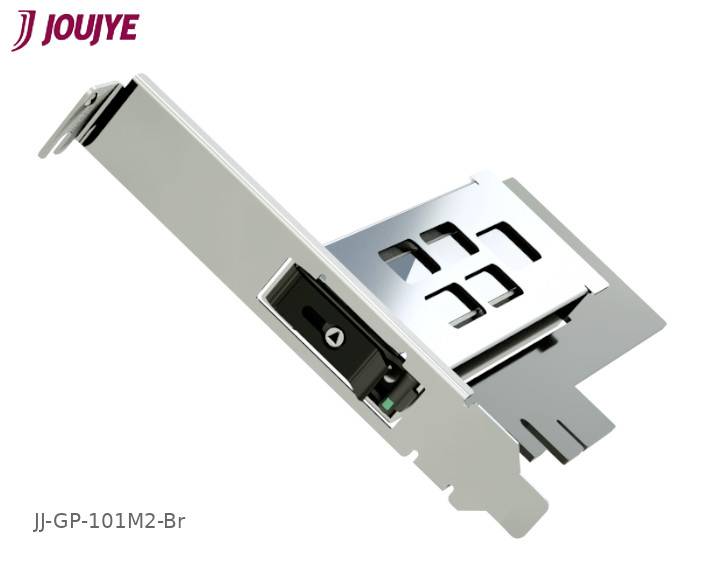

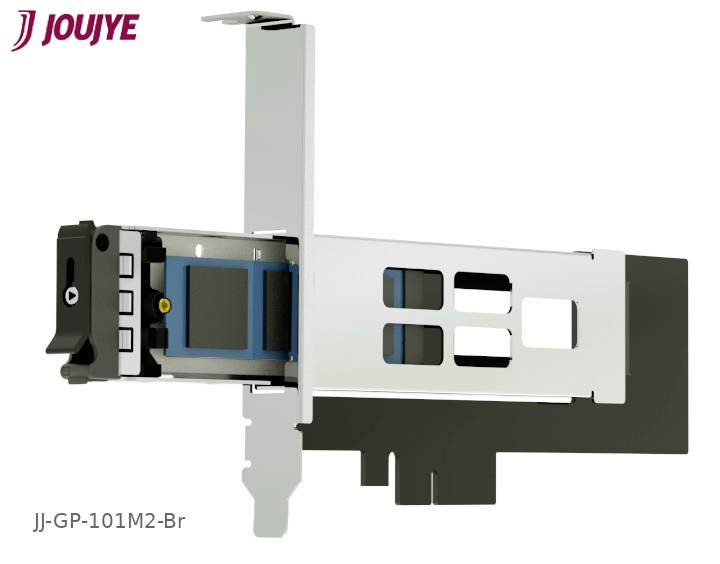

The ultimate M.2 NVMe SSD caddy, the simplest way to enjoy the high NVME performance of PCIe 3.0 (32Gbps), or PCIe 4.0 (64Gbps) through the PCIe bus (x4, x8 or x16) of the mainboard. The functional tray enables easy change of the installed NVMe drive. With the LED display you always have a view on the status of the built-in M.2. It supports 1x PCIe 3.0 / PCIe 4.0 M.2 SSD and is compatible with the specifications of the M.2 M-Key (PCIe 3.0 x4/PCIe 4.0 x4), or B+M-Key (PCIe 3.0 x2). The unique design with adjustable spacing bolts and various fixing options allows the installation of the M.2 NVMe SSD in the different lengths 2230 / 2242 / 2260 and 2280 availableM.2 is guided on the tray with an angle of 45° to the M-Key plug and fixed by screwing on the bolts. M.2 NVMe SSD is thus securely installed. In addition, a metal lock protects the hard disc against unauthorized persons.Both frame and insert of the JJ-GP-101M2-Br NVMe are made of stainless material. The front panel, as well as the heat sink are made of aluminum. The anti-vibration springs located on the tray provide for a safe and stable hold of the installed M.2 SSDEquipped with 1 x PCIe slot at full height and 1x at half height. This makes it very easy to use for desktop, server, mini ITX etc.The use of a high-quality LED (high light output) and fiber optic guide within the JJ-GP-101M2-Br enable a clear status display from outside. (Status ON: Lights up blue / Status ACCESS: Flashes purple / Status NO SSD INSTALLED: Off) This visual solution simplifies in practice the testing of the system enormously compared to an installation of M.2 directly on the motherboard.Optimum air circulation is ensured by the generous ventilation holes on the frame and tray.The cooling element made of aluminum as well as the heat conduction pad complement and reinforce the heat dissipation once more.The stainless steel springs route the EMI to the frame and are grounded to the housing, thereby avoiding static interference. In addition, the springs help to reduce vibrations during operation, or transport.
This text is machine translated.
This text is machine translated.
Scope of delivery

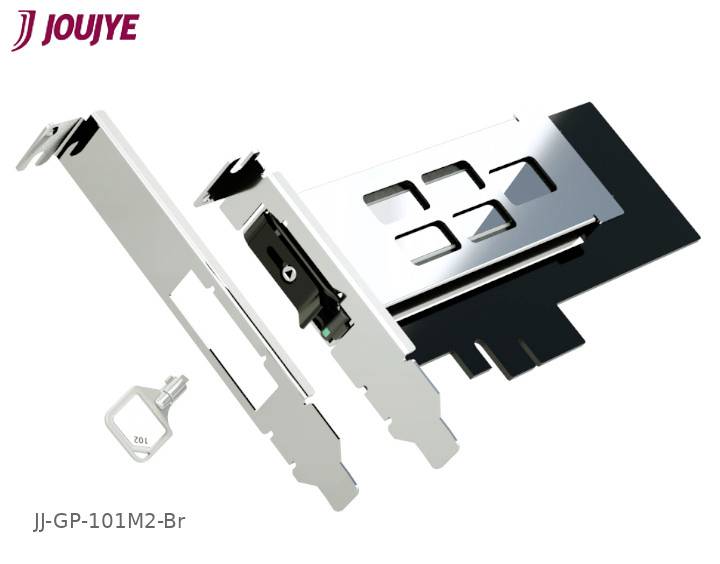

- Incl. 1x full-height slot bracket and 1x half-height slot bracket
Hints
JJ-GP-101M2-Br connects M.2 via PCIe bus, but the NVMe hot-swap function in the PCIe bus is limited and depends on the motherboard.Only if the PCIe Bus on the motherboard supports the hot swap function can the device offer the NVMe hot swap function.If NOT, PLEASE SWITCH OFF the system BEFORE replacing the installed NVME M.2 SSD to avoid unexpected problems with the system!
