Joy-it Barebone CR-APC002 AMD Ryzen 5 8500G 5 GHz AMD AMD Radeon 740M CR-APC002
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 419.33 / piece)
€ 419.33
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Joy-it CR-APC002 Barebone
- AMD Ryzen 5 8500G 6 core(s) / max. 5 GHz
- RAM: 0 GB DDR5 RAM
- AMD AMD Radeon 740M
- w/o OS
Technical specifications
- Onboard mainboard connections:
- 1 x 24 pin ATX main power connector
- 1 x 8-pin ATX 12V power connection
- 1 x CPU fan connection
- 2 x system fan connections
- 1 x addressable LED strip headers
- 1 x RGB LED strip header
- 1 x M.2 base 3 connections
- 4 x SATA 6Gb/s connections
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 connections
- 2 x USB 2.0/1.1 connections
- 1 x Trusted Platform Module header (only for GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module)
- 1 x clear CMOS jumper
- External bays: 1 x 5.25 inch
- Internal slots: 2x 3.5", 2x 2.5"
- Product type
Barebone
- Model
CR-APC002
- CPU series
AMD Ryzen 5
- CPU
AMD Ryzen 5 8500G
- Processor/type
8500G
- Processor cores (No.)
6 x
- CPU speed
3.5 GHz
- CPU turbo clock speed (max.)
5 GHz
- No. of processor P cores
6
- CPU performance core base clock speed
3.5 GHz
- CPU performance core boost clock
5 GHz
0 GB
- RAM type
DDR5 RAM
- No. of memory slots
2
- RAM / Max. upgrade
128 GB
- Onboard graphics card
Yes
- Onboard graphics card (GPU manufacturer)
AMD
- Onboard graphics card (version)
AMD Radeon 740M
- Dedicated graphics card
No
- HDD capacity (total)
0 GB
- Hard drive
0 GB
- Drive
w/o hard drive
- Keyboard layout
Keyboard not included
- No. of DisplayPort
1 x
- No. of Gigabit LANs
1 x
- No. of HDMI ports
1 x
- No. of PS/2 ports
1 x
- No. of USB A 2.0 ports
6 x
- No. of USB type A 3.1 / 3.2 1st Gen
1 x
- No of. USB type A 3.1 /3.2 2nd gen
2 x
- No. of USB type A 3.0 ports
2 x
- Interfaces
Audio 7.1 (3.5 mm jack)
- Factory colour
Black
- Width
175 mm
- Height
407 mm
- Depth
368 mm
- Weight
7100 g
- PSU power
550 W
- Features
w/o CPU
w/o HDD
w/o RAM
- Operating system (Version)
w/o OS
Documents & Downloads
Datasheet
Datasheet 3338146 Joy-it Barebone CR-APC002 AMD Ryzen 5 8500G 5 GHz AMD AMD Radeon 740M CR-APC002
User & Safety Instructions
User & Safety Instructions 3338146 Joy-it Barebone CR-APC002 AMD Ryzen 5 8500G 5 GHz AMD AMD Radeon 740M CR-APC002
Description
This PC Barebone is the ideal basis for your new PC complete system.
Simply use already existing graphic cards, hard drives/SSD and RAM from your old device or equip it with the new hardware of your choice.

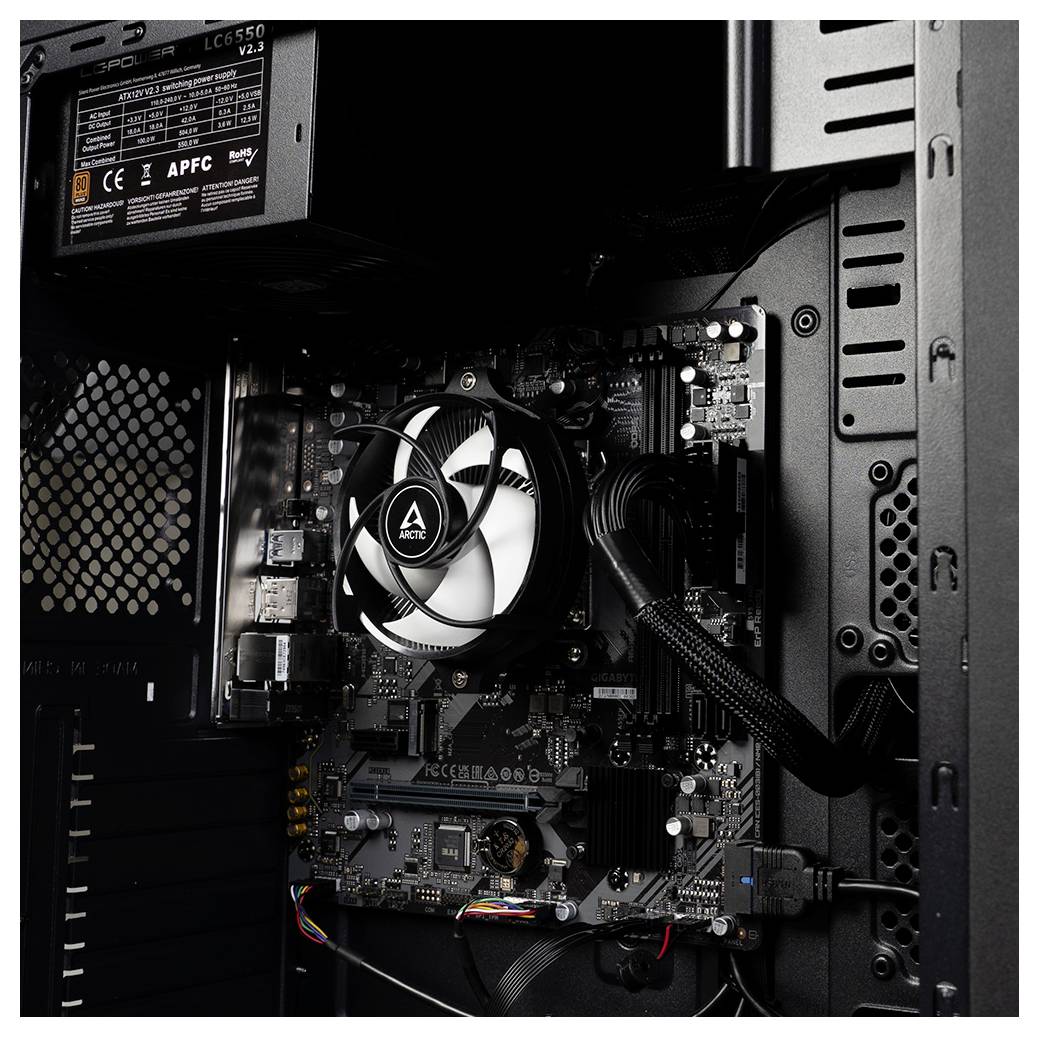

In the classically discreet tower the "All-rounder" mainboard GA-A620M-H is already mounted and cabled.
The cycle is given by a AMD Ryzen5 8500G CPU, which is clocked with up to 6x 5.0 GHZ and is easily supplied by 550 Watt power supply.
This text is machine translated.
Simply use already existing graphic cards, hard drives/SSD and RAM from your old device or equip it with the new hardware of your choice.
In the classically discreet tower the "All-rounder" mainboard GA-A620M-H is already mounted and cabled.
The cycle is given by a AMD Ryzen5 8500G CPU, which is clocked with up to 6x 5.0 GHZ and is easily supplied by 550 Watt power supply.
This text is machine translated.
Hints
HDMI® is a registered trademark of HDMI Licensing LLC
Image may differ from actual product.
