Joy-it CNC controller card
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.88
3
4% = € 1.17
€ 25.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.88 / piece)
€ 26.88
plus VAT.
Only 9 Piece(s) available
Highlights & Details

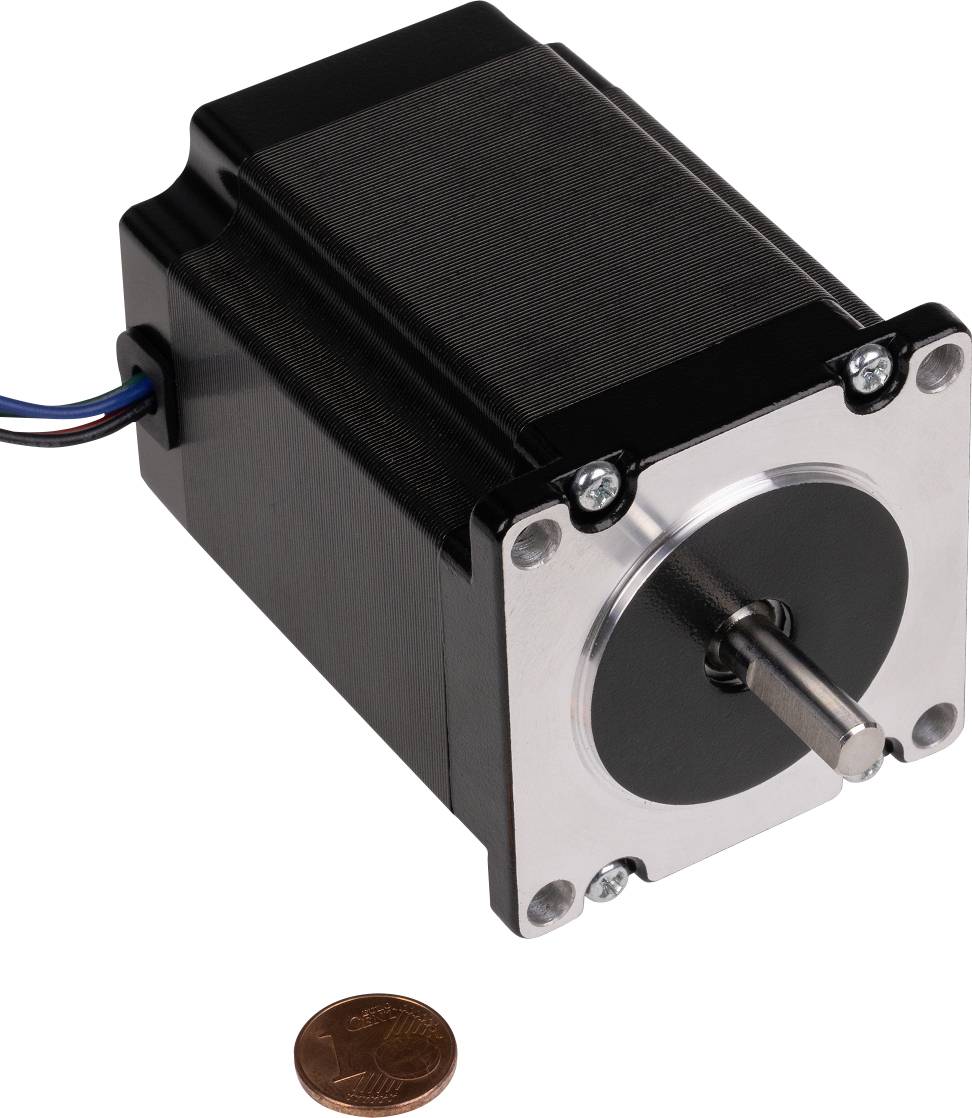

joy-it , NEMA-23 stepper motor, 1.32 Nm, 1A, 6.5V
- Holding torque: 1.32 Nm
- Shaft dimensions: Diameter 6.35 (5.85 at flat point) mm, length 20mm
- Nominal voltage: 6.5 V
- Nominal current 1.0 A.
- Locking torque 0.07 Nm
Technical specifications
- Shaft dimensions Ø 6.35 x 20 mm (5.85 mm flat spot)
- Connection 4 cables
- Dimensions 56 x 56 x 76 mm
- Delivery scope NEMA23 stepper motor, connection cable
- Holding torque 1.32 Nm
- Nominal voltage 6.5 V
- Nominal current 1.0 A
- Step angle 1.8 ° ±5 %
- Number of phases 2
- Phase resistance 6.5 Ω
- Phase inductance 20 mH
- Insulation resistance 100 MΩ min. @500 V DC
- Insulation class B (130 °C)
- Moment of inertia 460 g
- cm²
- Locking torque 0.07 Nm
- allowed Temperature range: -10 °C – 50 °C
- Operating voltage
6.5 V
- Height
56 mm
- Length
76 mm
- Width
56 mm
- Dim
(L x W x H) 76 x 56 x 56 mm
- Phases
2
- Manufacturer part #
NEMA23-05
- Type
NEMA23-05
- Current consumption
1 A
- Product type
CNC controller card
Documents & Downloads
Datasheet
Datasheet 2355879 Joy-it CNC controller card
User & Safety Instructions
User & Safety Instructions 2355879 Joy-it CNC controller card
Description
Our NEMA23 series are high torque stepper motors. With its high performance, this motor is ideally suited for tasks in the fields of automation, CNC (e.g. Milling, etc.) or robotics.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Motor with connection cable
