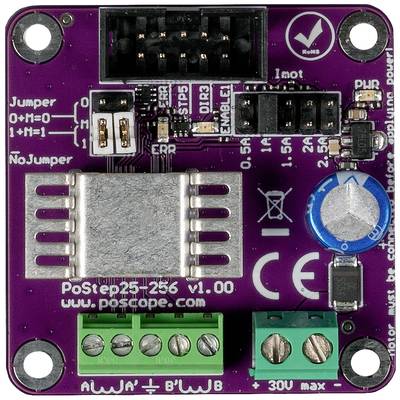

Joy-it PoStep25-256 Stepper motor drive 2.5 A Screw terminal
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 23.52
3
4% = € 1.02
€ 22.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 23.52 / piece)
€ 23.52
plus VAT.
Only 7 Piece(s) available
Highlights & Details
PoStep 25-256 stepper motor driver, 0.5 to 2.5A, 9 to 30 V, max. 256 microsteps
- Simple setting of the motor current via jumperCompatible with 4-, 6- and 8-wire stepper motorsLED operating, error and switch-on displaySmoother and quieter movement of the stepper motorImproved torque
Technical specifications
- Supply voltage: 9 - 30 V DC.Phase current 0.5 - 2.5 AMicro-step modes: 1, 2, 4, 16, 32, 64, 128, 256Logic voltage 3.3 V and 5 V compatibleMax. Step frequency 500 kHzOperating temperature: 0 - 70°CProtection functions: Supply voltage reverse polarity protection, undervoltage switch-off, overcurrent protection, open load detection, thermal cut-off, Output for error condition
- Interfaces
Screw terminal
- Length
18 mm
- Width
18 mm
- Dim
(L x W) 18 mm x 18 mm
- Manufacturer part #
PoStep25-256
- Type
PoStep25-256
- Max. phase load
2.5 A
- Product type
Stepper motor drive
Documents & Downloads
Datasheet
Datasheet 2584613 Joy-it PoStep25-256 Stepper motor drive 2.5 A Screw terminal
User & Safety Instructions
User & Safety Instructions 2584613 Joy-it PoStep25-256 Stepper motor drive 2.5 A Screw terminal
Description
The PoStep25-256 is a high-performance capable, cost-effective stepper motor driver for implementing an intelligent stepper motor control - Smooth tune. The driver has advanced architecture and surface mounting technology to achieve exceptional power density.
