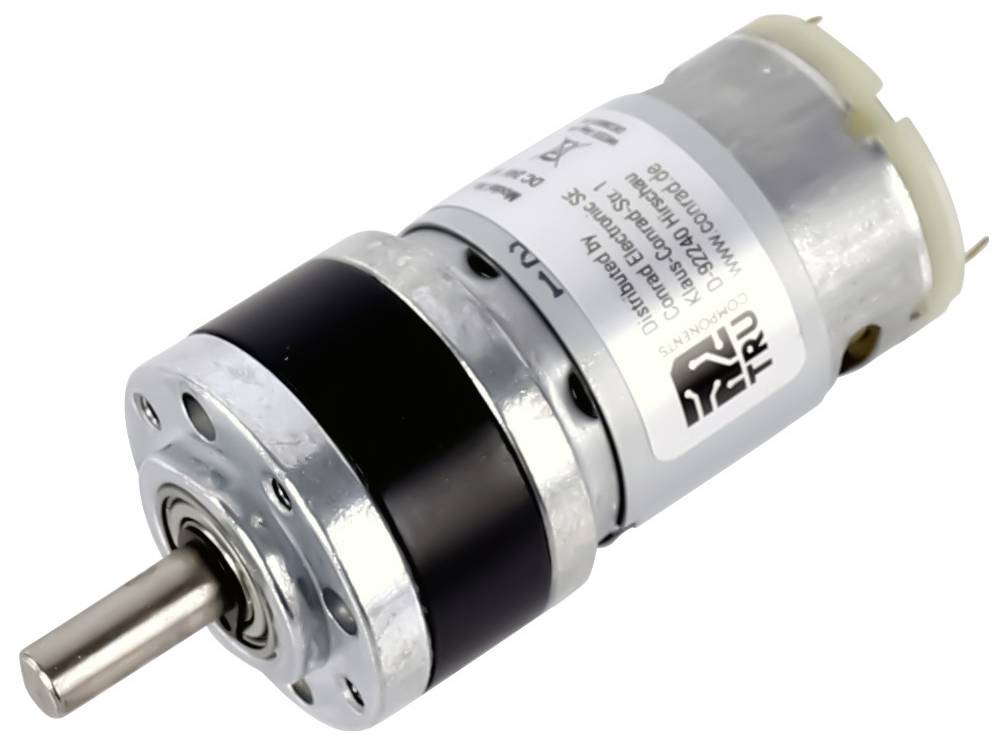

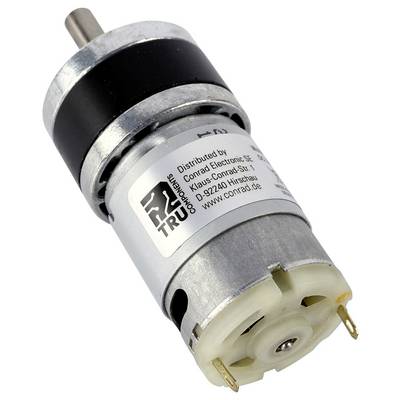

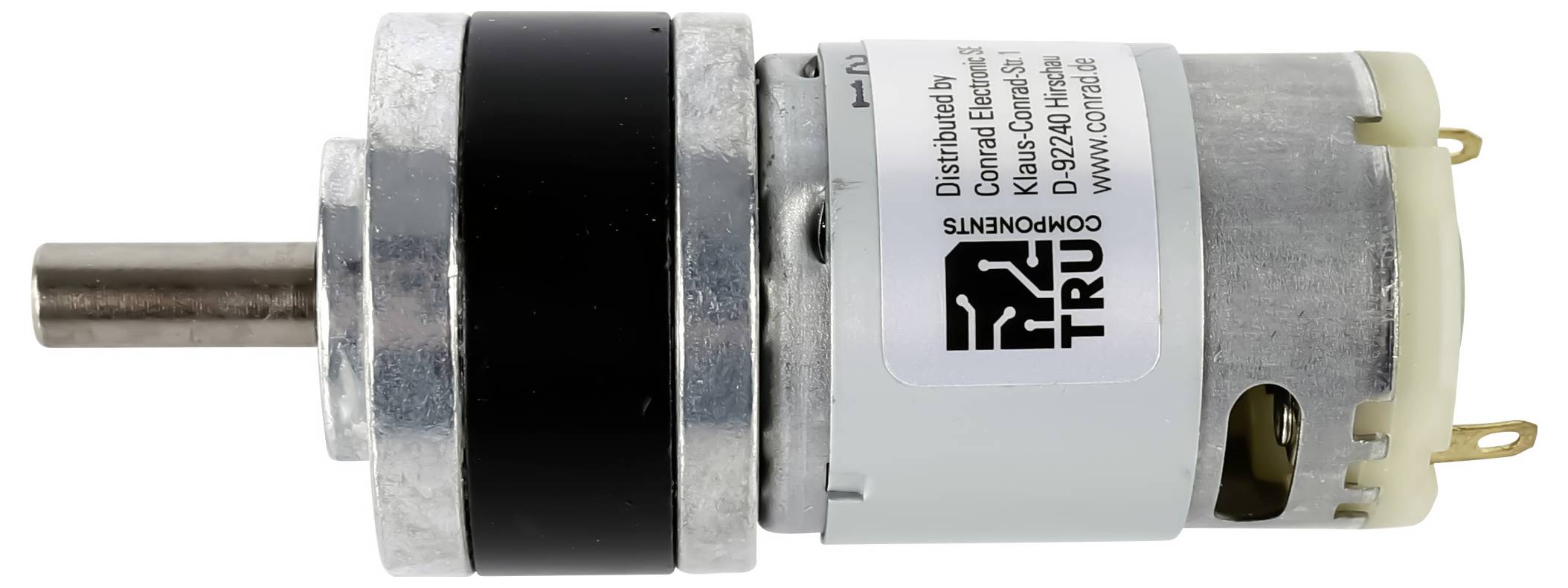

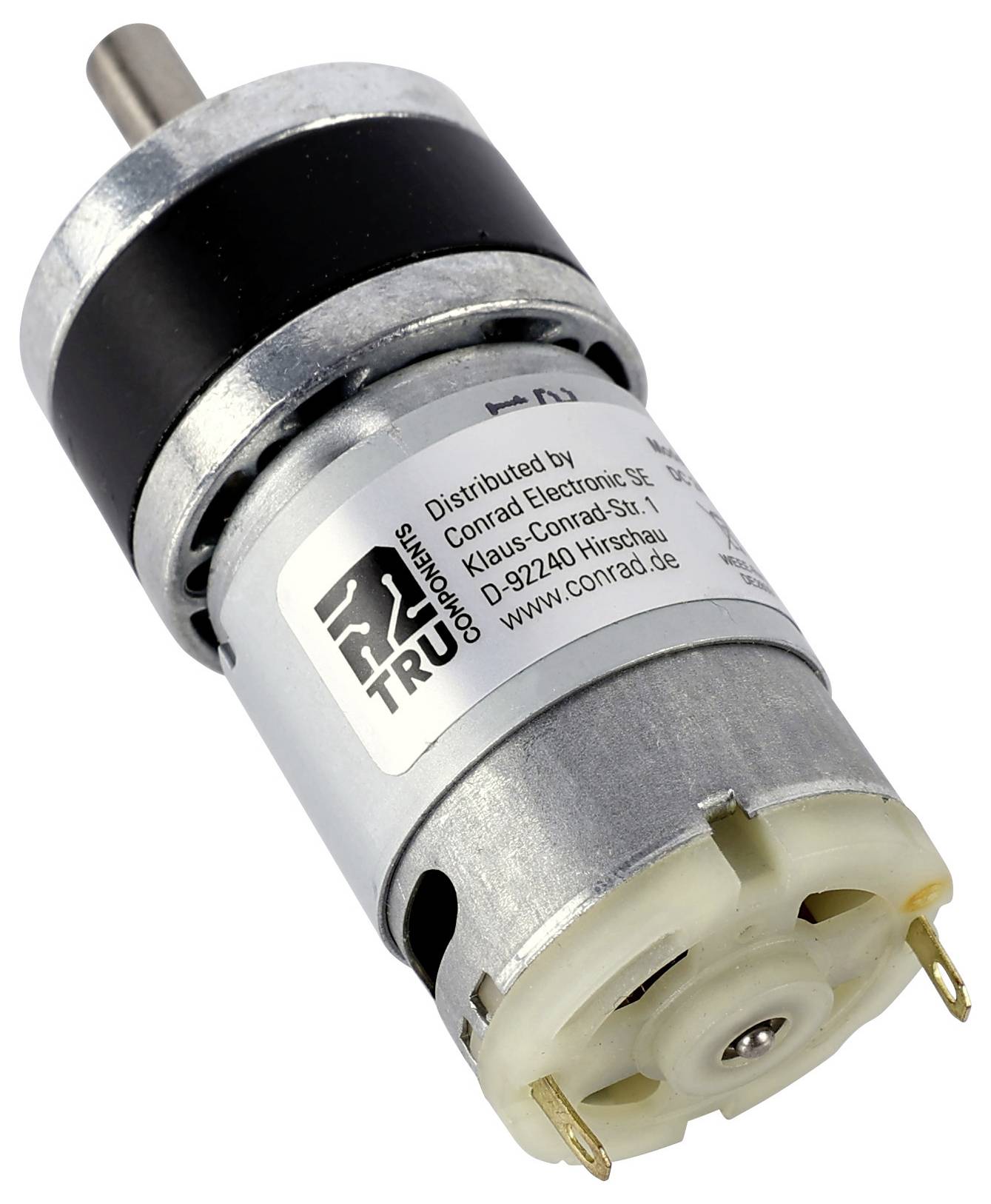

TRU COMPONENTS DC gearmotor TC-NPG2404005 TC-13609504 24 V DC 0.6 A 0.034 Nm 1043 U/min Shaft diameter: 6 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 38.65 / piece)
€ 38.65
plus VAT.
Highlights & Details
DC Planetary gear motor 24 V DC 0.034 Nm
- DC planetary gear modor without encoder
- Nominal voltage: 24 V DC
- Nominal current: 0.6 A
- Shaft diameter: 6 mm
- Norminal RPM: 1043 U/min
- Rotation direction: CCW
Technical specifications
- Type
TC-NPG2404005
- Nominal voltage
24 V DC
- Nominal current
0.6 A
- Nominal current - rounded value
600 mA
- Nominal RPM
1043 U/min
- Manufacturer part #
TC-13609504
- Type
Without encoder
- Shaft Ø
6 mm
- Nominal torque
0.034 Nm
- Product type
DC gearmotor
Documents & Downloads
Datasheet
Datasheet 3402376 TRU COMPONENTS DC gearmotor TC-NPG2404005 TC-13609504 24 V DC 0.6 A 0.034 Nm 1043 U/min Shaft diameter: 6 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3402376 TRU COMPONENTS DC gearmotor TC-NPG2404005 TC-13609504 24 V DC 0.6 A 0.034 Nm 1043 U/min Shaft diameter: 6 mm 1 pc(s)
