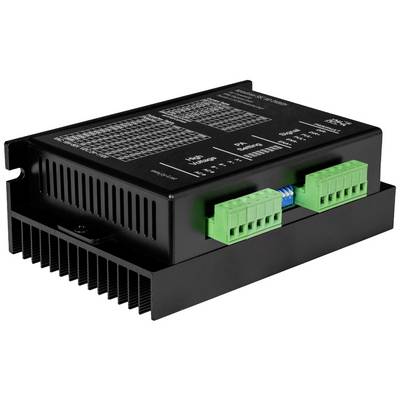

Joy-it SBC-MD-DM860H Stepper motor drive
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 40.33 / piece)
€ 40.33
plus VAT.
Technical specifications
- Output current 2.4 - 7.2 A
- Voltage 18 – 80 VAC/24 – 110 VDC
- Micro step resolution 400 - 25600 PPR
- Pulse frequency 0 – 200 kHz
- Signal input: Single-ended, pulse / direction, 5 - 24 VDC level COM-compatible
- Protection functions: Overcurrent protection, overvoltage protection, undervoltage protection
- Example of compatibility with Joy-it stepper motors: NEMA23-01, NEMA23-02, NEMA34-01, NEMA34-02

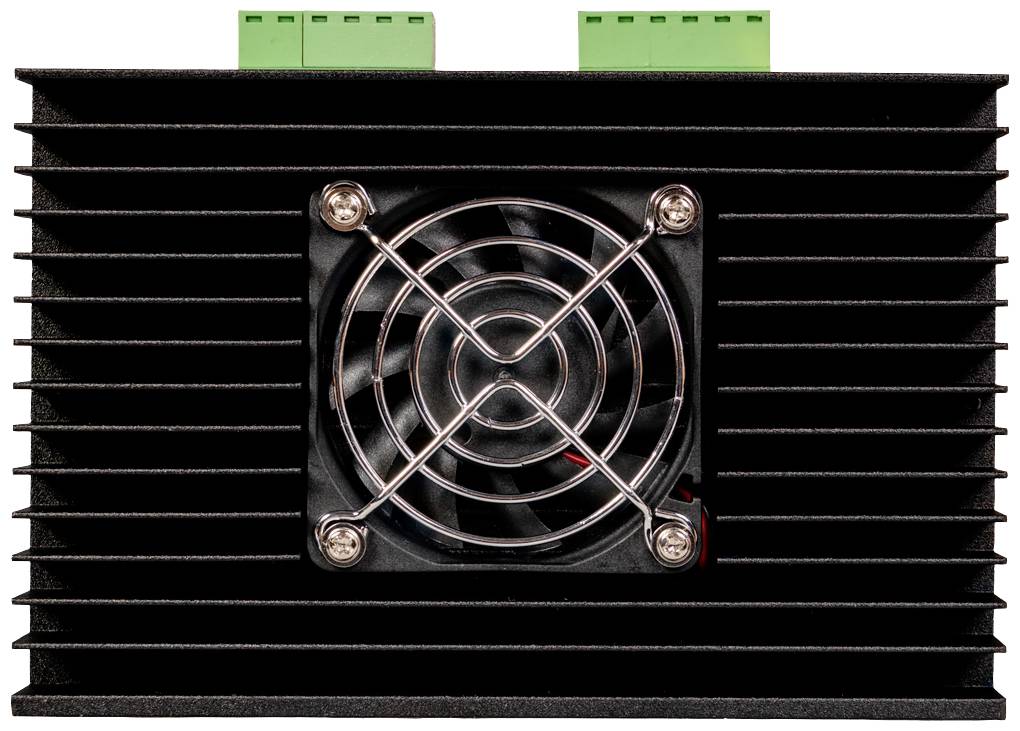

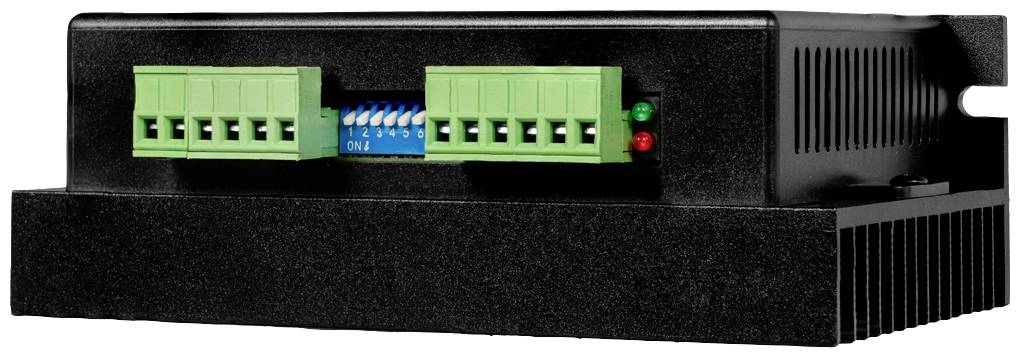

- Special features: DIP switch configuration; active cooling
- Height
53 mm
- Length
109 mm
- Width
150 mm
- Dim
(L x W x H) 109 x 150 x 53 mm
- Phases
2
- Manufacturer part #
SBC-MD-DM860H
- Type
SBC-MD-DM860H
- Product type
Stepper motor drive
Documents & Downloads
Datasheet
Datasheet 2999123 Joy-it SBC-MD-DM860H Stepper motor drive
User & Safety Instructions
User & Safety Instructions 2999123 Joy-it SBC-MD-DM860H Stepper motor drive
Description

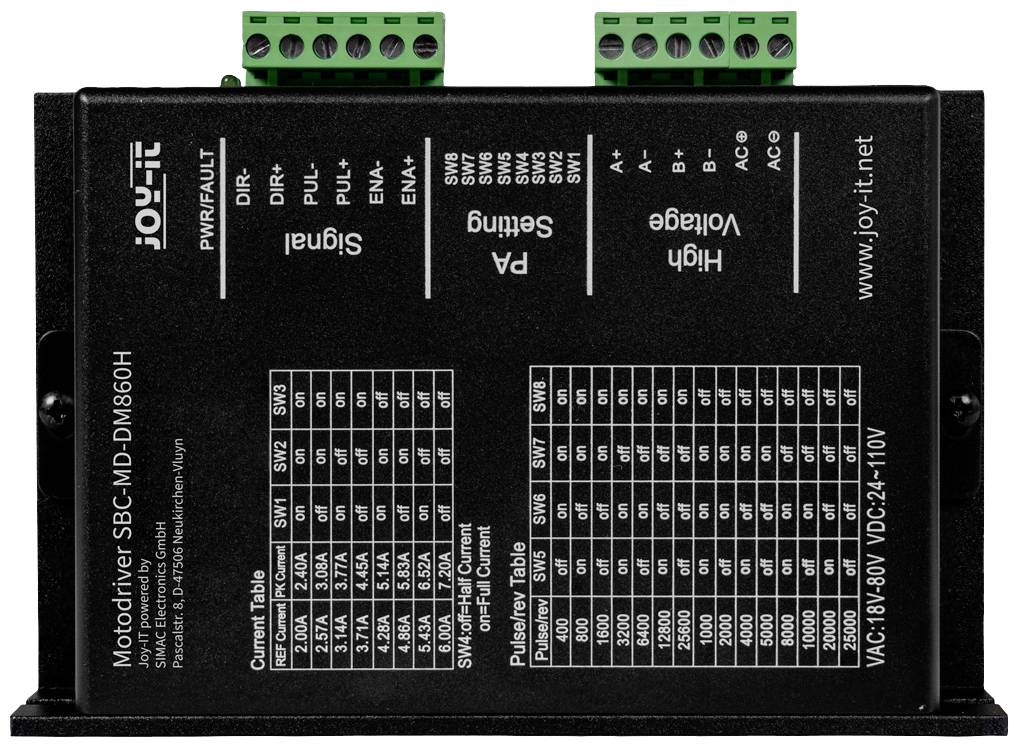

The DM860H is a state-of-the-art stepper motor driver developed to ensure smooth and precise control of bipolar stepper motors. This driver is COM-compatible with a wide range of stepper motors and offers an optimum solution for demanding applications. Easy-to-operate DIP switches enable fast configuration of the microstep resolution and current strength.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Motor driver
