Joy-it Module ()
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 17.99 / piece)
€ 17.99
incl. VAT
14-day return policy included
Highlights & Details

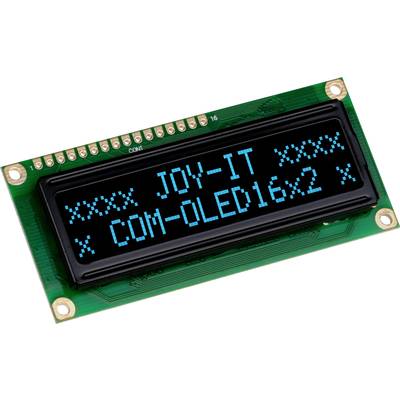

OLED character display with 2 lines of 16 digits each
- OLED display , color blue on black
- Interface: SPI and 8bit parallel
- Control chip: IST0010
- High contrast, bright, high viewing angle
- 16 x 2 character positions (each 5 x 8 points or 5 x 10 points per character) total 100 x 16 p.
Technical specifications
- Supply voltage 3 - 5 V.
- Supply current 31 mA
- Logic level 0.2 * VDD - VDD
- Brightness type. 100-120 cd/m²
- Contrast 2000 : 1
- Angle of view larger than 175 °
- allowed Operating temperature minus 40 degrees C to 80 C.
- Available fonts
- English, German, Russian, Japanese
- Product type
Display
- Display technology
OLED
- Interfaces
SPI
- Brightness (min)
100 cd/m²
- Brightness (max.)
120 cd/m²
- Static contrast ratio
2000 : 1
- Length
36 mm
- Width
80 mm
- Height
10 mm
Documents & Downloads
Datasheet
Datasheet 2348033 Joy-it Module ()
User & Safety Instructions
User & Safety Instructions 2348033 Joy-it Module ()
Description
Through the OLED technology this display has a high contrast and a high brightness, as well as a viewing angle of over 175°.
Through its interfaces, it provides a wide range of applications: By soldering resistors on the back of the board, these interfaces can be selected. This is a serial interface (which can be used with SPI) and two parallel interfaces (8080 / 6800).
The design is compatible with displays used too frequently in industry - with small changes in the software, these can then be upgraded with OLED technology.
A pin strip is also included in the delivery.
This text is machine translated.
Through its interfaces, it provides a wide range of applications: By soldering resistors on the back of the board, these interfaces can be selected. This is a serial interface (which can be used with SPI) and two parallel interfaces (8080 / 6800).
The design is compatible with displays used too frequently in industry - with small changes in the software, these can then be upgraded with OLED technology.
A pin strip is also included in the delivery.
This text is machine translated.
Scope of delivery
- Display, pin bar
