Name: Joy-it MQ135V2 Gas detector 1 pc(s)
Brand: Joy-it
SKU: 3802251
Availability: InStock

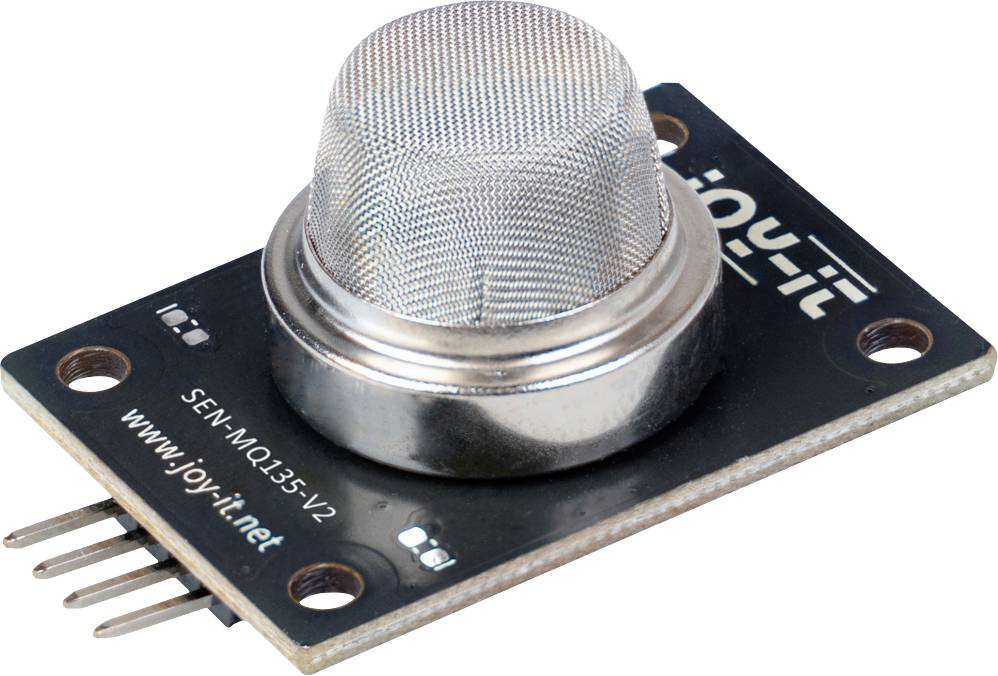

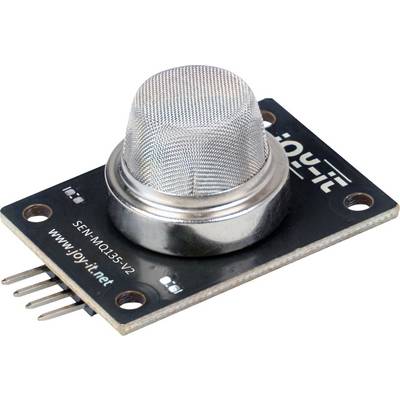

A MQ-135 gas sensor module on a black circuit board with a silver mesh sensor dome and four pin connectors.<br>

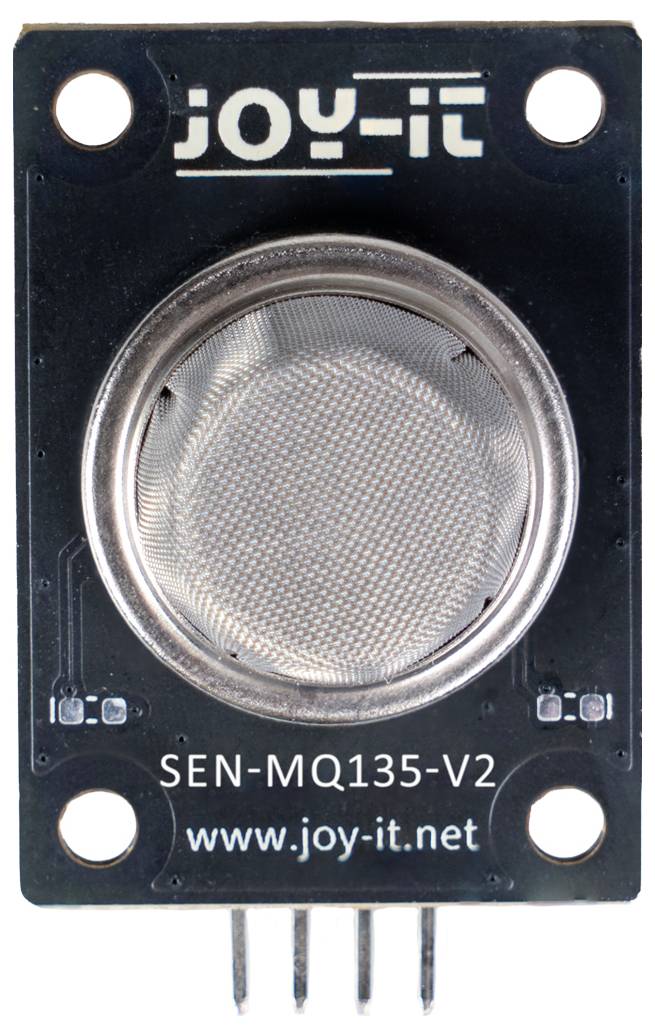

Photo of a Joy-IT SEN-MQ135-V2 gas sensor module with a central mesh sensor, four mounting holes, and four bottom pins.

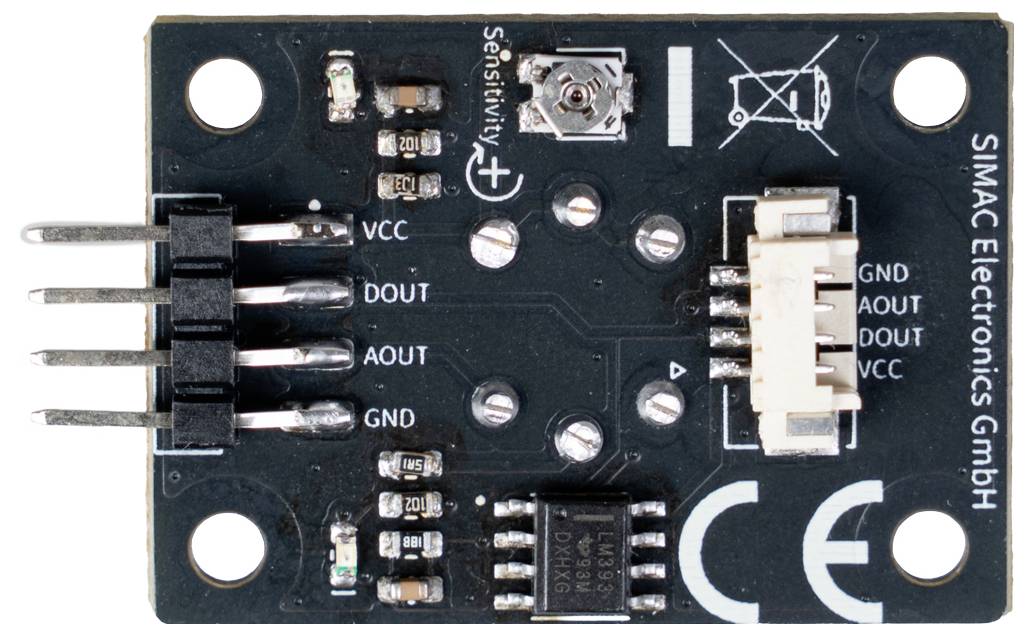

Black sensor module PCB with three-pin headers labeled VCC, DOUT, AOUT, GND, a white side connector, and a sensitivity adjustment screw.<br>

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

49 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 4.29 / piece)

€ 4.29

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

MQ-135 AIR QUALITY AND POLLUTANT SENSOR BOARDWITH ANALOGUE AND DIGITAL OUTPUT

Detects benzene, ammonia, sulphide, smoke, nitrogen oxides
And other air pollutants.
Measurement range from approx. 10 to 1,000 ppm
Analog output (0 - 5 V) for continuous monitoring
The gas concentration
Digital switching output with adjustable trigger via
Built-in potentiometer
Operates using a standard DC power supply
5 V and integrated heating circuit
Compact sensor board with LED status display and
Flexible mounting options

Technical specifications

Interfaces:
4-pin plug connector (2.54 mm), Molex Picoblade (53261-0471)
Analogue sensor value output 0 V – 5 V,
Digital threshold value output 0 V / 5 V (threshold value with integrated
Potentiometers can be set)
Further information and sketches are given in the data sheet.

Product type: Gas detector

Interfaces: Molex plug 4-pin

Max. operating voltage: 5 V

Height: 25 mm

Length: 40 mm

Width: 21 mm

Weight: 8 g

Documents & Downloads

Datasheet

Datasheet 3802251 Joy-it MQ135V2 Gas detector 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3802251 Joy-it MQ135V2 Gas detector 1 pc(s)

Description

MQ 2 Gas sensor module – compact solution for detecting gases & smoke
The MQ 2 module reliably detects flammable gases and smoke such as LPG, propane, butane, methane, hydrogen as well as alcohol vapors in the range 100–10,000 ppm. It offers an analogue 0–5 V output for measured value output as well as a digital switching output with adjustable threshold – Ideal for alarm and monitoring applications.
The sensor operates with 5 V and has an integrated heating circuit. Status LEDs indicate operation and recognition. The connection is made via a 4-pin header or Molex PicoBlade, whereby the module can be integrated easily in micro-controller projects.
Short features:
• Detection of many flammable gases & smoke
• Analogue measuring output + digital switching output
• 5 V operation, integrated heating circuit
• Status LEDs
• Easy integration with embedded systems

This text is machine translated.
