Name: Joy-it MQ3V2 Gas detector 1 pc(s)
Brand: Joy-it
SKU: 3802253
Availability: InStock

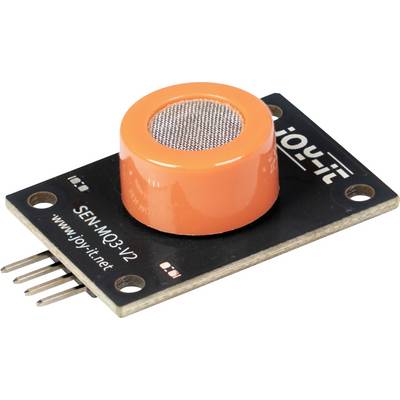

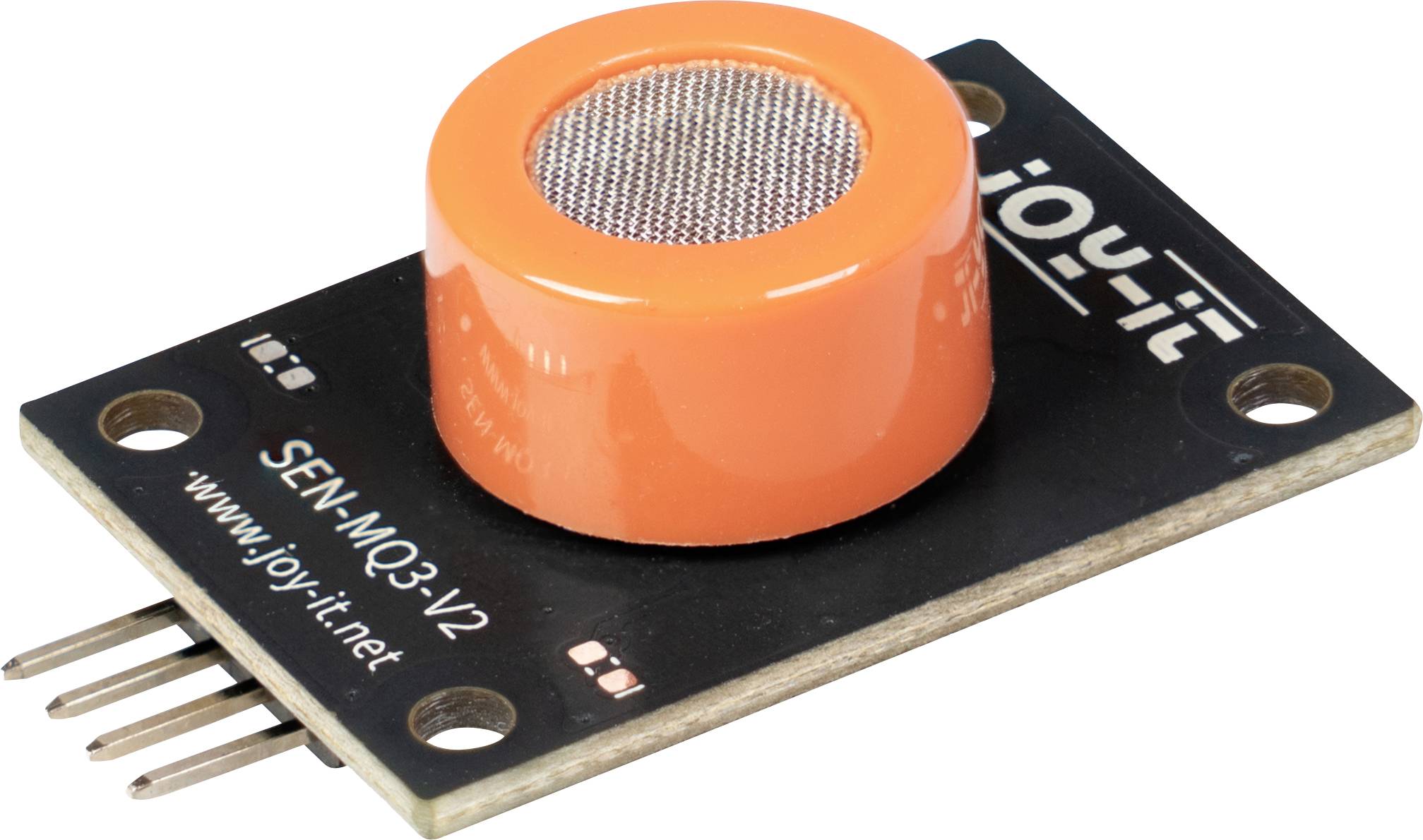

Small orange gas sensor module on a black circuit board with four pin connector and mounting holes, labeled 'SEN-MQ3_V2' and 'joy-it'.<br>

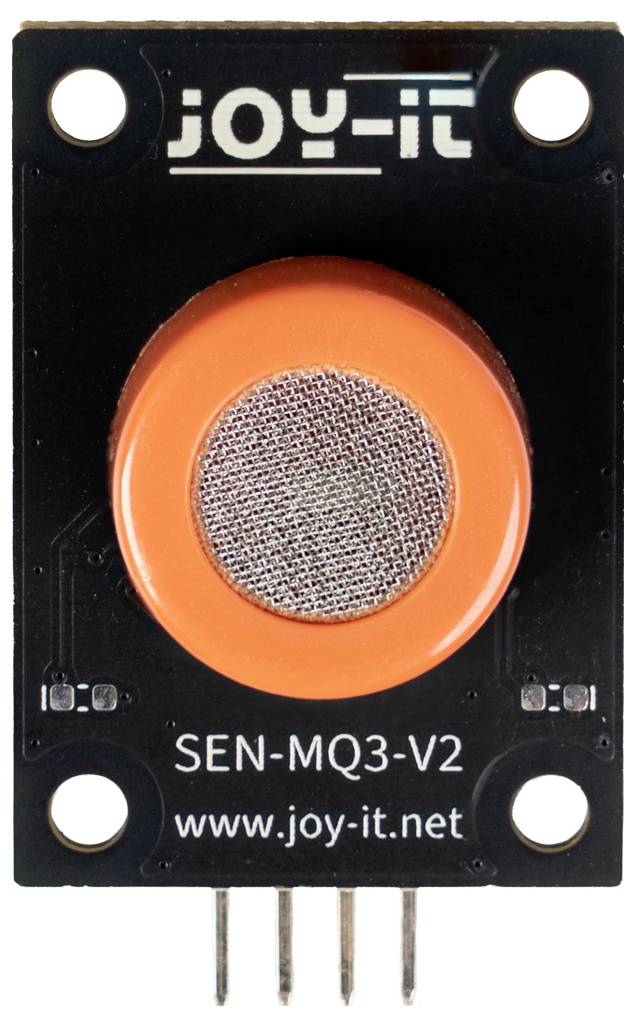

Close-up of a JOY-IT SEN-MO3-V2 sensor module with orange circular sensing element, four mounting holes, and four-pin connector.

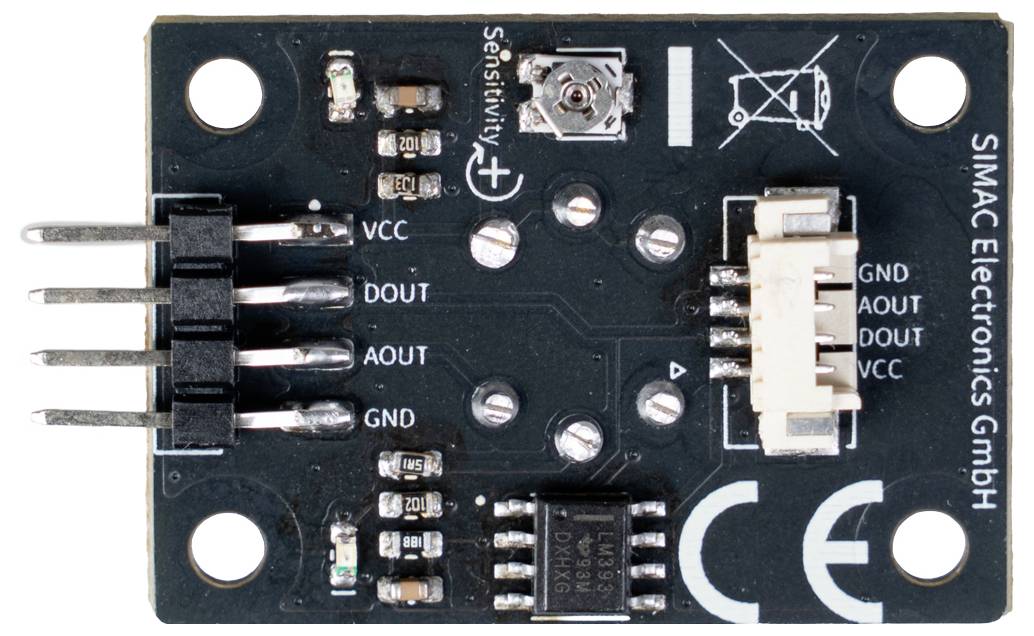

Photo of a small black electronic sensor module circuit board with 4-pin headers labeled VCC, DOUT, AOUT, and GND, plus a sensitivity adjustment screw.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

50 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 4.79 / piece)

€ 4.79

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

MQ3 sensor - alcohol - ethanol - breath - 5V - analogue and digital - 0-5V

Optimized for the detection of ethanol (alcohol), with
Cross-sensitivity to hydrogen
Measurement range from approx. 100 to 10,000 ppm
Analog output (0 - 5 V) for continuous monitoring
The gas concentration
Digital switching output with adjustable trigger via
Built-in potentiometer
Operates using a standard DC power supply
5 V and integrated heating circuit
Compact sensor board with LED status display and
Flexible mounting options
4-pin plug connector (2.54 mm) & Molex Picoblade (53261-0471)

Technical specifications

Interface:
4-pin plug connector (2.54 mm), Molex Picoblade (53261-0471)
Ethan, alcohol over hydrogen concentration
100 – 10,000 ppm

Product type: Gas detector

Interfaces: Molex plug 4-pin

Max. operating voltage: 5 V

Height: 16 mm

Length: 41 mm

Width: 25 mm

No. of outputs: 2 x

Weight: 8 g

Documents & Downloads

Datasheet

Datasheet 3802253 Joy-it MQ3V2 Gas detector 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3802253 Joy-it MQ3V2 Gas detector 1 pc(s)

Description

MQ 3 Alcohol Gas Sensor – sensitive to ethanol vapors
The MQ 3 is a compact alcohol gas sensor for detecting ethanol vapors in the range of 100–10,000 ppm – Ideal for breath alcohol testers and similar applications. It offers an analogue 0–5 V output as well as a digital switching output with adjustable threshold. The operation takes place with 5 V, including integrated heating circuit for stable measurement results.
With status LEDs and 4 pin header or Molex PicoBlade connection the module can be integrated easily in micro-controller projects and embedded systems.
Short features:
• High sensitivity for ethanol vapors
• Analogue & digital output
• 5 V operation, integrated heating circuit
• Operation & status LEDs
• Compact, flexible, integrated board

This text is machine translated.
