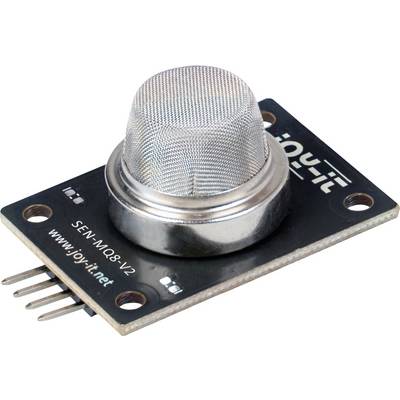

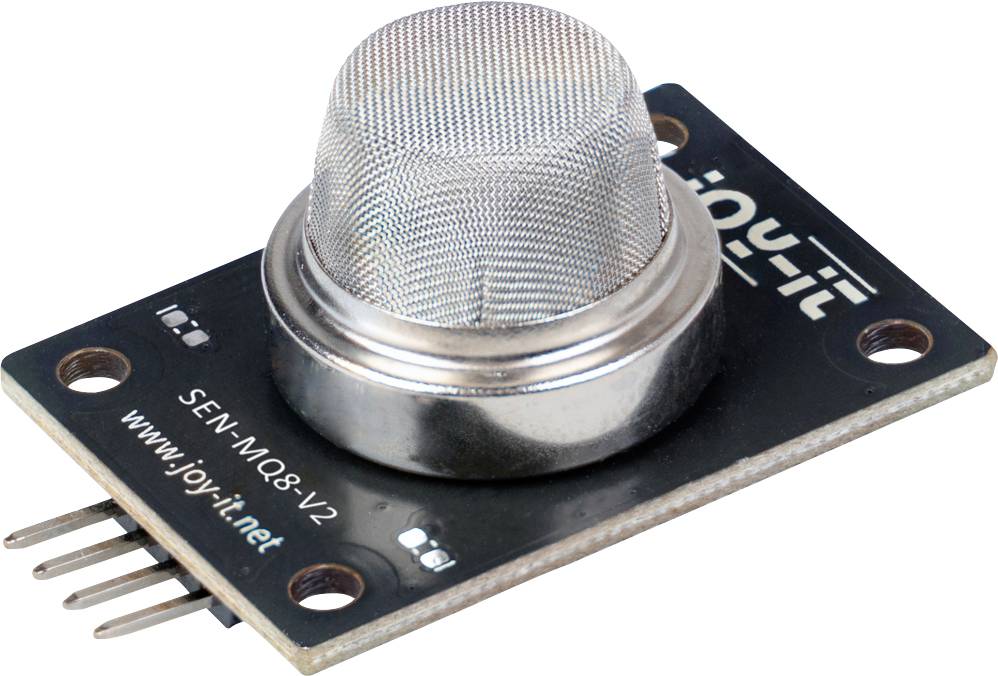

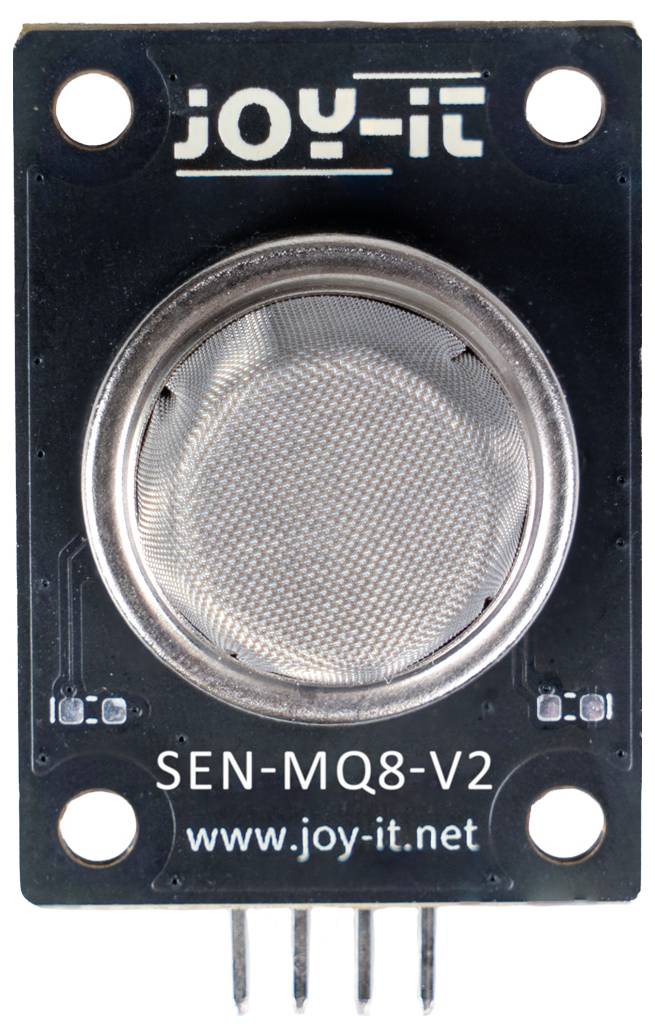

Joy-it MQ8V2 Gas detector 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
7% = € 0.30
€ 4.31
10
9% = € 0.42
€ 4.19
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
Highlights & Details
Hydrogen (H2) Gas sensor, 100-1,000 ppm, analogue & digital, 5V
- Optimized for the detection of hydrogen (HGen) and
- Gases containing hydrogen
- Measurement range from approx. 100 to 1,000 ppm
- Analog output (0 - 5 V) for continuous monitoring
- The gas concentration
- Digital switching output with adjustable trigger via
- Built-in potentiometer
- Operates using a standard DC power supply
- 5 V and integrated heating circuit
- Compact sensor board with LED status display and
- Flexible mounting options
Technical specifications

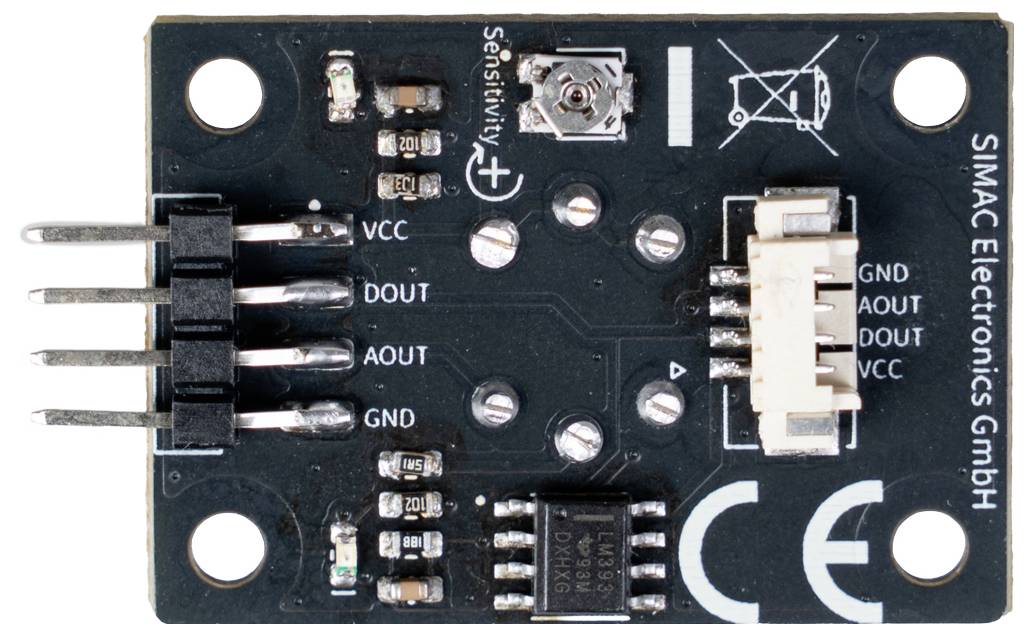

- Interface 4-pin connector strip (2.54 mm), Molex Picoblade (53261-0471)
- Hydrogen (H2), various gases containing hydrogen
- 100 – 1000 ppm
- Product type
Gas detector
- Interfaces
Molex plug 4-pin
- Min. operating voltage
0 V
- Max. operating voltage
5 V
- Height
21 mm
- Length
41 mm
- Width
25 mm
- No. of outputs
2 x
- Weight
8 g
Documents & Downloads
Datasheet
Datasheet 3802256 Joy-it MQ8V2 Gas detector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3802256 Joy-it MQ8V2 Gas detector 1 pc(s)
Description
MQ 8 Hydrogen Gas Sensor - Industry Optimized for Leakage and Safety Monitoring
The MQ 8 detects hydrogen and hydrogen gases in the range 100 – 1,000 ppm and is thus Ideal for commercial leak detection, gas warning systems and safety-critical applications. The module offers an analogue 0–5 V output and a digital switching output with adjustable threshold – perfect for direct integration into industrial control, monitoring and alarm systems. Operation requires 5 V and a stable heating circuit.
With status LEDs and 4 pin header or Molex PicoBlade connection the board can be integrated reliably in professional embedded systems and detection devices.
Short features:
• High sensitivity for hydrogen
• Analogue & digital output for industrial applications
• 5 V operation, robust heating circuit
• Operation & status LEDs
• Compact, commercial sensor board
This text is machine translated.
The MQ 8 detects hydrogen and hydrogen gases in the range 100 – 1,000 ppm and is thus Ideal for commercial leak detection, gas warning systems and safety-critical applications. The module offers an analogue 0–5 V output and a digital switching output with adjustable threshold – perfect for direct integration into industrial control, monitoring and alarm systems. Operation requires 5 V and a stable heating circuit.
With status LEDs and 4 pin header or Molex PicoBlade connection the board can be integrated reliably in professional embedded systems and detection devices.
Short features:
• High sensitivity for hydrogen
• Analogue & digital output for industrial applications
• 5 V operation, robust heating circuit
• Operation & status LEDs
• Compact, commercial sensor board
This text is machine translated.
Scope of delivery
- Sensor
