Name: Joy-it PI-USV-36V-Auto Energy converter
Brand: Joy-it
SKU: 3450218
Availability: InStock

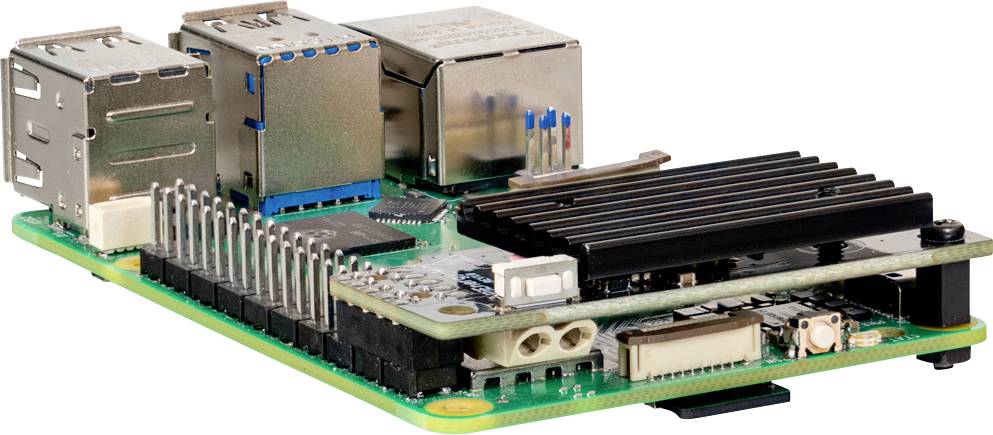

A single-board computer with USB ports, ethernet, and a heat sink on its surface, used for computing and development projects.

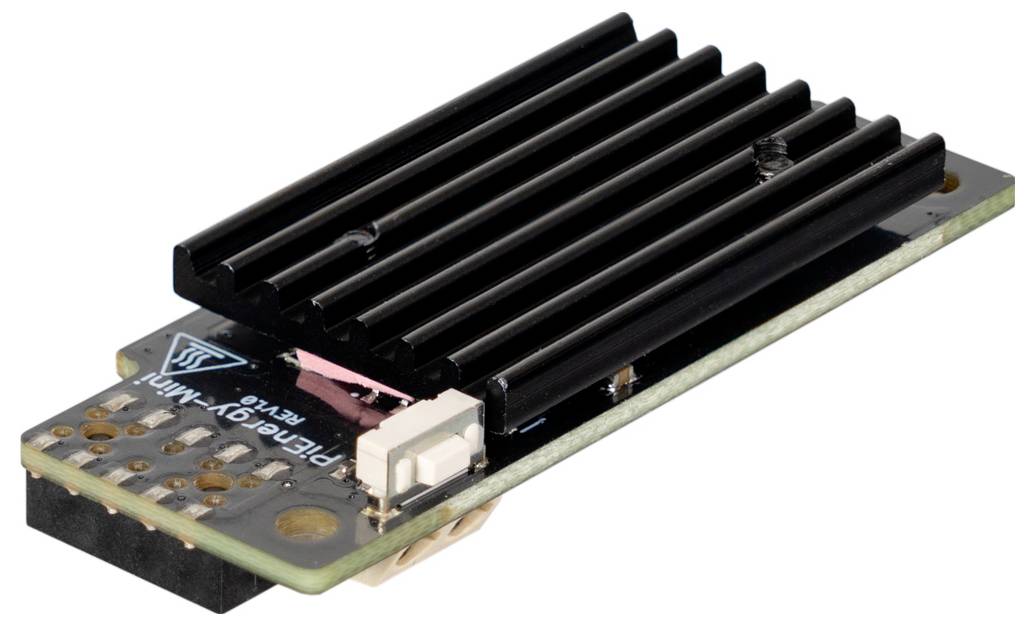

A single-board computer featuring a black heatsink on top, designed for efficient cooling, with visible circuitry and connector ports.

Electronic circuit board featuring input range '6-36V', connector pins, labeled 'joy-it', with 'SWAC Electric' marked, designed for technical use.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

52 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 21.99 / piece)

€ 21.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Pi-Energy-Mini, Wide Range Module 6-36V - Auto start version

Inwide power supply 6-36V
AUTOSTART VERSION: Once power is applied, the Pi is started!
Output voltage 5.1V / output current up to 3A
Compatible with all PI3, PI4 and PI5 variants
5V Fan-connection (2Pin / 2.54mm)
Solder pads for external on/off switch
Ultra-slim design

Technical specifications

Compatible with all Raspberry's of series 3 / 4 and 5
Input voltage 6 to 36 V DC
Output voltage 5.1 V
Output current: Up to 3 A (active ventilation recommended when additional connected loads)
Interface to Raspberry Pi: GPIO4
STM8S001J3
Further connections: 5V fan connection (2Pin / 2.54mm) solder pads for external on/off switch
Ultra-slim design, integrated button for powering up and powering down the Raspberry Pi
IMPORTANT!
Auto start version
This version features specially adapted auto-start firmware which allows the Raspberry Pi to be started immediately when a voltage is applied.

Product type: Energy converter

Height: 11 mm

Length: 56 mm

Width: 23 mm

Suitable for: Raspberry Pi®

Tool type: Converter

Weight: 15 g

Documents & Downloads

Datasheet

Datasheet 3450218 Joy-it PI-USV-36V-Auto Energy converter

User & Safety Instructions

User & Safety Instructions 3450218 Joy-it PI-USV-36V-Auto Energy converter

Description

With the PiEnergy mini, you can operate your Raspberry Pi with a voltage of 6 to 36 V DC. You can use the button integrated on the board
Power up and down your Raspberry Pi.
Communication with the Raspberry Pi runs on GPIO4, but this connection can also be parsed by removing a resistor in order to freely use the pin. By that
Ultra flat design is the use possible even in connection with many housings. The pin strip is enclosed and not soldered to the surface yet
store in a flatter environment.
This version features specially adapted auto-start firmware which allows the Raspberry Pi to be started immediately when a voltage is applied.

This text is machine translated.
