Joy-it sbc-ssr01 Relay board 1 pc(s) Compatible with (development kits): Raspberry Pi®

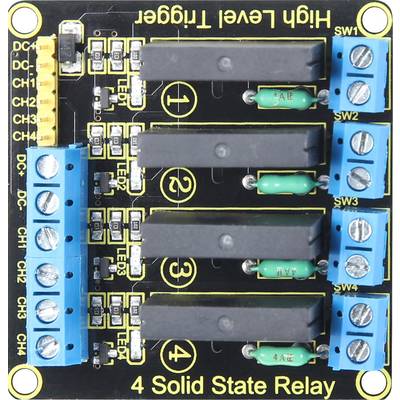

Four-channel solid-state relay module with blue screw terminals and yellow pin headers, labelled as 'CH1' to 'CH4'.
Black electronic circuit with yellow letters B4, A4, B3, A3, B2, A2, B1, A1 at the top. Several green LEDs distributed across the surface.
Four-channel solid-state relay module with blue screw terminals and yellow pin headers, labelled as 'CH1' to 'CH4'.
A 4-channel relay module with blue terminal blocks and black relay blocks, labelled 'High Level Trigger'.
1/4
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
36 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 8.99 / piece)
€ 8.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

4-channel solid-state relay for AC voltage

  • Galvanic isolation
  • transistorized
  • With fuse resistance

Technical specifications

  • Relay type
  • OMRON SSR
  • Applications
  • Robotics, microcontroller projects
  • Compatible with
  • Raspberry Pi, Arduino, etc.
  • Key features
  • Galvanic isolation, transistorized, with fuse resistance
  • Supply voltage
  • 5 V DC
  • Maximum load voltage
  • 240 V/ AC
  • Maximum load current
  • 2 A
  • Logic level
  • 0 - 2.5 V: Relay from 3.3 - 5 V: Relay on
  • Quiescent current
  • 0 mA
  • Operating current
  • 12.5 mA
  • Tripping current
  • 2 mA
Packaging type

Piece

Product type

Relay board

Compatible with

Arduino

Min. operating voltage

5 V DC

Max. operating voltage

240 V AC

Output voltage (max.)

240 V AC

Suitable for

Raspberry Pi®

Tool type

Expansion board

Height

23 mm

Length

55 mm

Width

57 mm

Internal ports

Screw terminal

No. of outputs

4 x

Compatible with

Raspberry Pi®

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2205385 Joy-it sbc-ssr01 Relay board 1 pc(s) Compatible with (development kits): Raspberry Pi®

Description

This 4-channel solid-state relay is suitable for switching alternating voltage. It has galvanic isolation through integrated optocouplers and switching of the load is done with transistors, which means it has a much longer service life than mechanical relays.

This text is machine translated.
