Joy-it SEN-KY033LT Sensor 1 pc(s) Compatible with (development kits): Arduino, ASUS Tinker Board, BBC micro:bit, Raspber
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.76
10
8% = € 0.21
€ 2.55
25
10% = € 0.28
€ 2.48
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.76 / piece)
€ 2.76
plus VAT.
Highlights & Details
Linetracker Sensor (IR), 3.3 to 5V
- IR line tracker sensor
- 3.3 to 5V operation
- Power consumption: 3V= 7mA, 5V= 13mA
Technical specifications
- Product type
Sensor
- Compatible with
Arduino
Raspberry Pi
BBC micro:bit
- Interfaces
3-core
- Min. operating voltage
3.3 V
- Max. operating voltage
5 V
- Suitable for
Arduino
BeagleBone
BBC micro:bit
Raspberry Pi®
- Tool type
Development kit
- Height
8 mm
- Length
42 mm
- Width
11 mm
- Internal ports
Pin header
- Weight
15 g
- Compatible with
Arduino
ASUS Tinker Board
BBC micro:bit
Raspberry Pi®
Documents & Downloads
Datasheet
Datasheet 2306281 Joy-it SEN-KY033LT Sensor 1 pc(s) Compatible with (development kits): Arduino, ASUS Tinker Board, BBC micro:bit, Raspber
User & Safety Instructions
User & Safety Instructions 2306281 Joy-it SEN-KY033LT Sensor 1 pc(s) Compatible with (development kits): Arduino, ASUS Tinker Board, BBC micro:bit, Raspber
Description

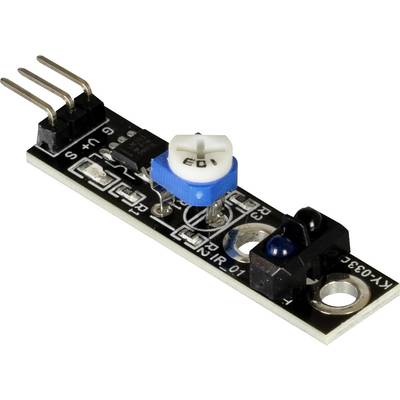

This sensor sends and receives infrared. This allows the sensor to detect whether it has a reflective surface (the sensor receives its own signal) or an absorbing surface (the sensor does not receive a signal) in front of it. The sensitivity of the sensor can be adjusted using a potentiometer.
Robots can use three of these sensors to perform an automated line tracker function.
Working voltage: 3.3 V-5 V
Power consumption: 3V= 7mA, 5V= 13mA
IO Interface: 3 interfaces (G/V +/S)
Output signal: TTL level (low is an obstacle, no obstacle high)
This text is machine translated.
Robots can use three of these sensors to perform an automated line tracker function.
Working voltage: 3.3 V-5 V
Power consumption: 3V= 7mA, 5V= 13mA
IO Interface: 3 interfaces (G/V +/S)
Output signal: TTL level (low is an obstacle, no obstacle high)
This text is machine translated.
Scope of delivery
- Sensor module
