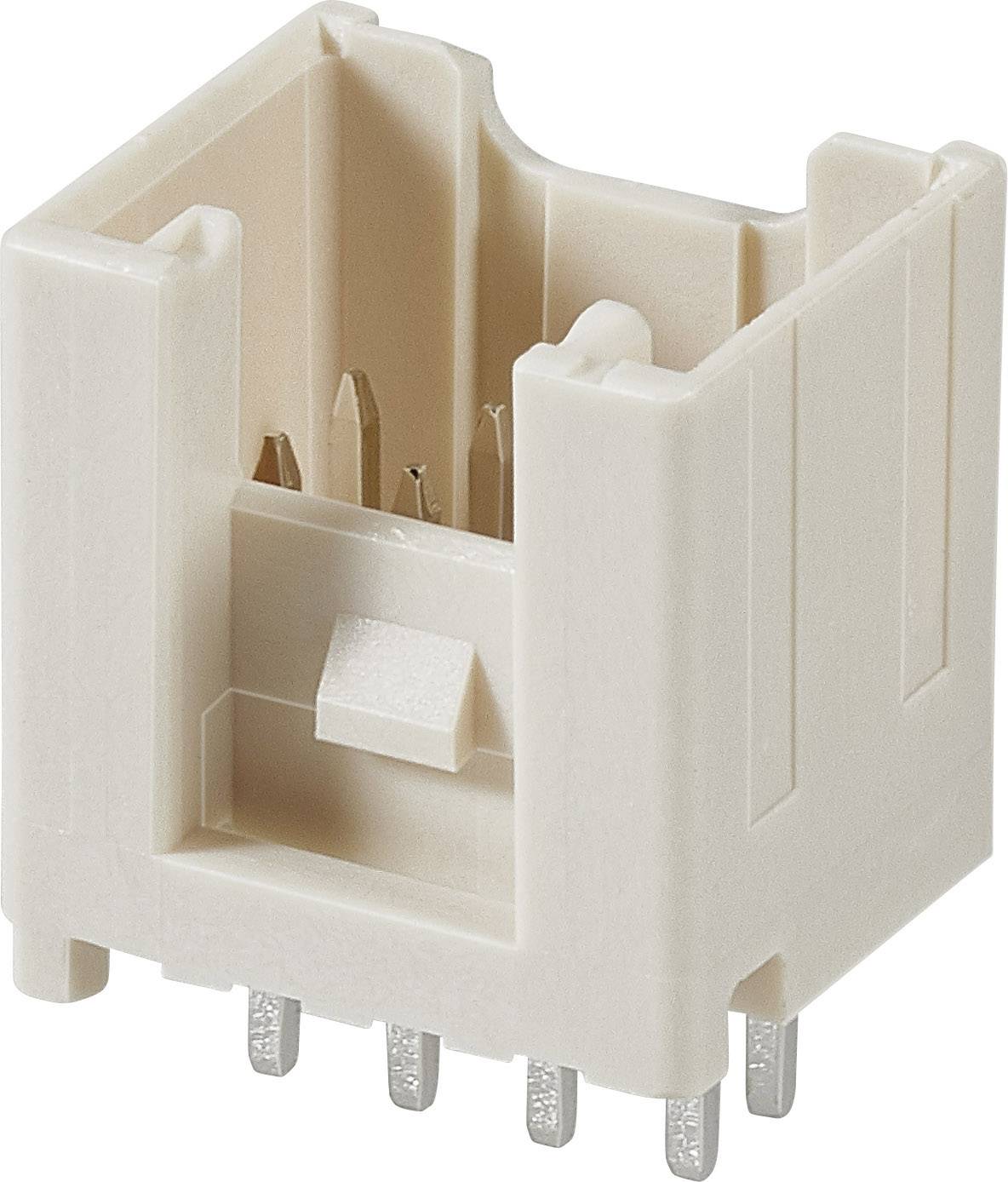

Image similar
JST Pin housing PCB PUD Total number of pins 10 Contact spacing: 2 mm B10B-PUDSS-1 (LF)(SN) 1 pc(s)
Product type
Pin housing PCB
Connector type
Pin strip, straight
No. of rows
2
Series
PUD
CS
2 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 7
Total (€ 0.40 / piece)
€ 0.40
incl. VAT
14-day return policy included
Highlights & Details
Straight connector pin strip
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 10
Our service for you
Technical specifications
- Product type
Pin housing PCB
- Connector type
Pin strip, straight
- No. of rows
2
- Connector system
wire-to-board
- Series
PUD
- Features
+ latch lock base
- CS
2 mm
- Pins per row
5
- Total number of pins
10
- Pin Ø
0.7 mm
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Content
1 pc(s)
- Connection
Print
- Case material
Polybutylene
- Manufacturer part #
B10B-PUDSS-1 (LF)(SN)
- Factory colour
White
- Industrial packaging
No
- Contact material
Copper alloy
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- Nominal voltage
250 V DC
250 V AC
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
+85 °C
- Min. temperature
-25 °C
- Type
B10B-PUDSS-1 (LF)(SN)
