Jumo Pressure switch 00380639 1 change-over 1 pc(s)

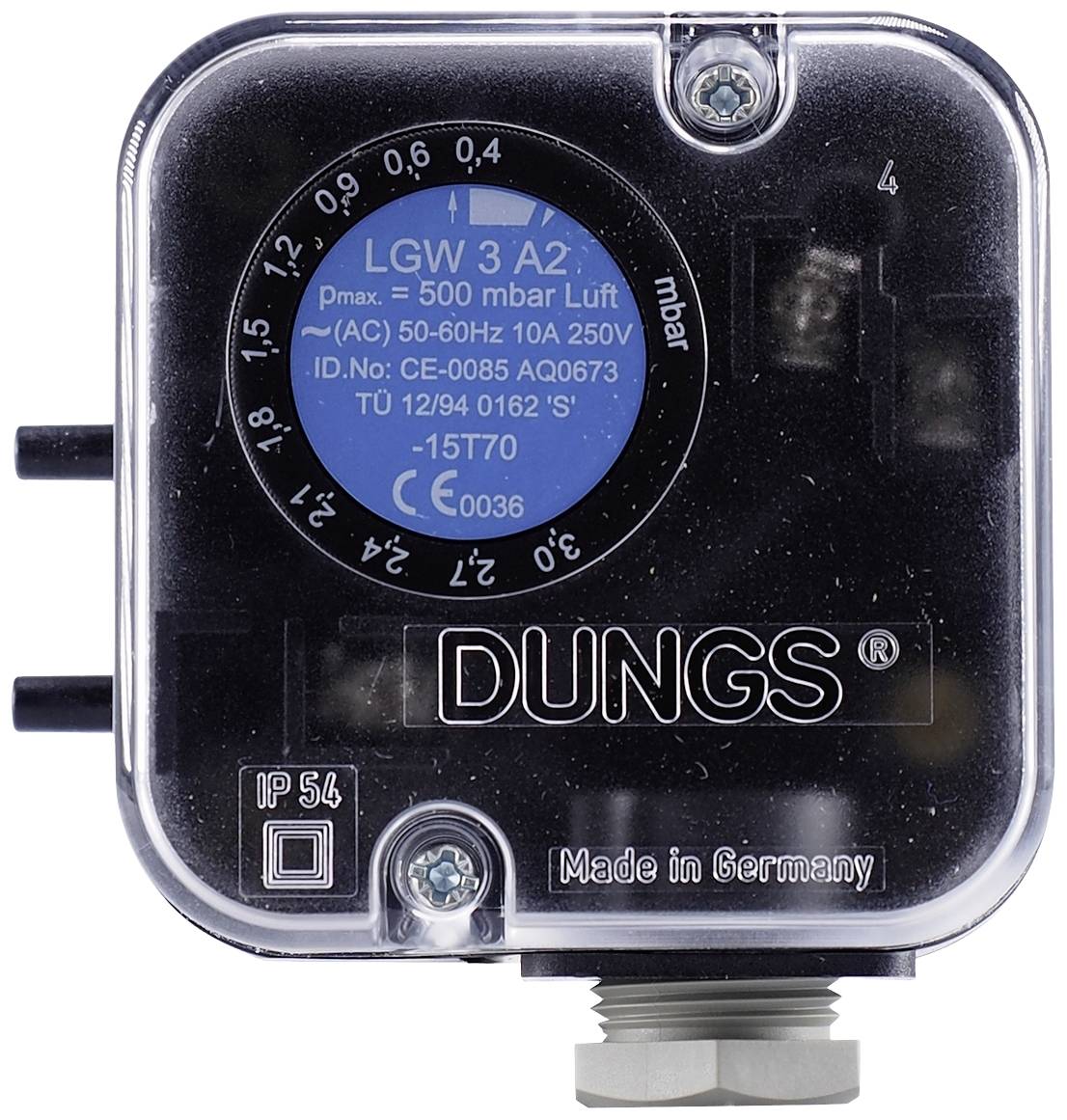

A pressure monitor by Dungs, Model LGW 3 A2, with a specification of max. 500 mbar air pressure and an electrical specification of 250V.

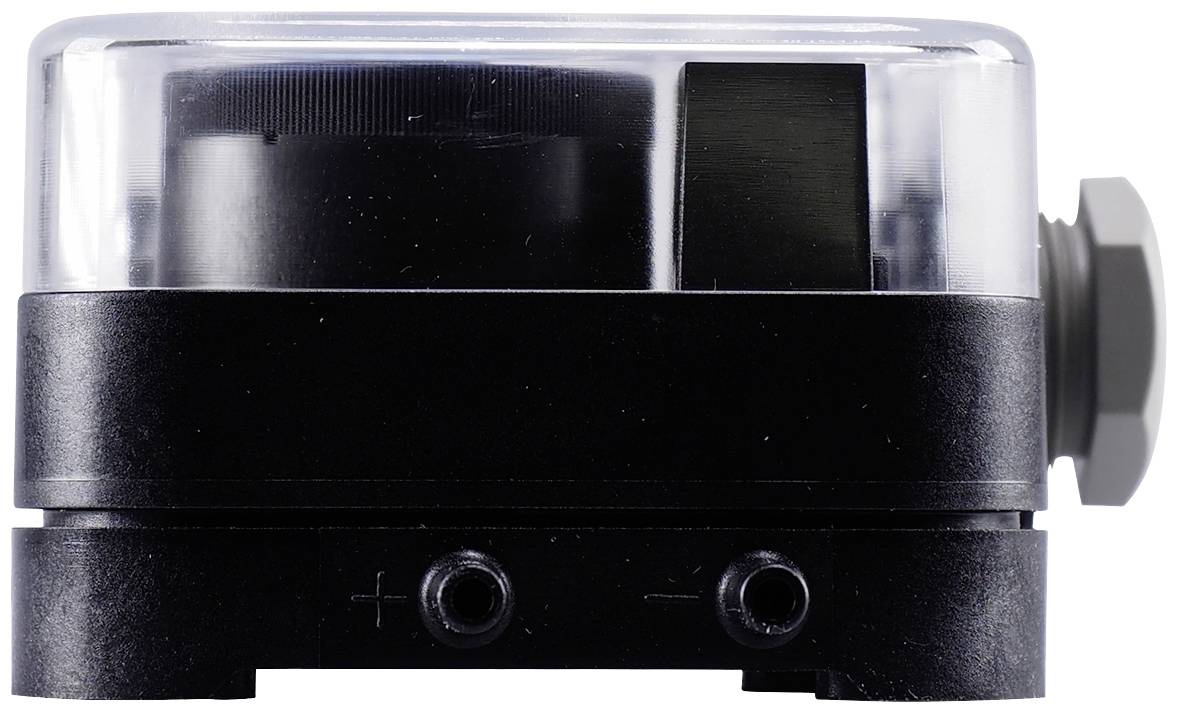

Black electrical component with a transparent cover, two connections at the bottom and a side connection on the right side.

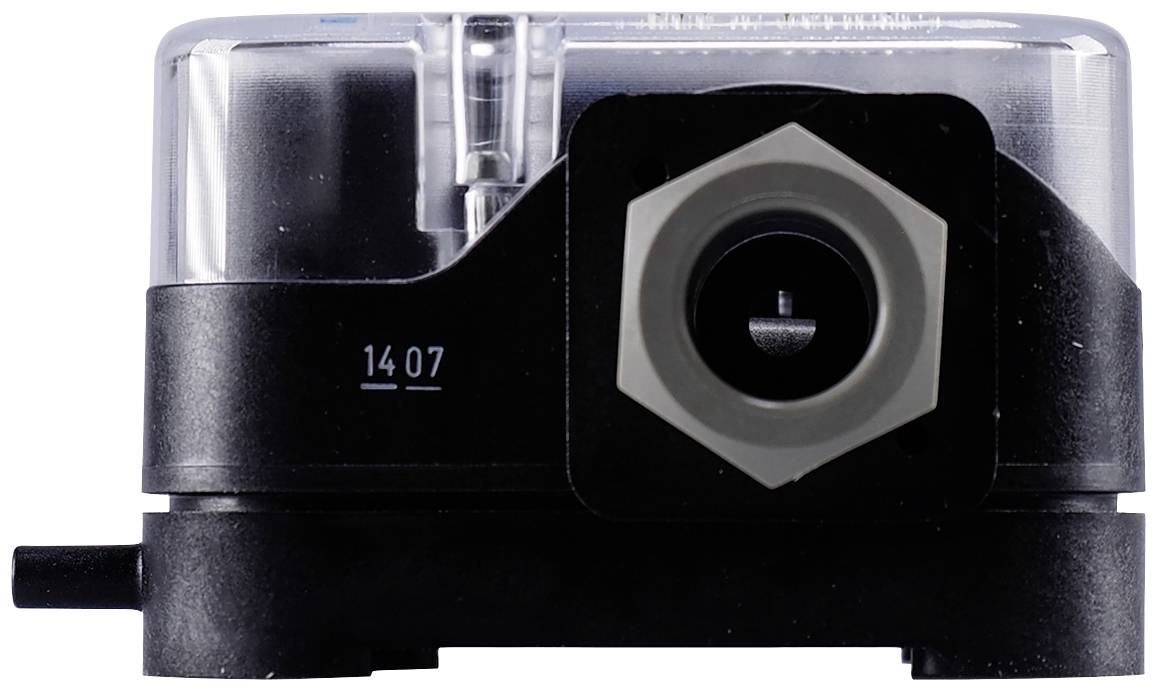

A black device with a transparent casing, displaying the numbers '14 07' on it. It has a hexagonal opening at the front.

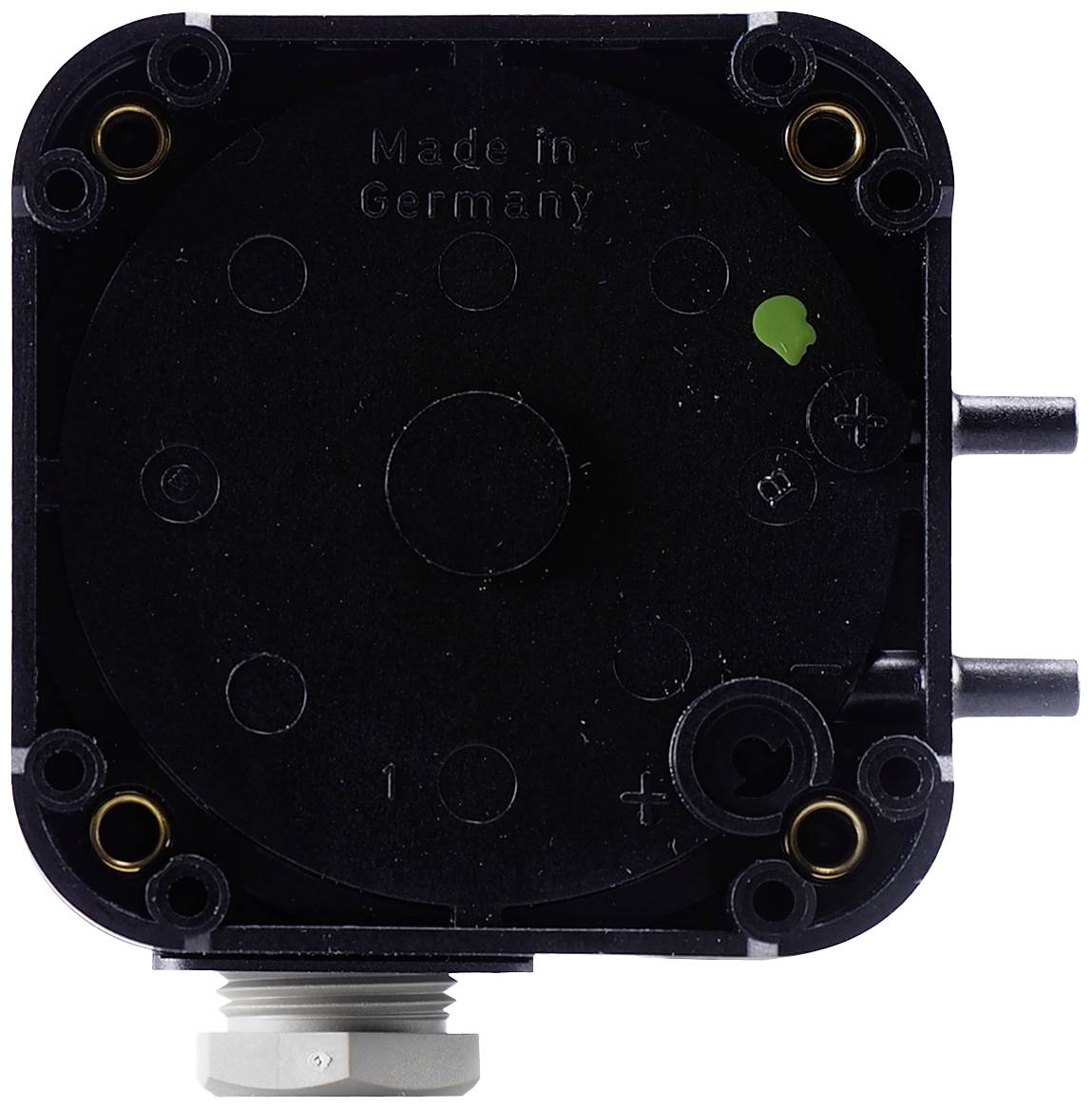

A black, square component with multiple screw holes. Inscription on top: 'Made in Germany'.
1/4
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Fri 20 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 345.00 / piece)
€ 345.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Type

00380639

Product type

Pressure switch

Media temperature (range)

-15 up to +60 °C

Operating temperature

-15 °C (min)

Min. operating temperature

-15 °C

Manufacturer part #

00380639

Dim

(Ø) 4.6 mm

Functions

CO

Contact type

1 change-over

Max. media temperature

+60 °C

Media temperature (min.)

-15 °C

(Ø)

4.6 mm

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2756160 Jumo Pressure switch 00380639 1 change-over 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2756160 Jumo Pressure switch 00380639 1 change-over 1 pc(s)

Description

The differential pressure monitor in the surface-mounted housing is suitable for switching on/off or switching a circuit when the pressure changes. The target value (switching point) is set manually via an adjustment wheel with scale. On over or The circuit is switched if the set value falls below the set target value. The permitted ambient and medium temperature is -15 to +60 ° C. The process is connected using two hose fittings with a diameter of 4.6 mm.

This text is machine translated.
