Name: JVC JVC - KW-M695DBT (KW-M695DBT) Double DIN monitor receiver Android Auto™, Apple CarPlay, Rearview camera connector, D
Brand: JVC
SKU: 3414534
Availability: InStock

Digital car radio display showing the time '10:28', date 'Sun. Jan. 7, 2024', links to Android Auto, Phone, Digital Radio.

JVC display shows time 10:28, date 7 January 2024. Apps 'Apple CarPlay', 'Phone', 'Digital Radio' and 'Tuner' are available.

A car radio with a touchscreen shows the time as 10:28, date 7th January 2024, and has options for Android Auto, Digital Radio and Telephone.

A car radio viewed from behind with various connection sockets in different colours, a USB cable, and a GPS antenna connection.

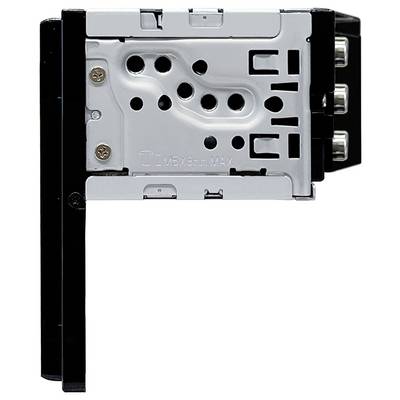

Metal mounting bracket for electronic devices, with multiple holes and side connections, mountable with M5x8mm screws.

Electrical plug module with multiple silver and black connection points and mounting holes, marked '4-LOW-R' at the bottom.

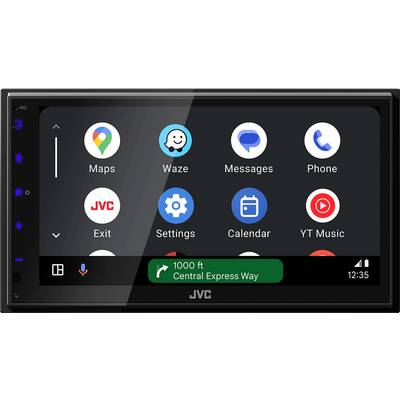

The image shows a car radio display with apps such as 'Maps', 'Waze', 'Messages' and 'Phone', along with a navigation instruction indicating 1000 ft on the Central Express Way.

JVC navigation system displays smartphone apps on the screen, including maps, messaging, and music apps. Navigation shows '1000 ft Central Express Way'.

A screen displays a car radio display with apps such as Phone, Messages, WhatsApp, Spotify, Waze, Maps and Music.

1/11

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 395.00 / piece)

€ 395.00

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

JVC JVC - KW-M695DBT (KW-M695DBT) Double DIN monitor receiver

17.3 cm (6.8") high resolution (1024 x 600px) WSVGA double DIN
Monitor with capacitive high-gloss touch panel
Wireless CarPlay for connecting a compatible iPhone via WiFi
Wireless Android Auto to connect compatible Android smartphones via WiFi
Wireless mirroring for the wireless Android smartphone interface
Wireless mirroring for iPhone/Android smartphones via MirrorAPP
Bluetooth module for handsfree (HFP 1.8) & Audio (A2DP incl. AVRCP 1.6)
Automatic pairing with iPhone & Android
Compatible with the voice control of Android/iOS devices
Integrated microphone (rear-side connection for cable microphone available)
Clear user interface with menu display in 14 languages
Individual background graphic via JPEG-file or from video
Blue key illumination
Low installation depth (not CD drive): Only 86 mm

Technical specifications

Digital radio certification Yes DAB+Band III 174.928MHz to 239.2MHz DAB-DAB/DAB-FM
Automatic switching Yes
Seamless blending DAB FM Yes
ASW - Output of messages Yes
DLS (Digital Accompaniment) Yes
Slide Show Function Yes
Softlink Services Yes
Screen size 6.8 inch diagonal
High-definition display WSVGA (1,024 x 600 pixels)
Capacitive touch panel
Display principle TN LCD panel
Drive system TFT active matrix system
No. of pixels 1,843,200 (1.024H x 600V x RGB)
Effective pixels 99.99%
Pixel arrangement RGB strips arrangement
Background lighting: LED
Monitor with touch control Yes
Back-up memory Yes GPS antenna input Yes DAB antenna input Yes
IR remote control ready
Prepared for steering wheel control Yes
Learning Direct OEM Remote Yes (Resistive protocol only)
ISO Plug connector 22pin (New Type) to ISO Wiring Harness Low installation depth (Short Body) Yes (86mm)
Operating voltage: 12 volt.
Installation size (W x H x D) 182 x 112 x 86mm
Weight, including installation frame and aperture 1.27 kg

Product type: Double DIN monitor receiver

Keypad illumination colour: Blue

Playback of: H.264
MP3
WMA
WAV
AAC
FLAC
MPEG-4
MPEG-2
MPEG-1
WMV
MKV
JPEG
BMP
PNG
Show more

USB port: Yes

Remote control: Yes

Car stereo features: Android Auto™
Apple CarPlay
Rearview camera connector
DAB+ tuner
incl. remote control

Screen size diagonal (inches): 6.8 inch

Vehicle voltage: 12 V

Screen size diagonal (cm): 17.3 cm

Factory colour: Black

Audio power (max.): 4 x 50 W

Weight: 0

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3414534 JVC JVC - KW-M695DBT (KW-M695DBT) Double DIN monitor receiver Android Auto™, Apple CarPlay, Rearview camera connector, D

Information

Information 3414534 JVC JVC - KW-M695DBT (KW-M695DBT) Double DIN monitor receiver Android Auto™, Apple CarPlay, Rearview camera connector, D

Description

Apple car play/Android car

The KW-M695DBT offers iOS and Android users a convenient option to use their Smartphone in the car. With Apple CarPlay or Android AUTO selected apps can be controlled via touch-screen. The KW-M695DBT comes with Wi-Fi to even connect Apple and Android smartphones wirelessly.

Built-in microphone
The integrated microphone enables a comfortable hands-free function, without additional cabling. This considerably simplifies installation and saves time. For even better sound quality or specific requirements an additional connection at the rear offers the possibility of connecting an external cable microphone.

This text is machine translated.

Features

Features A/V.
Supports Spotify (via Apple CarPlay/Android auto)
USB connection on the back for audio and video data (MPEG1/2/4, H.264, MKV, WMV as well as AAC, FLAC (192kHz/24bit), MP3, WAV & WMA
IPod*/iPhone* direct control via USB port with up to 2.1 A charging current
Rear connections: Cinch camera input, cinch AV output
Rear microphone connection (cable microphone not supplied)
Max. Output power 4 x 50 W (MOS FET)
DSP: Runtime correction, 13-band EQ
3 pre-amplifier outputs 2.5 V (front + rear / subwoofer)
Active high and low pass filter

Scope of delivery

Removal tool
Cover frame
Mounting bracket
Power connection cable
GPS-antenna
Multilingual instructions for use

Description

Features

Features A/V.
Supports Spotify (via Apple CarPlay/Android auto)
USB connection on the back for audio and video data (MPEG1/2/4, H.264, MKV, WMV as well as AAC, FLAC (192kHz/24bit), MP3, WAV & WMA
IPod*/iPhone* direct control via USB port with up to 2.1 A charging current
Rear connections: Cinch camera input, cinch AV output
Rear microphone connection (cable microphone not supplied)
Max. Output power 4 x 50 W (MOS FET)
DSP: Runtime correction, 13-band EQ
3 pre-amplifier outputs 2.5 V (front + rear / subwoofer)
Active high and low pass filter
