Name: Kabeltronik 24303D5T9-1 Sensor lead Sensocord® 3 x 0.05 mm² Black Sold per metre
Brand: Kabeltronik
SKU: 1269531
Price: 2.79 EUR
Availability: SoldOut

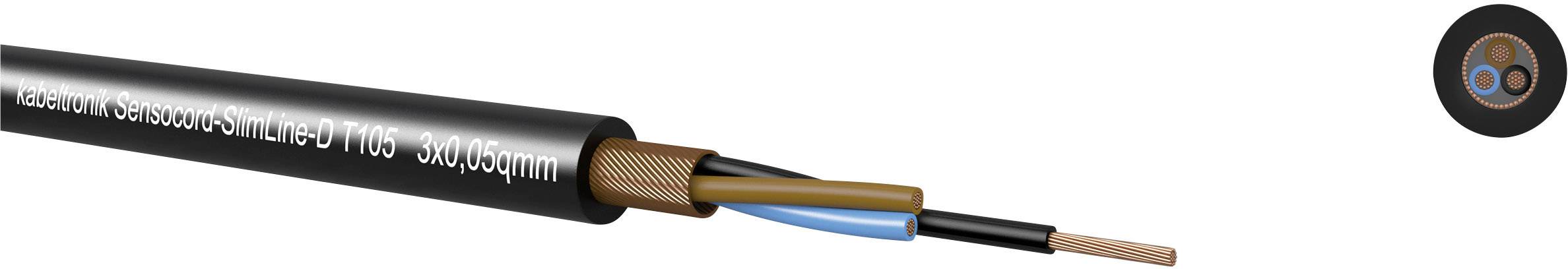

Figure of an open electrical cable with three insulated wires: brown, blue and a copper conductor. Cross-section on the right shows arrangement.

Image similar

Product type

Sensor lead

No. of leads

3 x

Cross section (each core)

0.05 mm²

Cable features

Shielded

Cable type

Sensocord®

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 2.79 / piece)

€ 2.79

incl. VAT

Your Right to Cancel does not cover goods sold by the metre.

14-day return policy included

Report legal concerns

Technical specifications

Product type: Sensor lead

Cable type: Sensocord®

No. of leads: 3 x

Cross section (each core): 0.05 mm²

Cross section: 3 x 0.05 mm²

Cable features: Shielded

Outside Ø: 2.20 mm

Factory colour: Black

Content: Sold per metre

AWG max.: 28

Bend radius (no. of ODs for fixed installation): 8

Bend radius (no. of ODs for flexible installation): 12

Packaged: No

Sold per metre: Yes

Halogen-free: No

Shielded: Yes

Manufacturer part #: 24303D5T9-1

Insulation material: PVC

Insulation: Sheath: PVC · Wire insulation: PVC

Core layout: 26 x 0.05 mm

Min. temperature range (flexible installation): -20 °C

Max. temperature range (flexible installation): +105 °C

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): +105 °C

Max. length sold by the metre: 100 m

Type: 24303D5T9

Documents & Downloads

Datasheet

Datasheet 1269531 Kabeltronik 24303D5T9-1 Sensor lead Sensocord® 3 x 0.05 mm² Black Sold per metre

User & Safety Instructions

User & Safety Instructions 1269531 Kabeltronik 24303D5T9-1 Sensor lead Sensocord® 3 x 0.05 mm² Black Sold per metre

Description

The very thin cable is highly flexible and up to +105 °C temperature-resistant. Ideal application areas are all applications in the sensor technology for process automation. The small external diameter and the high flexibility to enable use of the line itself where it gets close and high temperatures prevail.

This text is machine translated.
