Kathrein EAX 2512 SAT splitter 950 -2150 MHz
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 109.99 / piece)
€ 109.99
incl. VAT
14-day return policy included
Highlights & Details

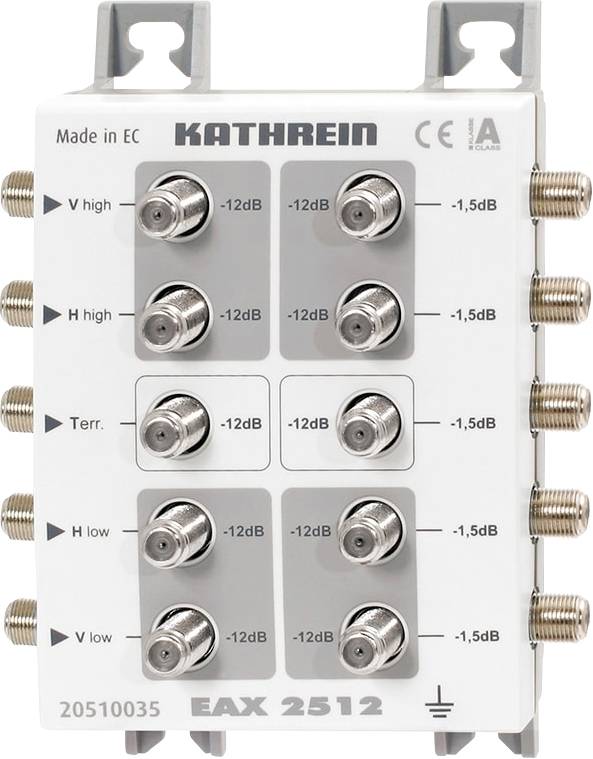

Kathrein EAX 2512 SAT-distributor
- Double splitter and dual splitter for the Sat IF distribution system (4 x Sat IF)
- For signal distribution in very large Sat IF systems with 5er multi-switch cascades
- Remote feed-compatible via input - main output (4 x Sat-ZF); separator capacitors at the branch outputs)
- For indoor mounting
- Double branch for connecting, for example, two 5er multi-switch cascades to a main line
- Five double branch connections (4 x Sat-IF and 1 x terr. Range) can be cascaded in one housing with further EAX 2512 or EBX 2520
- This text is machine translated.
Technical specifications
- Product type
SAT splitter
- Frequency range
950 -2150 MHz
- No. of inputs
1 x
- SAT damping
50 dB
- Dim
(L x W x H) 54.5 x 112 x 148 mm
- Length
54.5 mm
- Height
148 mm
- Width
112 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2308355 Kathrein EAX 2512 SAT splitter 950 -2150 MHz
User & Safety Instructions
User & Safety Instructions 2308355 Kathrein EAX 2512 SAT splitter 950 -2150 MHz
Description
Features
- Sat IF splitter
- 5-862 and 4 x 950-2150 MHz
- 5 x 2fach splitter 12 dB in one go.
- F-connections
- cascadable with EXR 5er multi-switch system.
