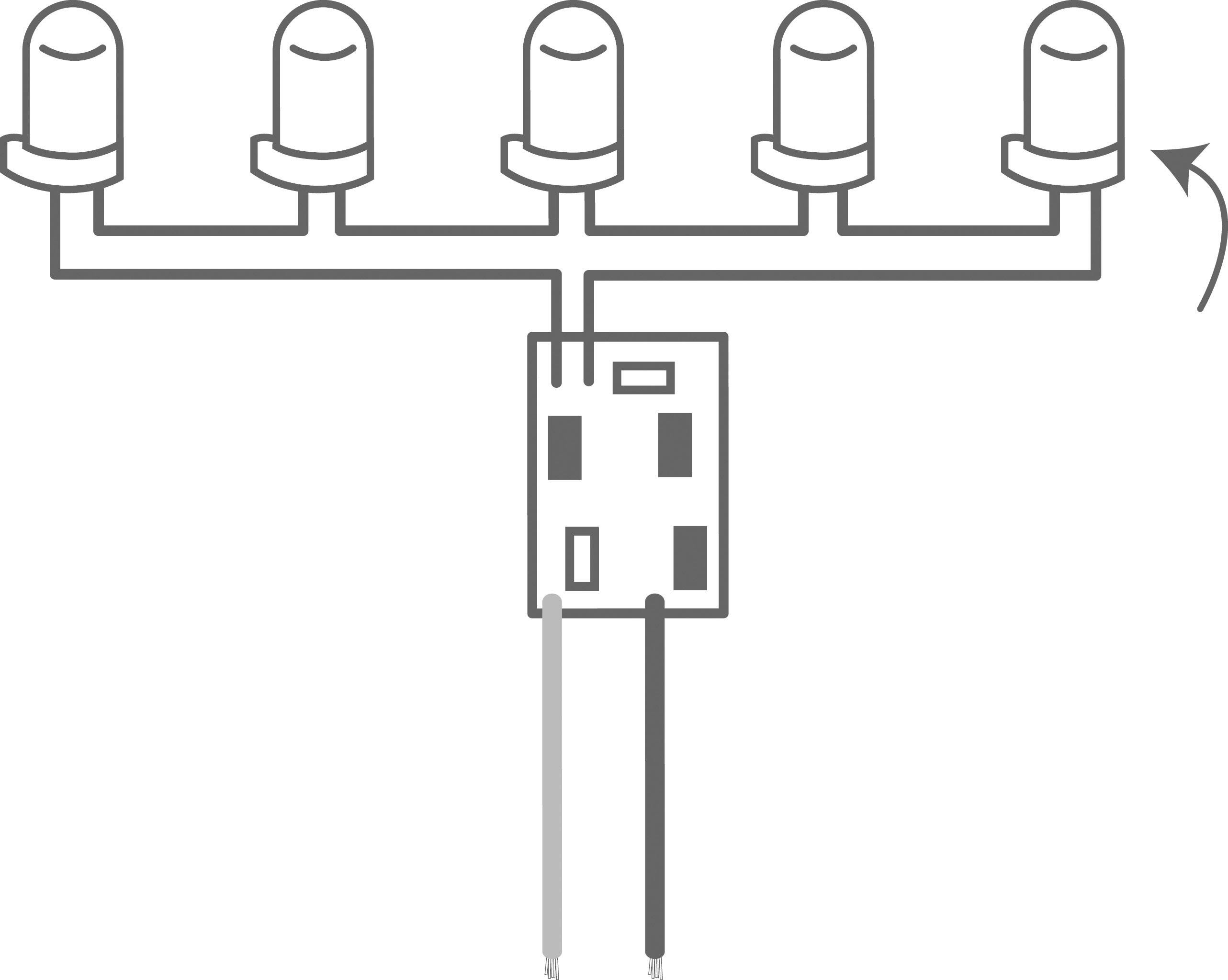

Circuit diagram with five LEDs at the top, connected to a central control chip. Two wires at the bottom lead to the power circuit.

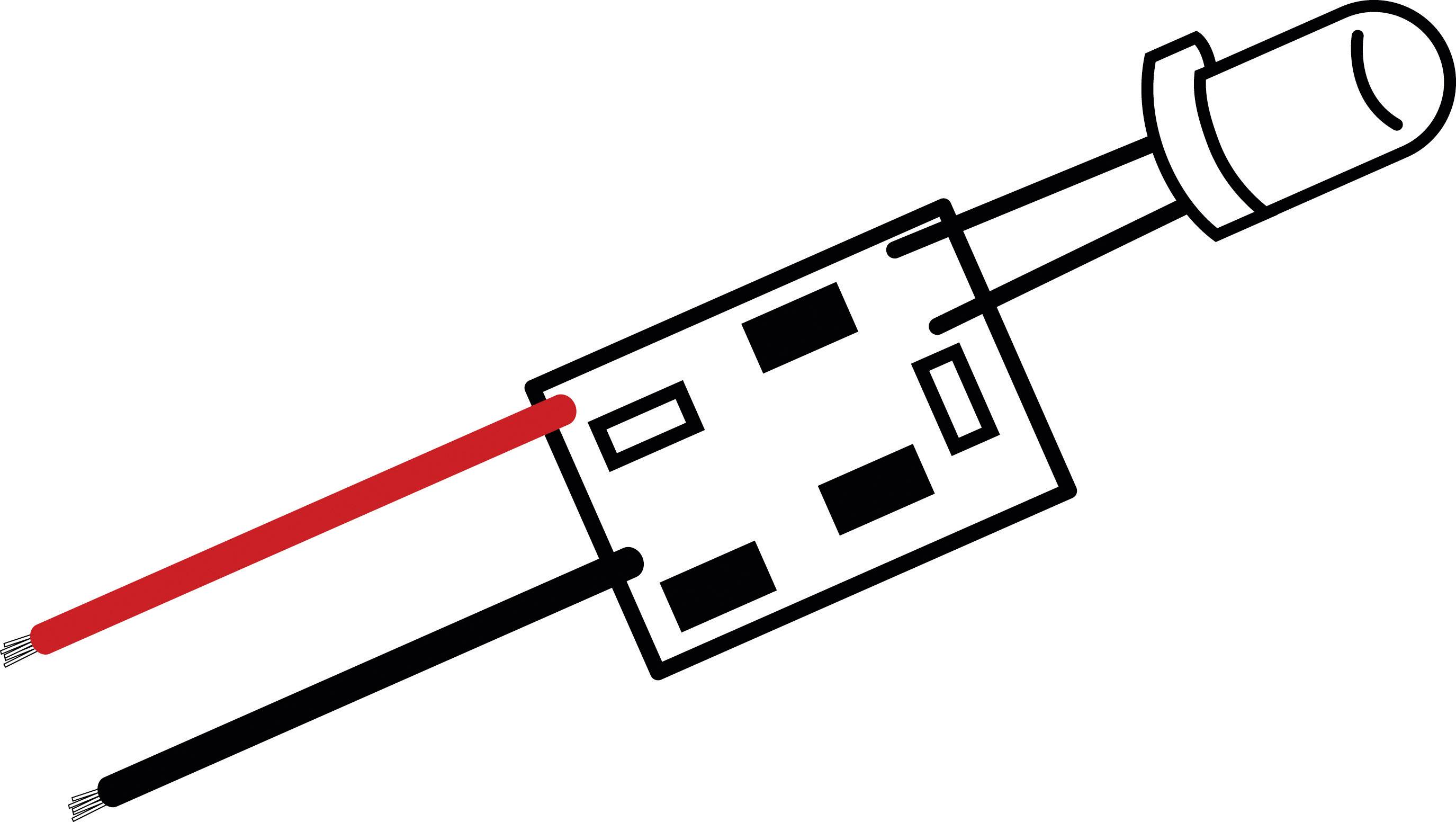

'Illustration of an LED connection with two wires, one red and one black, connected to a circuit board.'

1/3

Fast track dispatch on Wed, 9 Sep

54 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 5.03 / piece)

€ 5.03

plus VAT.

Report legal concerns

Highlights & Details

Kemo M142 LED Contant Current Source Module

Technical specifications

Product type: LED driver assembly kit

Operating voltage: 6 V DC
12 V DC
24 V DC

Current consumption: 15 mA

Operating voltage: 4 - 30 V DC

Dim: (L x W) 13 mm x 10 mm

Length: 13 mm

Width: 10 mm

Version: Component

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 191695 Kemo M142 LED Contant Current Source Module

Description

This LED with soldered constant current electronics may be connected at any voltage between 4–30 V/DC. The LED shines with almost constant brightness and has a consumption of ca.15 mA. An additional protective resistor is not required. The supplied LED can be exchanged for any other LED. It is also possible to connect several LEDs in series.
