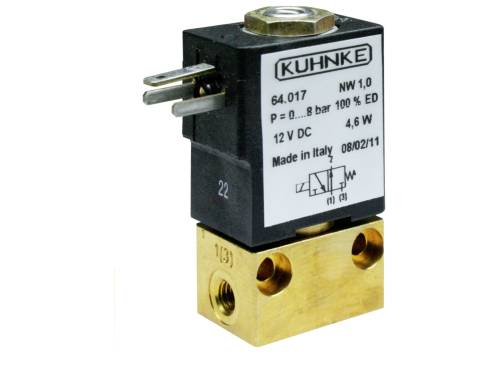

Kendrion Magnetic valve 64.017 24V DC 24 V Nominal width (details) 1 mm 1 pc(s)

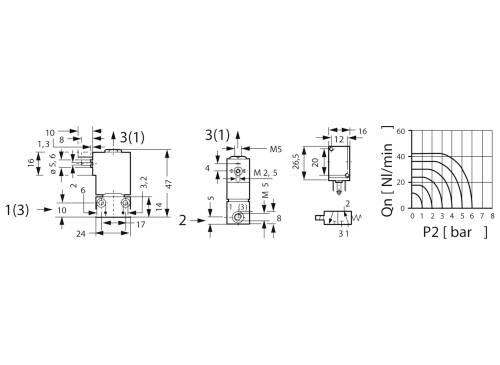

Delivery without power socket and occupied pneumatic connections for degree of protection IP 65, please order separately, micro-solenoid valves of the type Kuhnke 64.0. Directly controlled 2/2- or 3/2-way seat valve; ON time: 100 %, protection class: IP 65 (with separately to be ordered equipment socket and occupied pneumatic connections), earthing contact: Exists as standard, design: With standard socket, housing: CuZn, seals: NBR, Mounting position: Any, electrical connection: via equipment socket, pressure equipment connection: standardized NW corresponds Dimension drawing, Medium: Filtered, oiled or filtered non-oiled compressed air or other gaseous media with a permissible viscosity according to ISO-VG 10. Operating temperature: 10 to +50 °C, basic dimensions with socket H 47.0, L 26.5, B 16.0 mm. 3/2-way design NO for DC with NW 1.0 and 8.0 bar pressure output type 64,017. Function: NO (zero position open), coil power: Approx. 4.6 W, drop-off power: 0.15 W, pick-up time: Approx. 5.0 to 10 ms, drop-off time: Approx. 3.0 to 5.0 ms, nominal width: NW 1.0, flow: As per diagram, kV-value: 0.45 l/min. Technical characteristics (type, nominal voltage, nominal resistance, nominal current): 64,017 24 V, 124 Ohm, 193 mA

This text is machine translated.
