Kern OSF 439 OSF439 Stereo microscope Binocular 40 x Reflected light, Transmitted light

1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Fri 30 Oct

20 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions

Number
Total (€ 325.00 / piece)
€ 325.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included

Highlights & Details

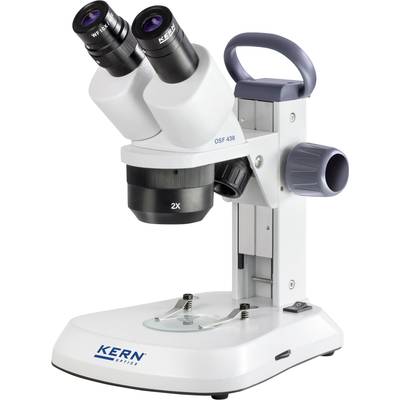

Stereo microscope OSF 439

  • Stereo (Greenough)
  • Binocular
  • Mechanical safe stand
  • LED on-light and the transmitted light

Technical specifications

  • Optical System: Greenough
  • Oculars fixed: yes
Product type

Stereo microscope

Type

Binocular

Type

Upright

Optical magnification (min.)

10 x

Optical magnification (max.)

40 x

Clearance (min.)

57 mm

Lighting type

Reflected light

Transmitted light

Bulb type

LED (monochrome)

Bulb rating

1 W

Operating voltage

100 - 240 V / AC

Dim

(L x W x H) 27.6 x 22.7 x 17 cm

Length

27.6 cm

Width

22.7 cm

Height

17 cm

Weight

2.5 kg

Features

dimmable

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1320910 Kern OSF 439 OSF439 Stereo microscope Binocular 40 x Reflected light, Transmitted light

User & Safety Instructions

User & Safety Instructions 1320910 Kern OSF 439 OSF439 Stereo microscope Binocular 40 x Reflected light, Transmitted light

Information

Information 1320910 Kern OSF 439 OSF439 Stereo microscope Binocular 40 x Reflected light, Transmitted light

Description

The CORE OSF-4 is a very robust, stable and easy-to-use stereo microscope. Due to its mechanical stand, it is particularly sturdy. The models OSF 434 and OSF 435 have 3 lenses and an additional fine operation for precise focusing. In addition to its excellent optical properties, it offers with its large working area highest comfort in this class. These models are ideal for schools, workshops and training environments. A, depending on the model, the LED on-light and the transmitted light illumination unit always provides reliable for a good illumination. The variety of lens combinations and eyepieces leaves nothing to be desired. The eyepieces are fixed in the tube, in order to protect you against loss or damage. A key feature of these variables and at the same time robust microscope series is the stable and precisely adjustable mechanics. This is indicated by the functional and ergonomic design.

This text is machine translated.

Features

  • Eyepiece WF 10x/20 mm dia.
  • Dust protection hood (485 x 440 mm)
  • Ac Adapter for LED stereo microscopes 230V (input) 0.6V (output)

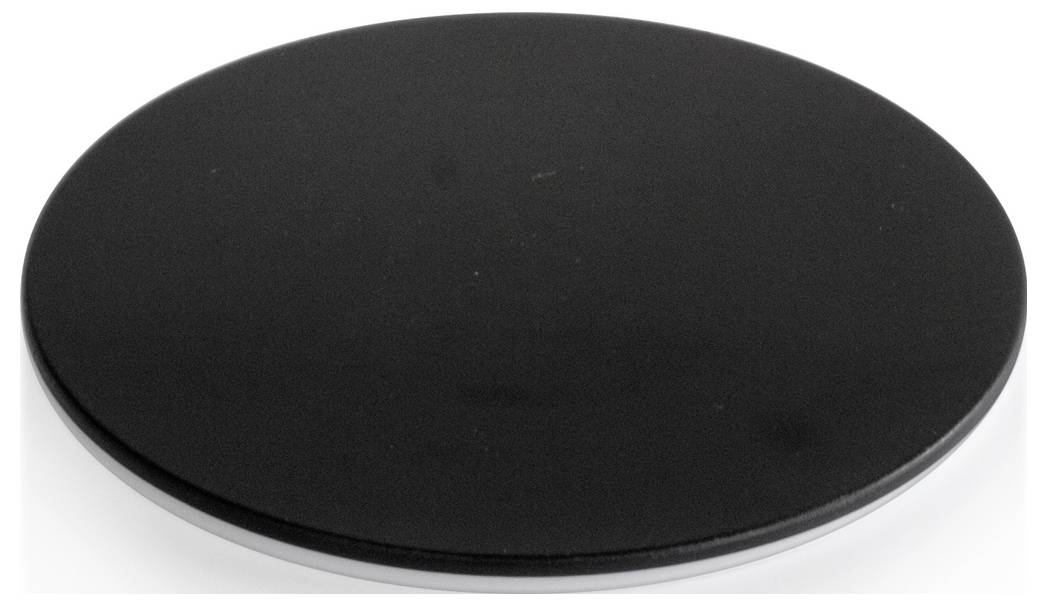

  • Base insert (B/W)

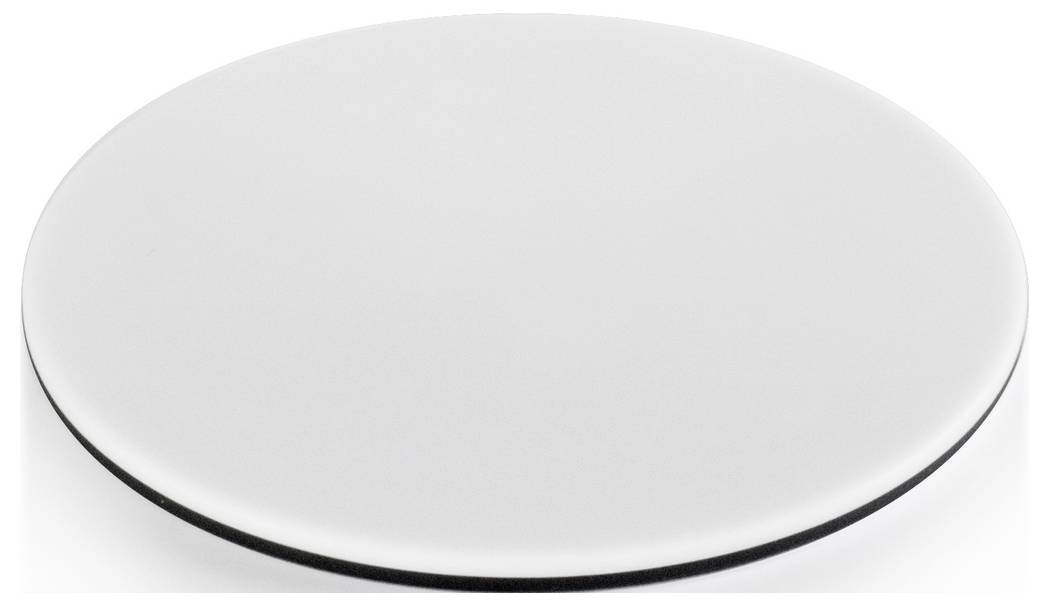

  • Base insert (milk glass)
  • Eyepiece SWF 10x/23 mm diameter (optional)
  • Eyepiece WF 15x/15 mm diameter (optional)
  • Eyepiece WF 20x/10 mm diameter (optional)
  • Eyepiece WF 5x/Ø 16.2 mm (optional)
  • Eyepiece adapter for camera (stereo microscopes) (optional)
  • Tubus-Gro size 30.5 mm

Scope of delivery

  • Eyepiece WF 10x/20 mm dia.
  • Dust protection hood (485 x 440 mm)
  • Ac Adapter for LED stereo microscopes 230V (input) 0.6V (output)
  • Base insert (B/W)
  • Base insert (milk glass).
