Name: KOPOS KPL64-50/3LDHF_KA Dry lining box Windproof (L x W x H) 209 x 209 x 68 mm 1 pc(s)
Brand: KOPOS
SKU: 3218946
Availability: InStock

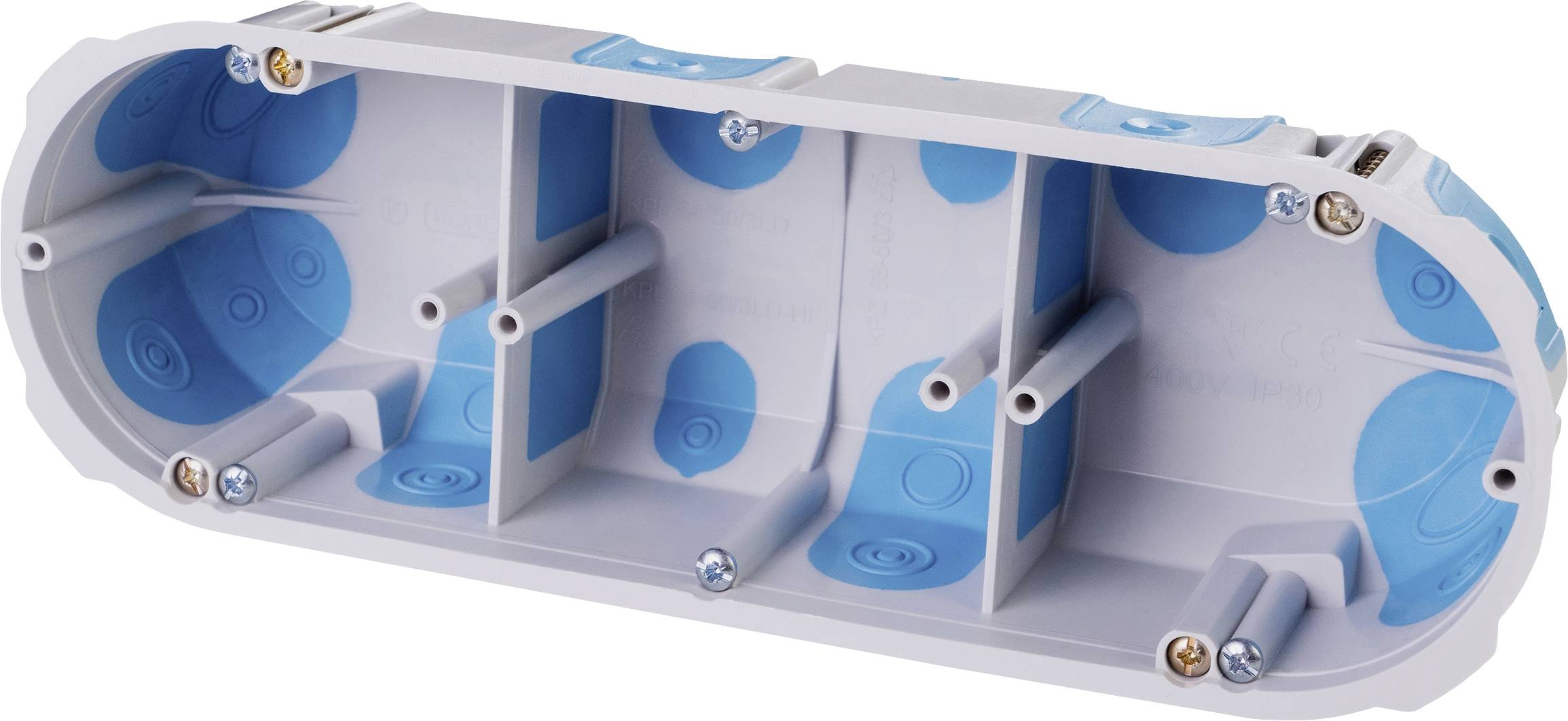

An oval, grey flush-mounted junction box with blue accents and multiple slots, suitable for electrical installations in walls.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

16 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 6.49 / piece)

€ 6.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

3-way connector socket for hollow wall, halogen-free

During installation, the edge of the hollow wall does not need to be lowered
Entrance holes made from elastic material
Air tightness is ensured even in case of pierced pipe

Technical specifications

Product type: Dry lining box

Features: Windproof

Mounting type: Cavity wall

Max. fire resistance: 850 °C

Content: 1 pc(s)

Factory colour: Blue
White

Dim: (L x W x H) 209 x 209 x 68 mm

Length: 209 mm

Width: 209 mm

Height: 68 mm

Depth: 50 mm

Documents & Downloads

Datasheet

Datasheet 3218946 KOPOS KPL64-50/3LDHF_KA Dry lining box Windproof (L x W x H) 209 x 209 x 68 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3218946 KOPOS KPL64-50/3LDHF_KA Dry lining box Windproof (L x W x H) 209 x 209 x 68 mm 1 pc(s)

Description

Suitable for cables with a voltage up to 400V and a current up to max. 16 A. Can be used for installation in hollow walls (e.g., gypsum plasterboard). Suitable for sound insulation walls with maximum noise insulation RW = 69 dB, suitable for environments with increased demand for protection of persons and property.

This text is machine translated.

Features

The box is equipped with device screws and screws for installation in hollow walls
Suitable for low-energy and passive buildings
Entrance holes made from elastic material
The installation takes place after tearing out the pre-pressed input in the diaphragm
Penetration membranes for pipes (2x -ø16-20 mm, 2x ø20-25 mm)
Air tightness is ensured even in case of pierced pipe
The installation avoids air flow
Mounting screws have a three-speed thread for quick installation
Possible to use screwless terminals
By application of the lid V 68 IP 30

Description

Features

The box is equipped with device screws and screws for installation in hollow walls
Suitable for low-energy and passive buildings
Entrance holes made from elastic material
The installation takes place after tearing out the pre-pressed input in the diaphragm
Penetration membranes for pipes (2x -ø16-20 mm, 2x ø20-25 mm)
Air tightness is ensured even in case of pierced pipe
The installation avoids air flow
Mounting screws have a three-speed thread for quick installation
Possible to use screwless terminals
By application of the lid V 68 IP 30
