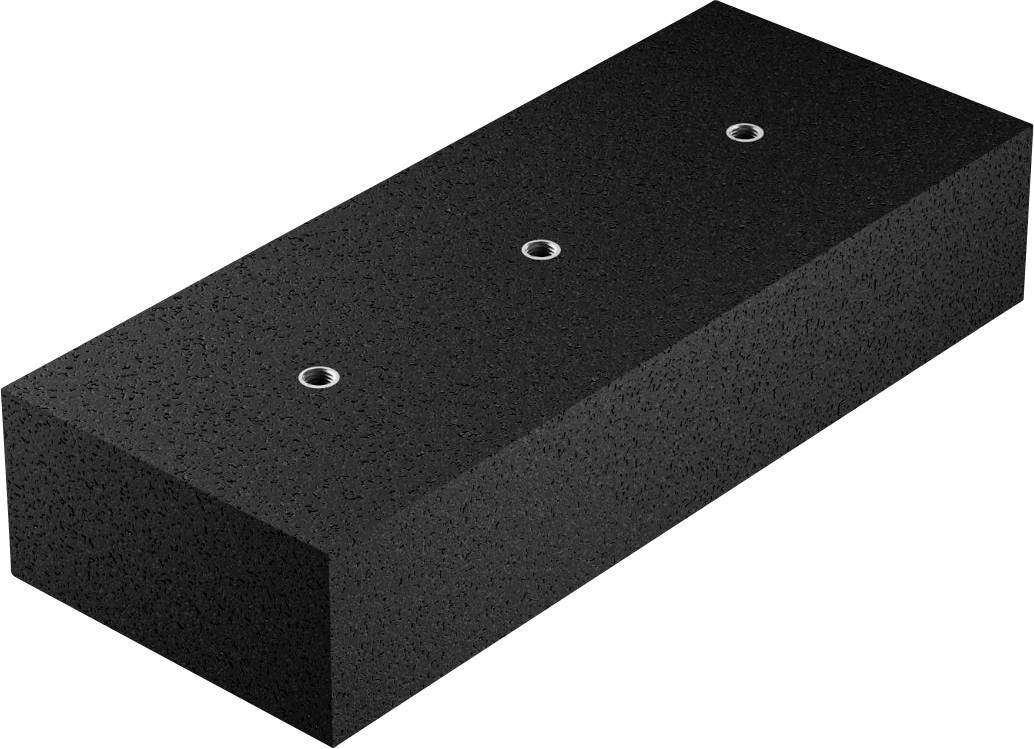

KOPOS PPS1 3XM8_GMLZ Base Socket (W x H x D) 250 x 50 x 100 mm 1 pc(s) Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 15.99 / piece)
€ 15.99
incl. VAT
14-day return policy included
Highlights & Details
Support for cable trays on flat roofs
- Made of UV resistant SBR rubber granules
- On the lower side of the support aluminum foil with anti-slip coating
- Serves as an insulating layer for direct contact with the PVC roof material
Technical specifications
- Product type
Base
- Component
Socket
- Content
1 pc(s)
- Factory colour
Black
- Dim
(W x H x D) 250 x 50 x 100 mm
- Width
250 mm
- Height
50 mm
- Depth
100 mm
Documents & Downloads
Datasheet
Datasheet 3476361 KOPOS PPS1 3XM8_GMLZ Base Socket (W x H x D) 250 x 50 x 100 mm 1 pc(s) Black
User & Safety Instructions
User & Safety Instructions 3476361 KOPOS PPS1 3XM8_GMLZ Base Socket (W x H x D) 250 x 50 x 100 mm 1 pc(s) Black
Description
The support consists of UV resistant SBR rubber granules - On the bottom of the support there is an aluminum foil with anti-slip coating, which serves as an insulating layer for direct contact with the PVC roof material.
This text is machine translated.
This text is machine translated.
Features
- The supports are used to secure cable channels on flat roofs - 3 M8 nuts are pressed into the support
- The cable channel is attached to the base with a screw S 8X20
- The grid channel is attached with the DZCZ threaded rod attachment and 1 screw S 8X20
- We recommend a maximum tightening torque of 2 Nm
- The support can also be used as a base for fixing other brackets, such as mounting profiles, ceiling profiles, etc.
- SBR rubber granules 1-3 mm
- Metal rail with Magelis® coating
- Nut – non-electrolytic coated steel with zinc micro-blades.
Scope of delivery
- 1 piece
