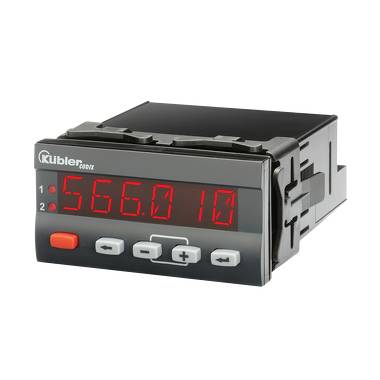

Kübler Group Codix 566 Process display
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 309.00 / piece)
€ 309.00
incl. VAT
14-day return policy included
Highlights & Details
Kübler 566 process expensive device AC
- 10 measurements/second
- Tare weight reading.
- Sensor power supply
Technical specifications
- Protection class: 2
- Pollution degree 2
- Housing material: polycarbonate UL 94 V-2
- Pulse duration:> 100 ms.
- Product type
Process display
- Reading type
Pulse
- Type
Codix 566
- Display technology
LED
IP65 (on front)
- Dim
(L x W x H) 102 x 96 x 48 mm
- Weight
180 g
- Width
96 mm
- Height
48 mm
- Length
102 mm
- Digit height
14 mm
- Connections
Power supply and outputs: Screw terminal
8-pole
Signal and control inputs: Screw terminal
9-pin*
- Digits
6 Stellen
- Display (details)
14-segment LED
- Switching current
Max. 5 A
- Temperature range
-20 - +65 °C
- Operating voltage
100 - 240 V AC, ±10 %
- Switching capacity
1250VA/150 W
Documents & Downloads
Datasheet
Datasheet 107627 Kübler Group Codix 566 Process display
User & Safety Instructions
User & Safety Instructions 107627 Kübler Group Codix 566 Process display
Description
The devices with Tota Lisa Gate Function show in high resolution measuring values of standard signals or strain gauges and monitor and rules 2 limit values. Very easy to use thanks to the easy-to-read 14-segment LED display, scrolling help texts and handy quick reference guide.
This text is machine translated.
This text is machine translated.
Features
- Galvanic separation
- 10 measurements/second
- Characteristics via 12 points
- 2 relay outputs with limit value monitoring with hysteresis and on/off delay function.
- Min./max. memory function individually resettable
- Tare weight reading.
- Time-controlled totalisator-funktion to aufsummierung of the measured values, separately resettable
- Sensor power supply
- Clear-text programming.
Scope of delivery
- Panel mounting clip
- Gasket
- Operating Instructions multilingual
- A sheet of self-adhesive symbols
- Quick Reference Guide.
