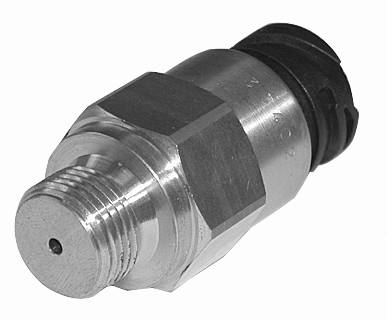

KYOCERA/AVX Pressure sensor 1 pc(s) 9676010930 0 bar up to 6 bar M18 (Ø x L) 28 mm x 58 mm
EAN:
Part number:
Item no:
Product type
Pressure sensor
Connector
M18
Pressure reading range (max.)
6 bar
Max. operating voltage
5.5 V
Type
9676010930
Datasheet (PDF)
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
Only 9 Piece(s) available
Technical specifications
- Product type
Pressure sensor
- Type
9676010930
- Connector
M18
- Outputs
Voltage (analogue)
- Output signal (min.)
0.5 V
- Output signal (max.)
4.5 V
- Resolution
2.5 %
- Accuracy
0.5 %
- Pressure reading range (min.)
0 bar
- Pressure reading range (max.)
6 bar
- Pressure reading range
0 bar up to 6 bar
- Min. operating voltage
-4.5 V
- Max. operating voltage
5.5 V
- Operating voltage
-4.5 - 5.5 V
- Burst load
40 bar
IP6K9K
- Min. temperature
-40 °C
- Max. temperature
+125 °C
- Length
58 mm
- (Ø)
28 mm
- Dim
(Ø x L) 28 mm x 58 mm
- Weight
110 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2826984 KYOCERA/AVX Pressure sensor 1 pc(s) 9676010930 0 bar up to 6 bar M18 (Ø x L) 28 mm x 58 mm
