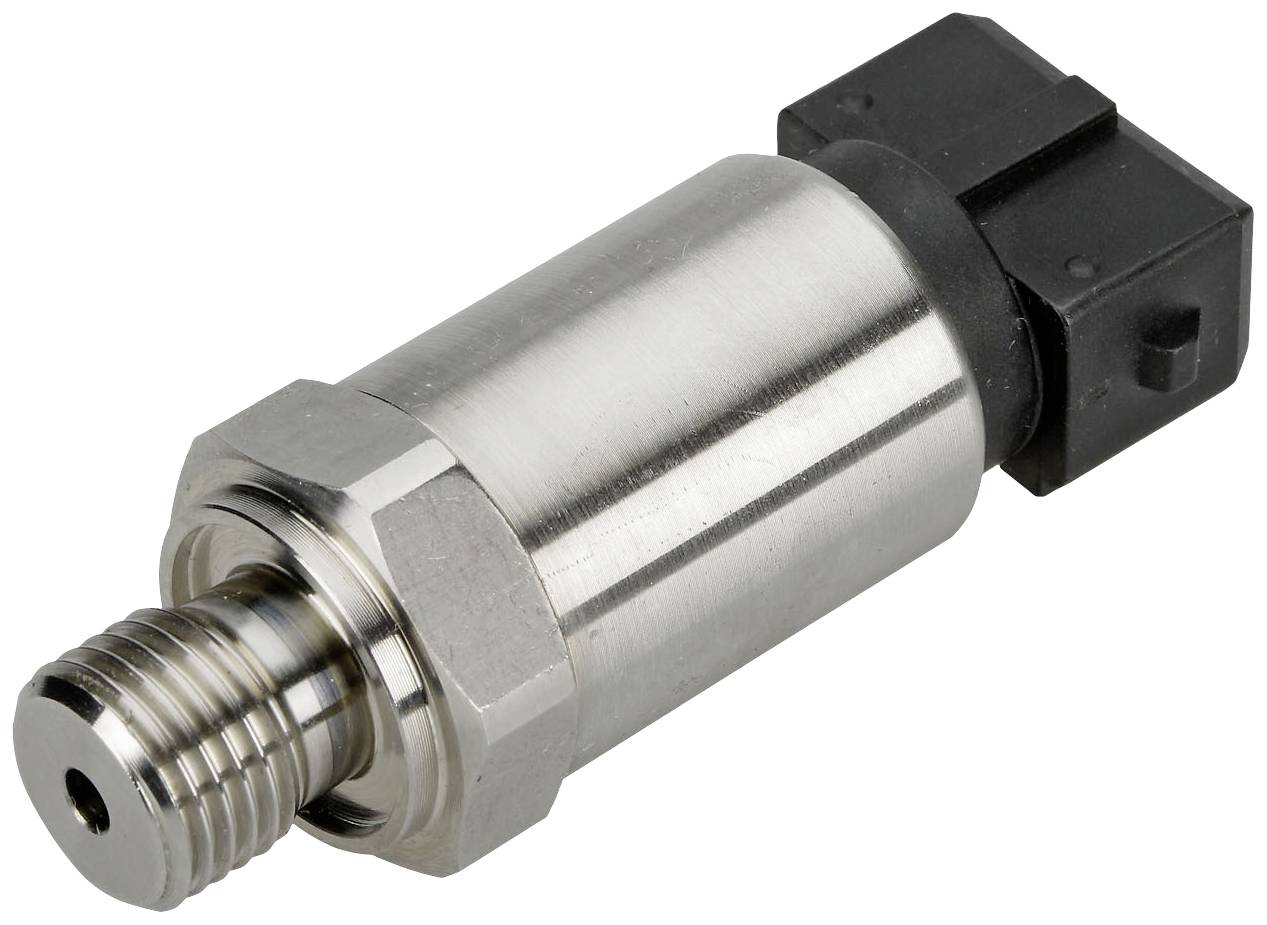

KYOCERA/AVX Pressure sensor 1 pc(s) 9670501016 -1 bar up to 1 bar G 1/4" (Ø x L) 22 mm x 86 mm
EAN:
Part number:
Item no:
Product type
Pressure sensor
Connector
G 1/4"
Pressure reading range (max.)
1 bar
Max. operating voltage
30 V
Type
9670501016
Datasheet (PDF)
Number
Total (€ 210.08 / piece)
€ 210.08
plus VAT.
Only 8 Piece(s) available
Technical specifications
- Product type
Pressure sensor
- Type
9670501016
- Connector
G 1/4"
- Response time
1 ms
- Outputs
Voltage (analogue)
- Output signal (min.)
0.5 V
- Output signal (max.)
4.5 V
- Resolution
2 %
- Accuracy
0.5 %
- Pressure reading range (min.)
-1 bar
- Pressure reading range (max.)
1 bar
- Pressure reading range
-1 bar up to 1 bar
- Min. operating voltage
9 V
- Max. operating voltage
30 V
- Operating voltage
9 - 30 V
- Burst load
24 bar
IP67
- Min. temperature
-40 °C
- Max. temperature
+125 °C
- Length
86 mm
- (Ø)
22 mm
- Dim
(Ø x L) 22 mm x 86 mm
- Weight
60 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2826979 KYOCERA/AVX Pressure sensor 1 pc(s) 9670501016 -1 bar up to 1 bar G 1/4" (Ø x L) 22 mm x 86 mm
User & Safety Instructions
User & Safety Instructions 2826979 KYOCERA/AVX Pressure sensor 1 pc(s) 9670501016 -1 bar up to 1 bar G 1/4" (Ø x L) 22 mm x 86 mm
