Name: B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1380-009 0 bar up to 25 bar M12 (4-pin)
Brand: B + B Thermo-Technik
SKU: 3089426
Availability: InStock

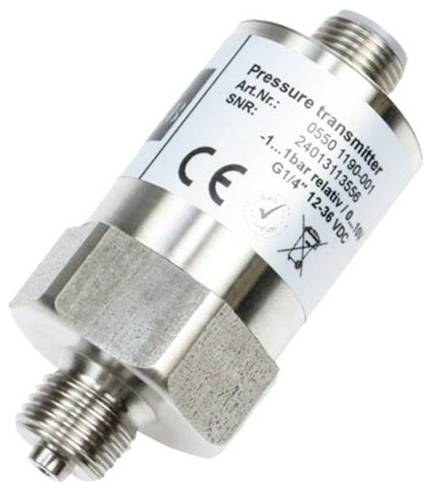

Metal pressure transmitter sensor with threaded ends and a label showing product and voltage specifications<br>

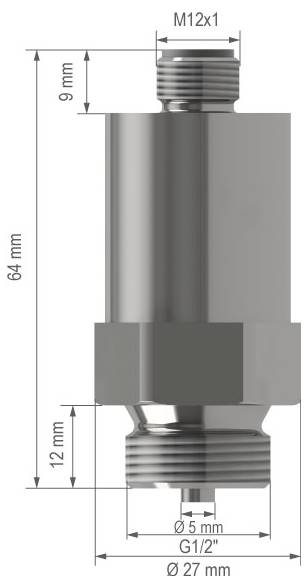

Dimensioned diagram of a cylindrical threaded adapter with top M12x1 male thread and bottom G1/2 male thread; 64 mm tall, 27 mm diameter.

1/2

Image similar

Product type

Pressure transducer

Connector

M12 (4-pin)

Model

Relative pressure

Pressure reading range (max.)

25 bar

Max. operating voltage

5.30 V DC

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 139.99 / piece)

€ 139.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Pressure transmitter with M12-Socket connector

High-quality stainless steel housing; very sturdy construction

Technical specifications

Output signal, digital, I²C, burst pressure, 75 bar, name, stainless steel pressure transmitter, pressure measuring type, relative pressure, application temperature, -20...+80 °C, electrical connection, M12 socket plug, EMC interference emission, EN 61000-6-3: 2011, EMC immunity, EN 61000-6-1: 2007, pressure measuring range, 0...25 bar, process connection, G1/2", residual error linearity/hysteresis, <±0.4% FS, protection class, IP65, power supply, 3.0...5.3 V DC / 5mA, temperature coefficient, TCO < ±0.015 % FS / K ; < TCG ±0.010 % FS / K, material housing, stainless steel 1.4305, material, sensor: ceramic measuring cell, Allowable Burden, Ra[?]<(UV[volts]-10V) / 0.02 A (with output 4…20 mA)

Product type: Pressure transducer

Type: 0550 1380-009

Connector: M12 (4-pin)

Model: Relative pressure

Outputs: I2C

Interfaces: M12 plug

Pressure reading range (min.): 0 bar

Pressure reading range (max.): 25 bar

Pressure reading range: 0 bar up to 25 bar

Min. operating voltage: 3 V DC

Max. operating voltage: 5.30 V DC

Operating voltage: 3 - 5.30 V DC

Operating current: 5 mA

Burst load: 75 bar

: IP65

Min. temperature: -20 °C

Max. temperature: 80 °C

RoHS-compliant: Yes

Content: 1 pc(s)

Variants(All information include VAT, plus shipping costs)

Pressure reading range (max.)

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1380-009 0 bar up to 25 bar M12 (4-pin)

Item no:3089426

Fast track dispatch on Thu 29 Oct

2 Piece(s)Conrad Electronic

This article

25 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1380-001 -1 bar up to 1 bar M12 (4-pin)

Item no:3089265

Unavailable

Conrad Electronic

1 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1380-003 0 bar up to 1.6 bar M12 (4-pin) Piece

Item no:3089343

Unavailable

Conrad Electronic

1.6 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1380-004 0 bar up to 2.5 bar M12 (4-pin)

Item no:3089534

Unavailable

Conrad Electronic

2.5 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 159.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1380-005 0 bar up to 4 bar M12 (4-pin) Piece

Item no:3089339

Unavailable

Conrad Electronic

4 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1380-006 0 bar up to 6 bar M12 (4-pin)

Item no:3089435

Unavailable

Conrad Electronic

6 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1380-007 0 bar up to 10 bar M12 (4-pin) Piece

Item no:3089480

Unavailable

Conrad Electronic

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1380-008 0 bar up to 16 bar M12 (4-pin)

Item no:3089324

Unavailable

Conrad Electronic

16 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1380-010 0 bar up to 40 bar M12 (4-pin)

Item no:3089502

Unavailable

Conrad Electronic

40 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1380-011 0 bar up to 60 bar M12 (4-pin)

Item no:3089536

Unavailable

Conrad Electronic

60 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

Documents & Downloads

Datasheet

Datasheet 3089426 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1380-009 0 bar up to 25 bar M12 (4-pin)

User & Safety Instructions

User & Safety Instructions 3089426 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1380-009 0 bar up to 25 bar M12 (4-pin)

Description

These pressure transmitters with digital output and M12 connection are Ideal suitable for measuring static and dynamic relative pressures in liquids or gases.
