Buy Senseca Pressure sensor 1 pc(s) DX 210-200kPa 200 kPa (max) (Ø x L) 21.7 mm x 62 mm

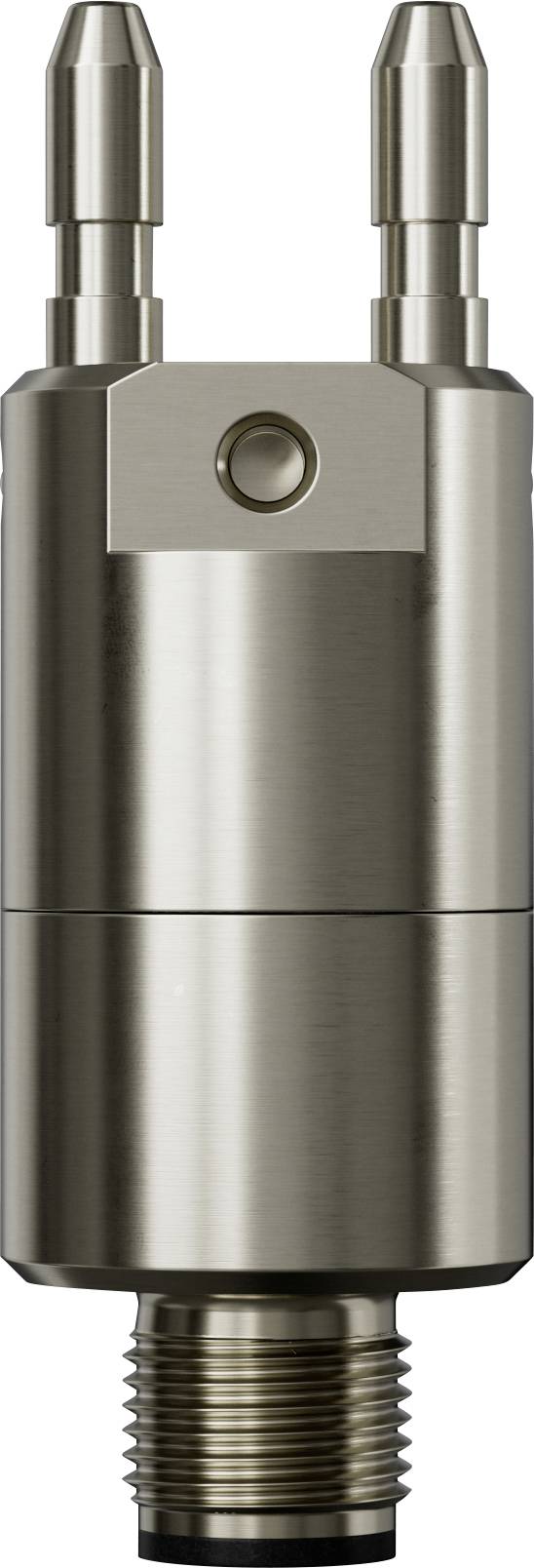

A metallic cylindrical sensor with two protruding connectors at the top and a threaded fitting at the bottom, likely used for industrial applications.

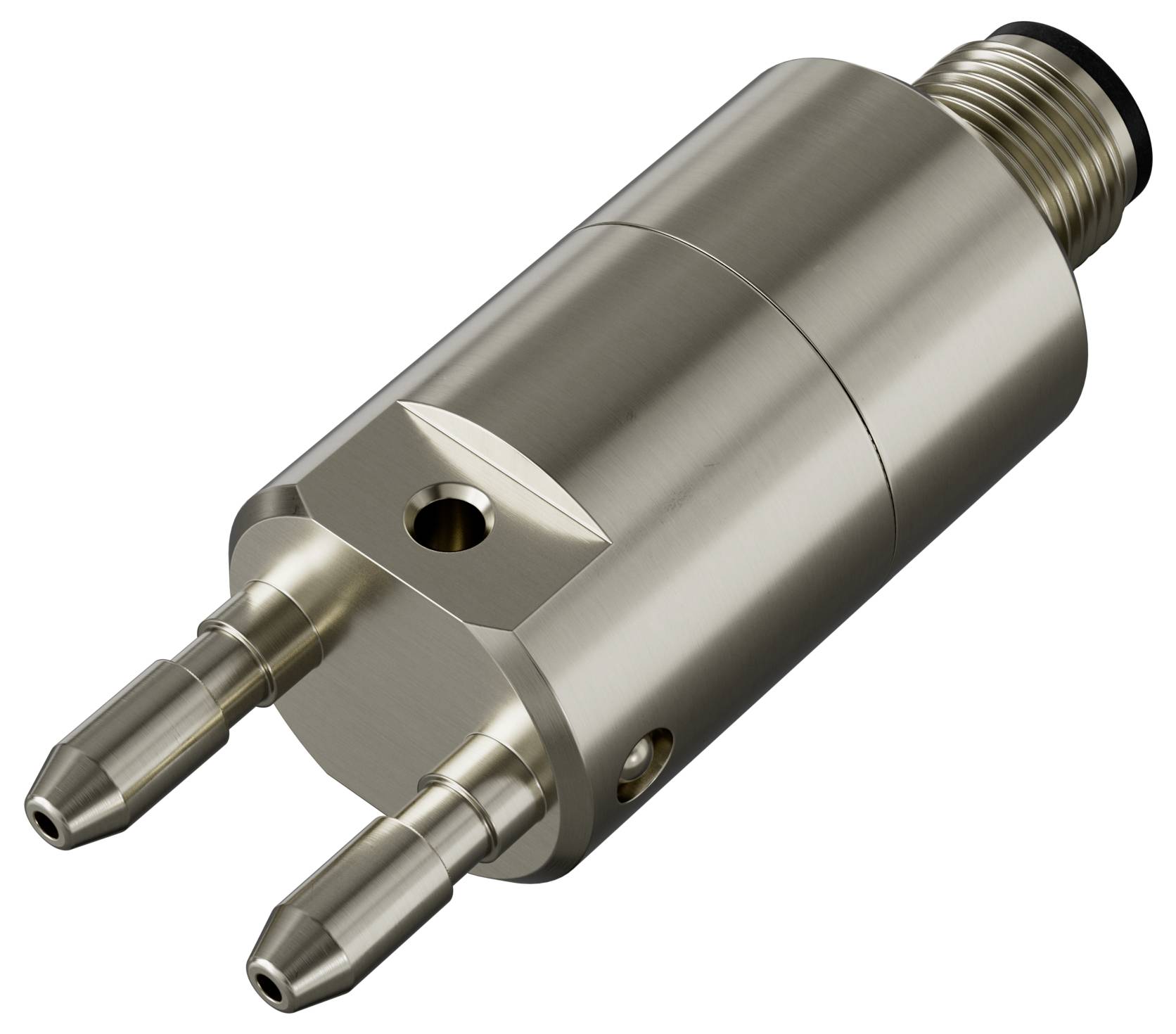

A metallic industrial connector with two protruding cylindrical pins and a threaded end, used for secure mechanical and electrical connections.

1/2

Product type

Pressure sensor

Pressure reading range (max.)

200 kPa

Type

DX 210-200kPa

Pressure reading range

200 kPa (max)

IP rating

IP65

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 189.07 / piece)

€ 189.07

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

DX 210-200KPA Digital differential pressure sensor with hose connection for gases (e.g.

Technical specifications

Material: Stainless steel
Use: Air and non-aggressive, dry gases only

Product type: Pressure sensor

Type: DX 210-200kPa

Pressure reading range (max.): 200 kPa

Pressure reading range: 200 kPa (max)

: IP65

Min. temperature: -25 °C

Max. temperature: 85 °C

Length: 62 mm

(Ø): 21.7 mm

Dim: (Ø x L) 21.7 mm x 62 mm

Weight: 74 g

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3046669 Senseca Pressure sensor 1 pc(s) DX 210-200kPa 200 kPa (max) (Ø x L) 21.7 mm x 62 mm

User & Safety Instructions

User & Safety Instructions 3046669 Senseca Pressure sensor 1 pc(s) DX 210-200kPa 200 kPa (max) (Ø x L) 21.7 mm x 62 mm

Description

DX 210 and DX 240 are a series of miniature absolute and differential pressure digital sensors for the PRO D01 / PRO D05 hand-held measuring devices.

The measurement is temperature compensated to ensure higher accuracy. The sensor is factory calibrated and is immediately ready for use. The calibration data is stored in the sensor so that it can be exchanged without recalibration. Equipped with 4-pin M12 connector "DX sensor standard", connectable to PRO-DEX multi-function measuring devices.
