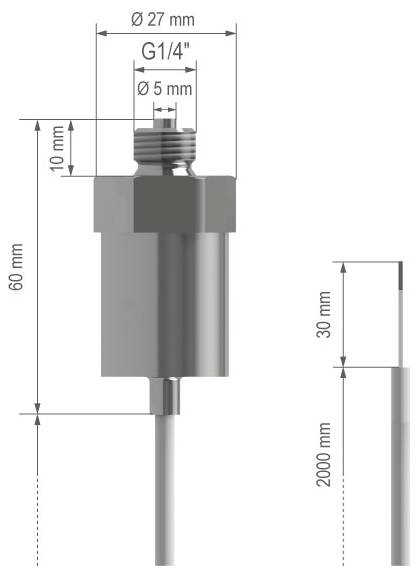

Image similar
1/2
Image similar
B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1292-007 0 bar up to 10 bar Cable
EAN:
Part number:
Item no:
Product type
Pressure transducer
Connector
Cable
Model
Relative pressure
Pressure reading range (max.)
10 bar
Max. operating voltage
24 V DC
Datasheet (PDF)
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Pressure transmitter with 2m-cable
- High-quality stainless steel housing; very sturdy construction
Technical specifications
- Output signal, 4...20 mA, burst pressure, 30 bar, designation, Pressure transmitter stainless steel, pressure measuring type, relative pressure, operating temperature, -20...+80 °C, Electrical connection, cable 2 m, EMC emission, EN 61000-6-3: 2011, EMC immunity, EN 61000-6-1: 2007, measuring range pressure, 0...10 bar, process connection, G1/4", Residual error linearity/hysteresis, <±0.4% FS, protection class, IP65, Power supply, 14...24 V DC, temperature coefficient, TCO < ±0.015 % < FS/K; TCG ±0.010 % FS/K, material housing, stainless steel 1.4305, material, sensor: ceramic measuring cell, Allowable Burden, Ra[?]<(UV[volts]-10V) / 0.02 A (with output 4…20 mA)
- Product type
Pressure transducer
- Type
0550 1292-007
- Connector
Cable
- Cable length
2 m
- Model
Relative pressure
- Outputs
Current (analogue)
- Output signal (min.)
4 mA
- Output signal (max.)
20 mA
- Accuracy
0.4 %
- Pressure reading range (min.)
0 bar
- Pressure reading range (max.)
10 bar
- Pressure reading range
0 bar up to 10 bar
- Min. operating voltage
14 V DC
- Max. operating voltage
24 V DC
- Operating voltage
14 - 24 V DC
- Burst load
30 bar
IP65
- Min. temperature
-20 °C
- Max. temperature
80 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3089528 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1292-007 0 bar up to 10 bar Cable
User & Safety Instructions
User & Safety Instructions 3089528 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1292-007 0 bar up to 10 bar Cable
Description
The pressure sensors with 2m connection cable are Ideal suitable for measuring static and dynamic relative pressures in liquids or gases.
