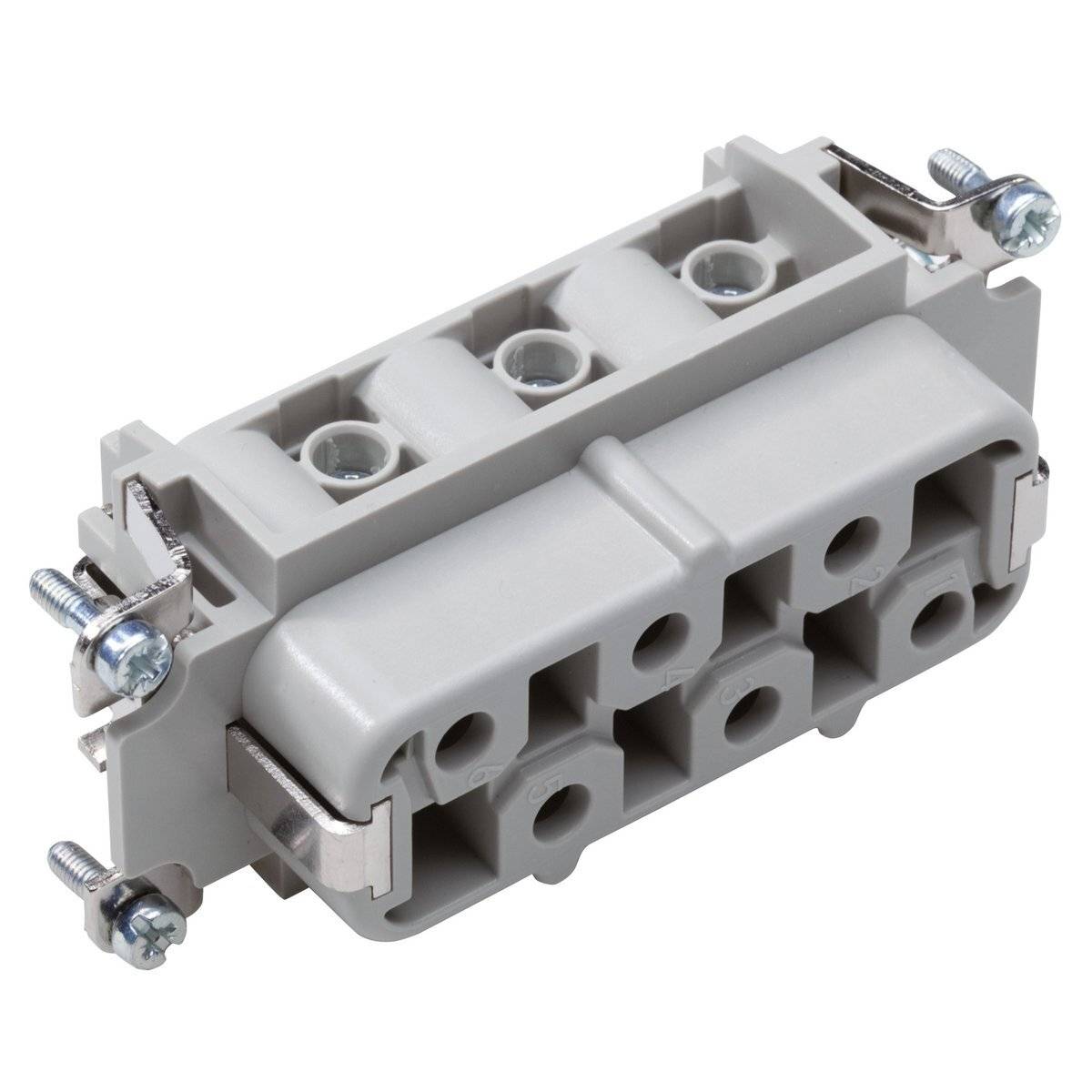

LAPP 10171000 Socket inset EPIC® H-BS 6 Total number of pins 6 + PE 1 pc(s)
Product type
Socket inset
Series
EPIC® H-BS 6
Connection
Screws
Features
+ wire protection
Number of pins
6
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 26.99 / piece)
€ 26.99
incl. VAT
14-day return policy included
Highlights & Details
Socket insert with wire protection Series H-BS 6
Technical specifications
- Product type
Socket inset
- Series
EPIC® H-BS 6
- Features
+ wire protection
- Connection
Screws
- Number of pins
6
- Total no. of pins
6 + PE
- Core cross section (min.)
0.5 mm²
- Core cross section (max.)
6 mm²
- Rated surge voltage
6 kV
- Rated voltage
IEC: 400 V
UL: 600 V
CSA: 600 V
- Test current
IEC: 35 A
UL: 35 A
CSA: 35 A
- Content
1 pc(s)
- Leading contact (PE)
Yes
- Depth
150 mm
- Height
100 mm
- Length
150 cm
- Width
100 mm
- Type
Socket insert
- Connection
Screws
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 744412 LAPP 10171000 Socket inset EPIC® H-BS 6 Total number of pins 6 + PE 1 pc(s)
Information
Information 744412 LAPP 10171000 Socket inset EPIC® H-BS 6 Total number of pins 6 + PE 1 pc(s)
Description
For currents up to 35 A.
This text is machine translated.
This text is machine translated.
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
€ 26.99*
