Image similar

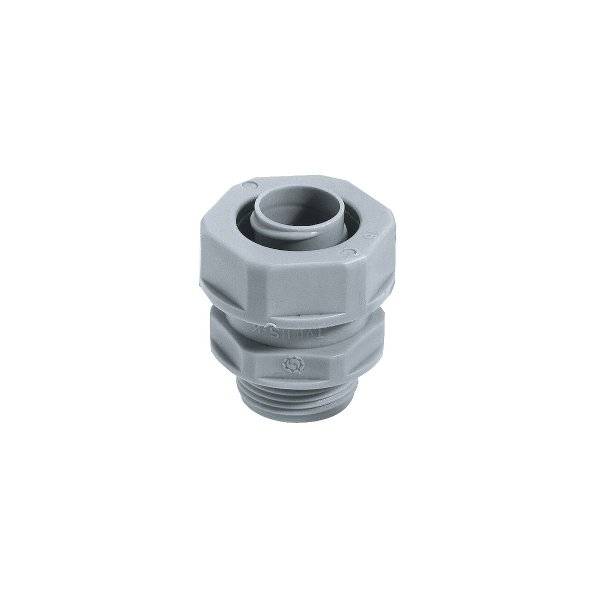

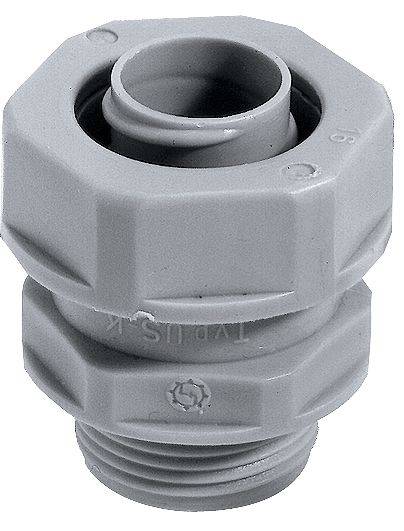

LAPP 52005810 SILVYN® USK PG 7 SGY Hose tail Silver-grey (RAL 7001) PG7 Straight 50 pc(s)
Product type
Hose tail
Content
50 pc(s)
Material
Polypropylene
Conduit features
incl. sealing
Factory colour
Silver-grey (RAL 7001)
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 5.50 / piece)
€ 275.00
incl. VAT
14-day return policy included
Highlights & Details
SILVYN® conduit gland USK-M straight
- Protection class IP 65
- Metric
Technical specifications
- Product type
Hose tail
- Content
50 pc(s)
- Factory colour
Silver-grey (RAL 7001)
- Material
Polypropylene
- Angled
Straight
- Conduit features
incl. sealing
- Compatible with
SILVYN® FPS
SILVYN® FD-PU
SILVYN® SP
SILVYN® SP-PU
- External thread
PG7
- Max. temperature
+110 °C
- Min. temperature
-10 °C
- Manufacturer part #
52005810
- RoHS-compliant
Yes
- Type
SILVYN® USK PG 7 SGY
- Material (details)
PP (sealing ring: TPE)
- Type
SILVYN® USK-M 10x1.0
- Temperature range
-10 - +110 ºC °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1502729 LAPP 52005810 SILVYN® USK PG 7 SGY Hose tail Silver-grey (RAL 7001) PG7 Straight 50 pc(s)
User & Safety Instructions
User & Safety Instructions 1502729 LAPP 52005810 SILVYN® USK PG 7 SGY Hose tail Silver-grey (RAL 7001) PG7 Straight 50 pc(s)
Description
This conduit gland makes sure assembly is always in the correct sequence. The TPE seal and special inner sleeve keep the threaded gland secure against pulling and vibration to Protection class IP65. The necessary SILVYN® EE-k inner sleeve is included in the delivery.
Hints
Prices for other quantities available upon request.
