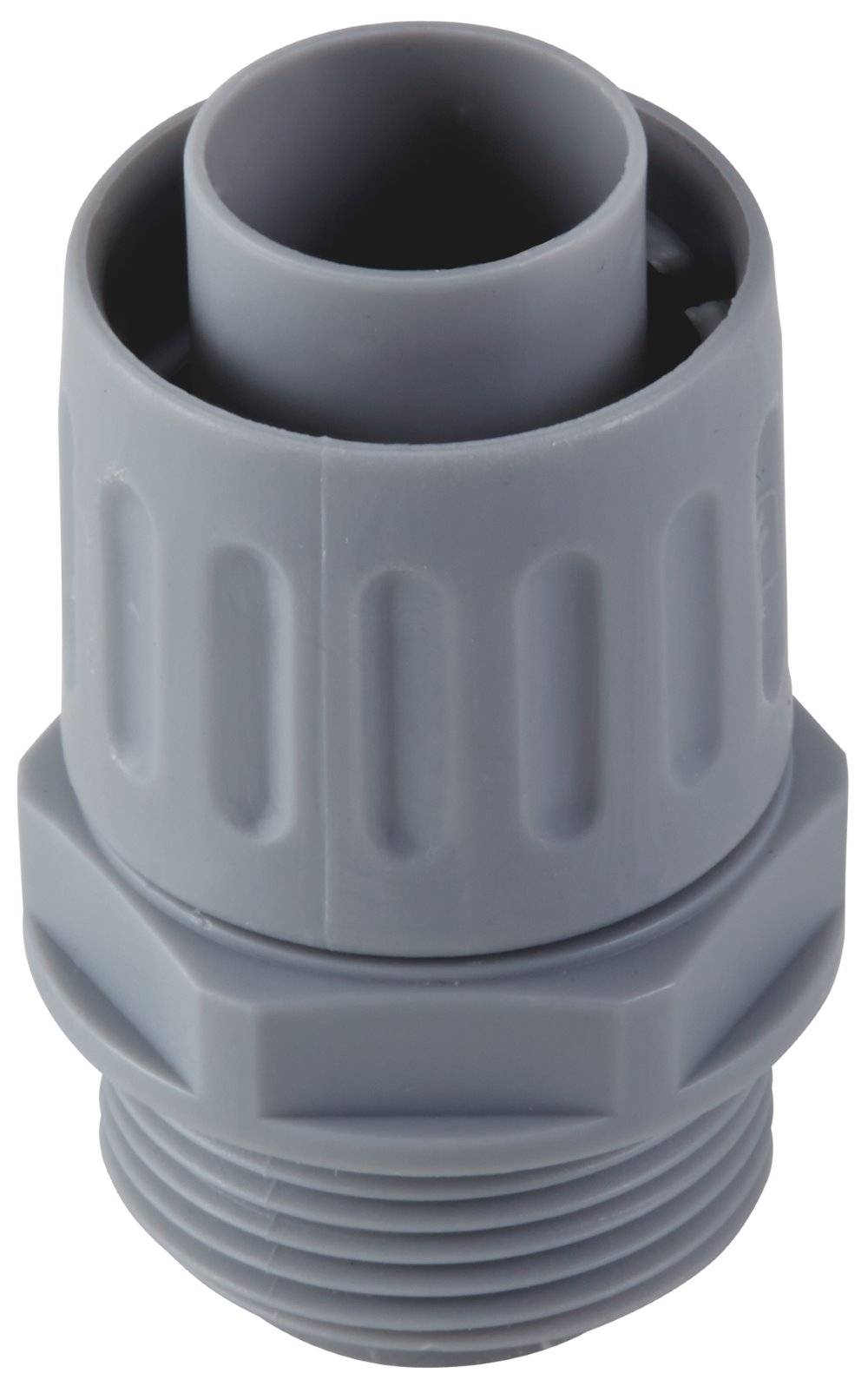

LAPP 55501460 SILVYN® LKI-M 50x1,5 SGY Hose tail Silver-grey (RAL 7001) M50 Straight 25 pc(s)
EAN:
Part number:
Item no:
Product type
Hose tail
Content
25 pc(s)
Material
Polypropylene
Conduit features
strain relief
Factory colour
Silver-grey (RAL 7001)
Datasheet (PDF)
Number (Package size 25 pc(s))
Total (€ 22.82 / piece)
€ 570.59
plus VAT.
Only 1 Set(s) available
Technical specifications
- Product type
Hose tail
- Content
25 pc(s)
- Factory colour
Silver-grey (RAL 7001)
- Material
Polypropylene
- Angled
Straight
- Conduit features
strain relief
- Compatible with
SILVYN® FD-PU
- External thread
M50
- Max. temperature
+110 °C
- Min. temperature
-10 °C
- Manufacturer part #
55501460
- RoHS-compliant
Yes
- Type
SILVYN® LKI-M 50x1,5 SGY
- Material (details)
PP
- Temperature range
-10 - +110 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1502575 LAPP 55501460 SILVYN® LKI-M 50x1,5 SGY Hose tail Silver-grey (RAL 7001) M50 Straight 25 pc(s)
User & Safety Instructions
User & Safety Instructions 1502575 LAPP 55501460 SILVYN® LKI-M 50x1,5 SGY Hose tail Silver-grey (RAL 7001) M50 Straight 25 pc(s)
Description
Consists of the rotating top with built inner Protective sleeve, the catchy, cylindrical outer surface and the metric connection thread with hexagon. In the upper part of the protection sleeve screwed sits vibration-and has a high tensile strength in the screw and meets the requirements according to VDE 0100 and 0113th The smooth interior surfaces ensures a damage-free cable installation. In practice, the possibility of the top independent turn-checking gauge is necessary if the connection is to be assembled without hose.
