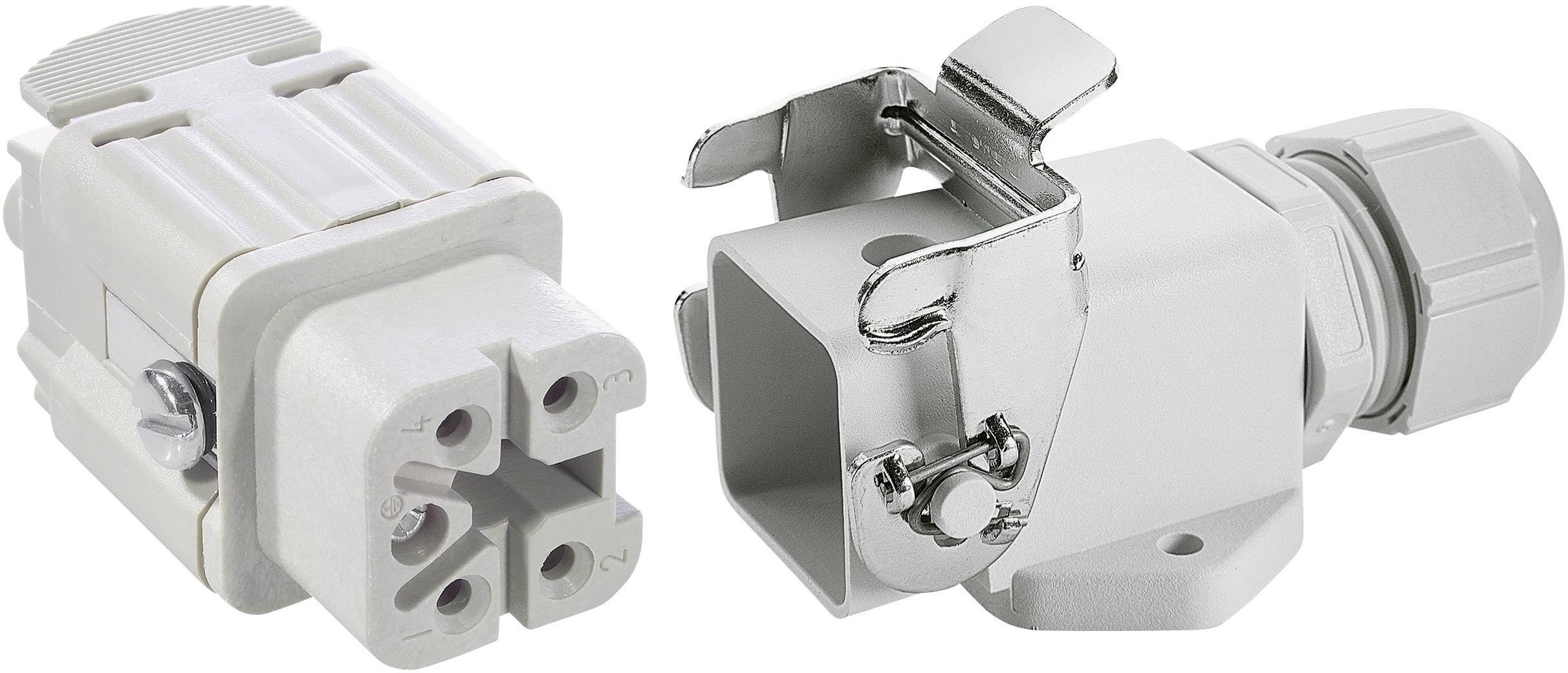

LAPP Connector set EPIC®KIT H-A 4 75009621 4 + PE Screws 1 Set Single
Packaging type
Single
Product type
Connector set
Series
EPIC®KIT H-A 4
Connection
Screws
Number of pins
4
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 19.99 / piece)
€ 19.99
incl. VAT
14-day return policy included
Highlights & Details
EPIC® plug connector H-A 3/4 series
Technical specifications
- Packaging type
Single
- Product type
Connector set
- Series
EPIC®KIT H-A 4
- Number of pins
4
- Total no. of pins
4 + PE
- Connection
Screws
- Test current
IEC: 23 A
UL: 10 A
CSA: 10 A
- Rated voltage
IEC: 400 V
UL: 600 V
CSA: 600 V
- Rated surge voltage
4 kV
- Case material
Plastic
- Max. temperature
+100 °C
- Min. temperature
-40 °C
IP65
- Content
1 Set
- Factory colour
Grey
- Core cross section (max.)
2.50 mm²
- Core cross section (min.)
0.50 mm²
- Features
with screw connection
- Leading contact (PE)
Yes
- Material (details)
Plastic housing
- Type
Rectangular kit
· Bush insert
· Attachment casing angled
· Casing: Thermoplast grey
- Type
angled
- Thread type
M20
- Connection
Screws
- Temperature range
-40 - +100 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 603852 LAPP Connector set EPIC®KIT H-A 4 75009621 4 + PE Screws 1 Set Single
User & Safety Instructions
User & Safety Instructions 603852 LAPP Connector set EPIC®KIT H-A 4 75009621 4 + PE Screws 1 Set Single
Information
Information 603852 LAPP Connector set EPIC®KIT H-A 4 75009621 4 + PE Screws 1 Set Single
Description
The small H-A 3/4 plug connector find its application everywhere, where limited space is available. Screw connection with straight cable inlet of the back. H-A application with screw connection up to 2.5 mm ² cross cable connection.
Scope of delivery
- Socket insert · Angled connector fitting · Housing Thermoplastic Gray
- This text is machine translated.
