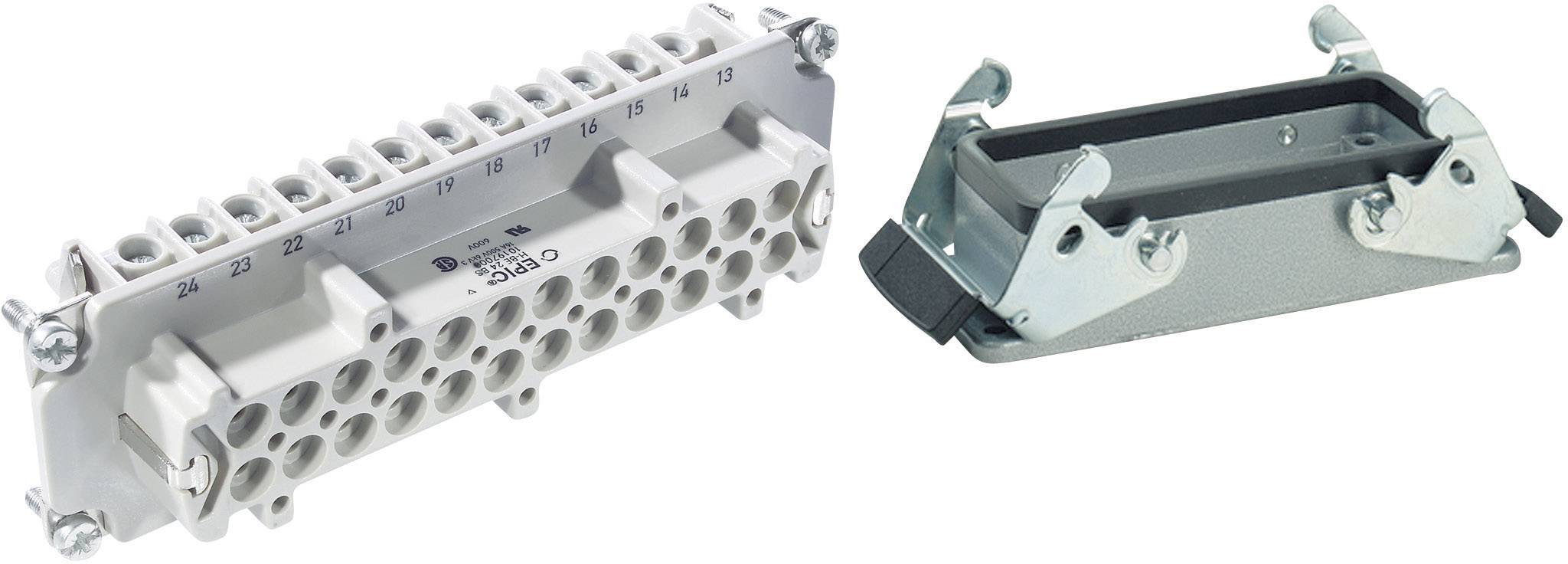

LAPP Connector set EPIC®KIT H-BE 24 75009652 24 + PE Screws 1 Set
Product type
Connector set
Series
EPIC®KIT H-BE 24
Connection
Screws
Number of pins
24
Total no. of pins
24 + PE
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 41.99 / piece)
€ 41.99
incl. VAT
Only 2 Set(s) available
Highlights & Details
EPIC® Plug connector H-BE 24 Series
Technical specifications
- Product type
Connector set
- Series
EPIC®KIT H-BE 24
- Number of pins
24
- Total no. of pins
24 + PE
- Connection
Screws
- Test current
IEC: 16 A
UL: 16 A
CSA: 16 A
- Rated voltage
IEC: 500 V
UL: 600 V
CSA: 600 V
- Rated surge voltage
6 kV
- Case material
Metal
- Max. temperature
+100 °C
- Min. temperature
-40 °C
IP65
- Content
1 Set
- Factory colour
Grey
- Core cross section (max.)
2.5 mm²
- Core cross section (min.)
0.50 mm²
- Leading contact (PE)
Yes
- Type
Rectangular plug kit
Socket insert with wire protection
Straight mount casing
- Type
straight
- Core connector
0.5 - 2.5 mm²
- Contamination level
3
- Connection
Screws
- Temperature range
-40 - +100 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 603890 LAPP Connector set EPIC®KIT H-BE 24 75009652 24 + PE Screws 1 Set
User & Safety Instructions
User & Safety Instructions 603890 LAPP Connector set EPIC®KIT H-BE 24 75009652 24 + PE Screws 1 Set
Information
Information 603890 LAPP Connector set EPIC®KIT H-BE 24 75009652 24 + PE Screws 1 Set
Description
Possible application at high voltages and current strenghts and a high reliability mark the proven EPIC® H-BE series. Areas of application: Machines-and switching cabinet construction, Event technology,Plastics technology, etc.
Scope of delivery
- Socket insert with wire protection · Straight connector fitting
- This text is machine translated.
