Buy Laserliner PocketPlane-Laser 3G Set 150 cm 3-D laser Self-levelling

Laser level on an adjustable tripod, suitable for precise alignment work in construction and interior design contexts.

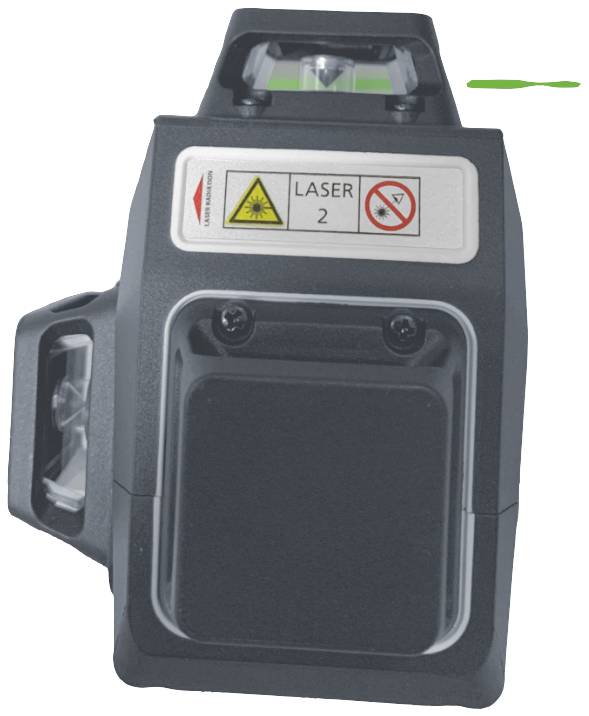

A Class 2 laser device with a radiation warning sticker and a viewing window displaying a green laser line at the top.

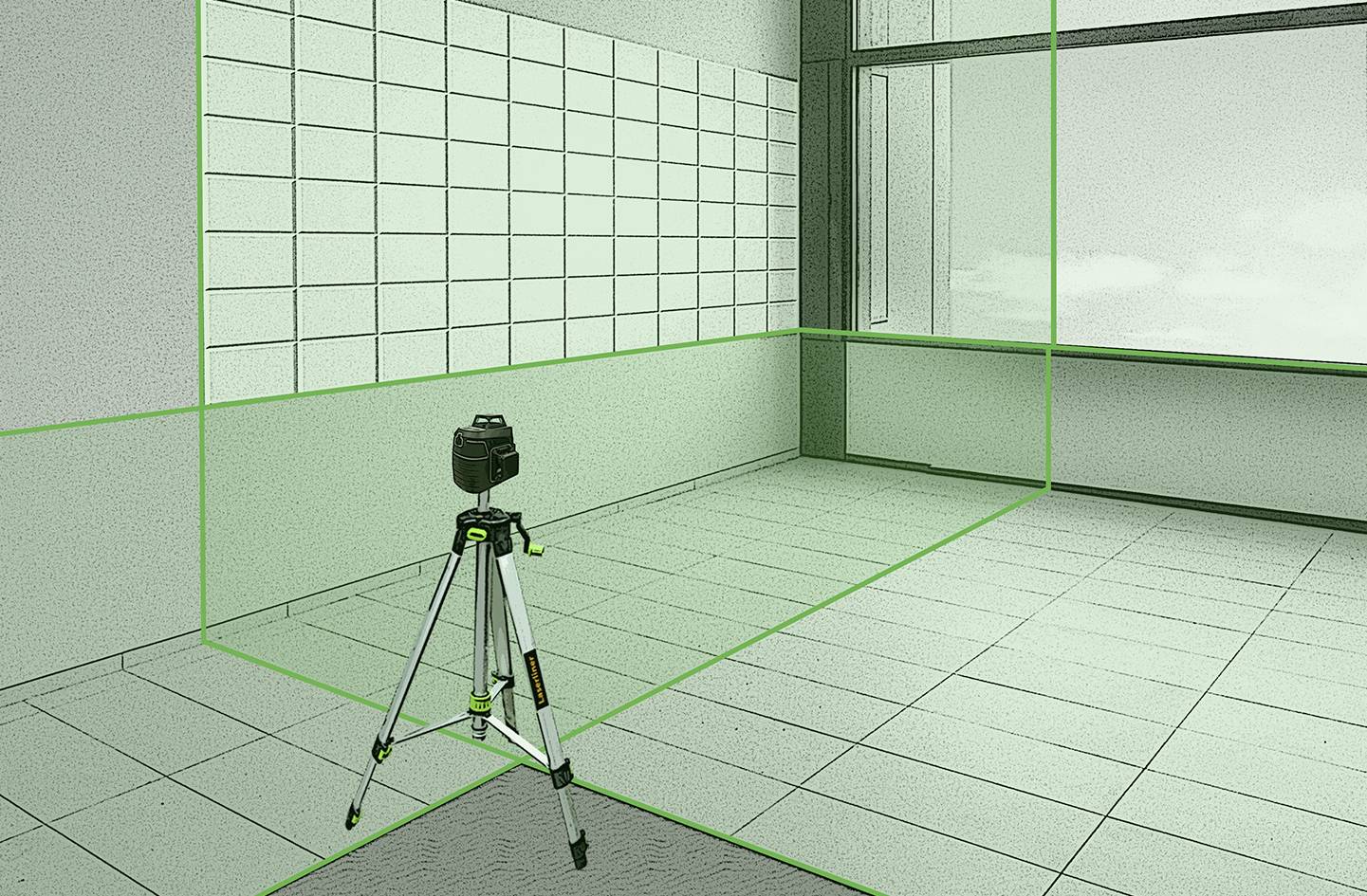

A camera mounted on a tripod scans an empty room with a tiled floor and a wall marked with square grid lines.

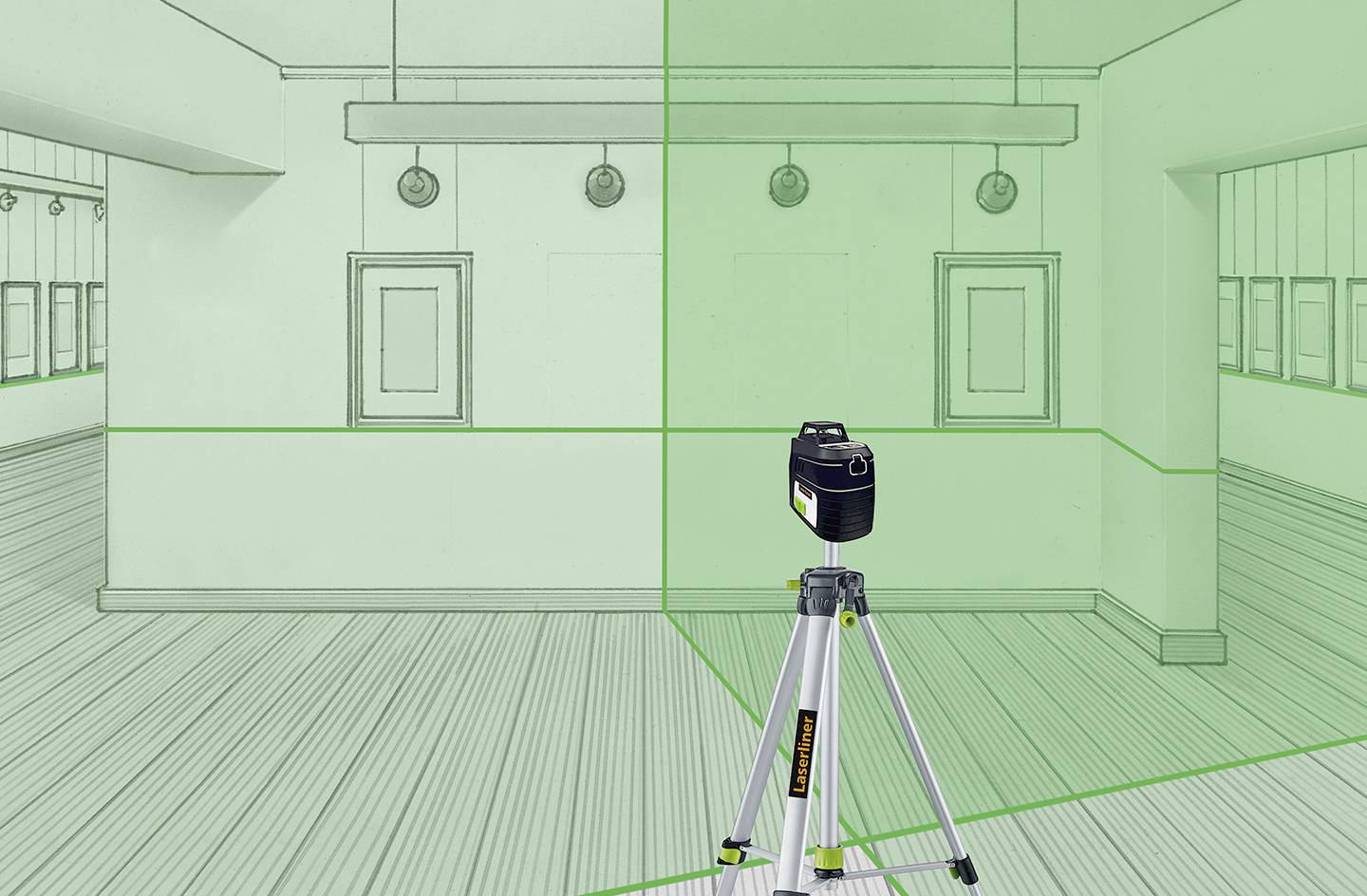

A laser level mounted on a tripod projects green lines on walls and ceiling of a room to facilitate precise measurements.

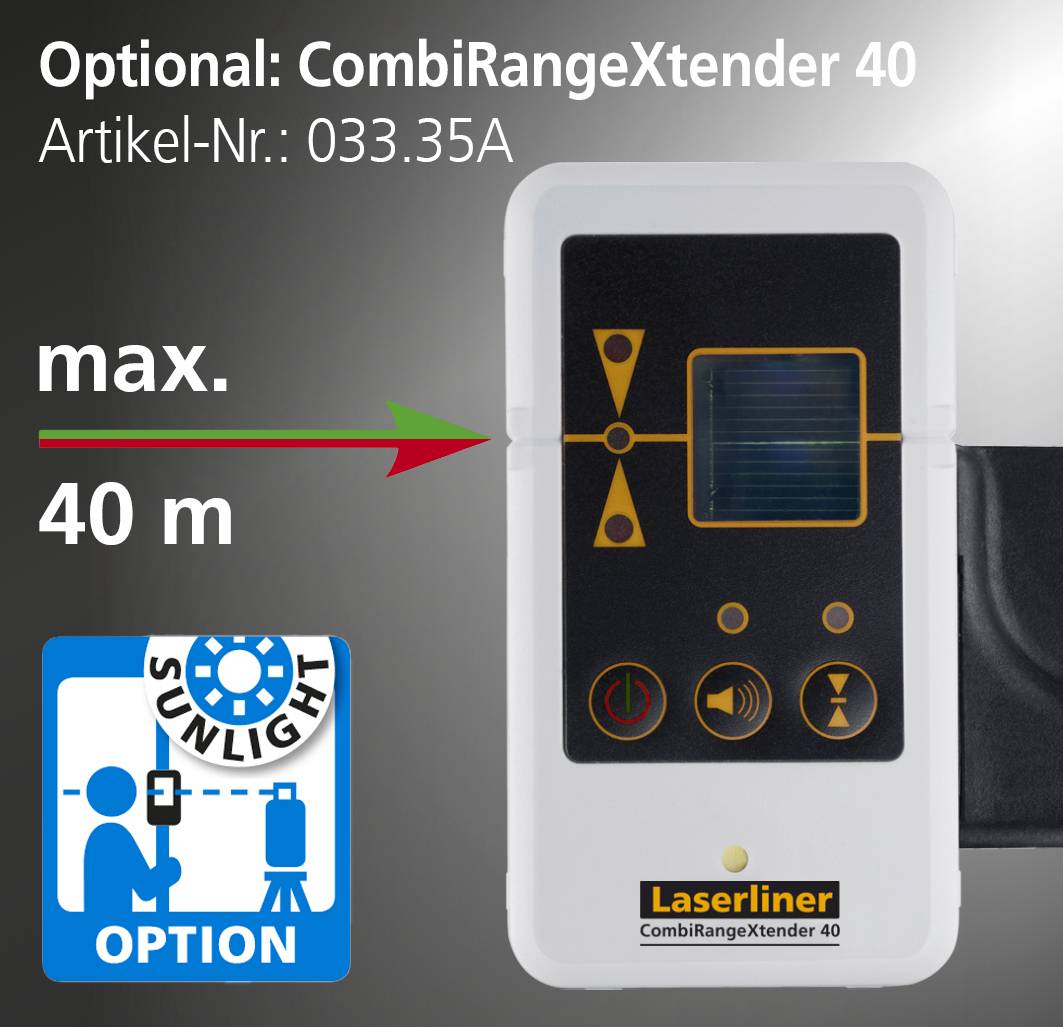

Device with display shows maximum range of 40 m. Note on optional 'Sunlight Option' function. Model: Laserliner CombiRangeXtender 40.

'Laserliner PocketPlane-Laser 3G Set' with tripod, laser device, green protective glasses, USB-C cable, charger, and accessories on white background.

1/6

Fast track dispatch on Fri, 18 Sep

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 251.26 / piece)

€ 251.26

plus VAT.

Only 6 Piece(s) available

Report legal concerns

Technical specifications

Laser wavelength 515 nm

Product type: 3-D laser

Features: Self-levelling

Accuracy (+/-): 0.35 mm/m

Auto-adjustment range (+/-): 3.5°

Laser category: 2

Visible beam length: 30 m

Operating time (battery-powered): 9 h

Power supply (details): Li-Ion battery pack 3.7V / 3.6Ah / 13.32Wh

Tripod thread mount: 1/4"
5/8"

: Manufacturer's standards (no certificate)

Type: PocketPlane-Laser 3G Set 150 cm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2842846 Laserliner PocketPlane-Laser 3G Set 150 cm 3-D laser Self-levelling

Warranty Terms

Warranty Terms 2842846 Laserliner PocketPlane-Laser 3G Set 150 cm 3-D laser Self-levelling

Description

The three-dimensional, compact and well visible green laser projects a horizontal and two vertical laser circles for the precise alignment of objects. The laser cross forms a soldering function for synchronous work on floor and ceiling. Manual tilt mode is available for creating slopes. Thanks to extensive accessories, this laser is the complete solution for demanding projects. Multi-extendable stand legs and crank stroke (30 cm) at the compact stand ensure a large setting range. The PocketWallHolder is a multi-functional, height-adjustable and magnetic holder for attaching to walls, metal constructions and on tripods with 1/4"- and 5/8"-threads.

This text is machine translated.

Features

Three-dimensional, handy laser with horizontal and two vertical green laser circles, compact tripod 150 cm as well as extensive accessories - the complete solution for demanding projects

Scope of delivery

PocketPlane-Laser 3G150 cm compact tripodPocketWallHolder Magnet target plate greenLaser viewing spectaclesLi-ion battery packMains / charger incl. international AdapterCarrying case
