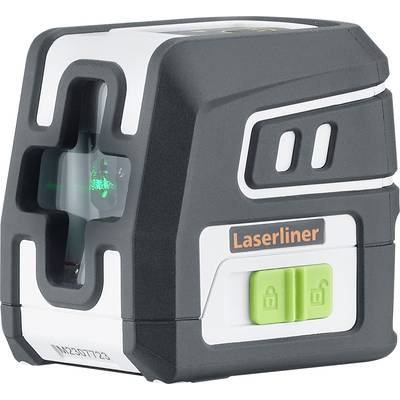

A cross-line laser with mounting bracket. The device has a black housing with green and white accents. It is mounted on a flexible pivot arm.

Laser spirit level with black mounting bracket and green adjustment screw, positioned next to the product packaging. Packaging displays information about the model and its applications.

A green cross-line laser on an adjustable mount. The laser projects vertical and horizontal green lines.

A laser tool projects green lines onto walls and floors in a bathroom to enable precise measurements for tiling work.

A spirit level projects green laser lines onto a tiled wall from a ladder. Helps with precise alignment.

A laser level is positioned in the foreground on a meadow, measuring distance to a sensor on a wooden beam next to a fence.

'Laserliner RangeXtender G 30' device for extending the range up to a maximum of 30 metres. Article number: 033.26E. Functions and display on the device.

An automatic laser leveller projects a green line onto a grey background.

Pivoting mount with a green rotary knob on a metal rod. The knob indicates the adjustment of the mounting position.

A black and white laser measuring device with green buttons, displaying measurements in inches. Contains CE and UK certifications on the back.

Compact cross-line laser in a black and white casing, with battery compartment open, showing two AA batteries.

1/14

Datasheet (PDF)

12 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 55.45 / piece)

€

Report legal concerns

Highlights & Details

Laserliner SmartCross-Laser GX Set Cross line laser Range (max.): 40 m

Sustainable design: The majority of the enclosure is made from recycled plastic
Precise horizontal and vertical alignment of objects
Good visibility with green laser technology
Easy alignment of slopes with manual inclination function
Versatile fixing options without damages
Easy adjustment of the height and position of the measuring device
Time-saving automatic alignment
Integrated manual receiver mode for outdoor applications
Visual signals warn if the device is out of the level area
Pendulum lock for safe transportation

Technical specifications

Range (max.): 40 m

Accuracy (+/-): 0.3 mm

Auto-adjustment range (+/-): 4°

Laser category: 2

Operating time (battery-powered): 6 h

Power supply (details): 2X 1.5V LR6 (AA)

Tripod thread mount: 1/4"

Length: 84 mm

Width: 62 mm

Height: 76 mm

Dim: (L x W x H) 84 x 62 x 76 mm

Weight: 276 g

: Manufacturer's standards (no certificate)

Type: SmartCross-Laser GX Set

Product type: Cross line laser

Documents & Downloads

Datasheet

Datasheet 3350338 Laserliner SmartCross-Laser GX Set Cross line laser Range (max.): 40 m

User & Safety Instructions

User & Safety Instructions 3350338 Laserliner SmartCross-Laser GX Set Cross line laser Range (max.): 40 m

Description

This cross-line laser projects a clearly visible green laser cross for exact horizontal and vertical alignment of objects. It also offers a manual tilt function for easy application of slopes and a ¼"-thread for mounting on a stand or on the accompanying clamp mounting. This allows optimum use of the laser in interior work and allows quick adjustment of position and height. Attachment takes place at the installation point without damaging surfaces. With the integrated handheld receiver mode, the laser can be used even in outdoor applications and alignment work at large distances. The housing of the device is made of a large part of recycled plastic and thus makes a valuable contribution to sustainability.

This text is machine translated.

Scope of delivery

Cross-line laser SmartCross-Laser GX
Flex clamp
2x batteries 1.5V LR6 (AA)
