Name: Legamaster Digital signage display EEC: D (A - G) 75 inch 3840 x 2160 Pixel 18/7
Brand: Legamaster
SKU: 3802265
Availability: BackOrder

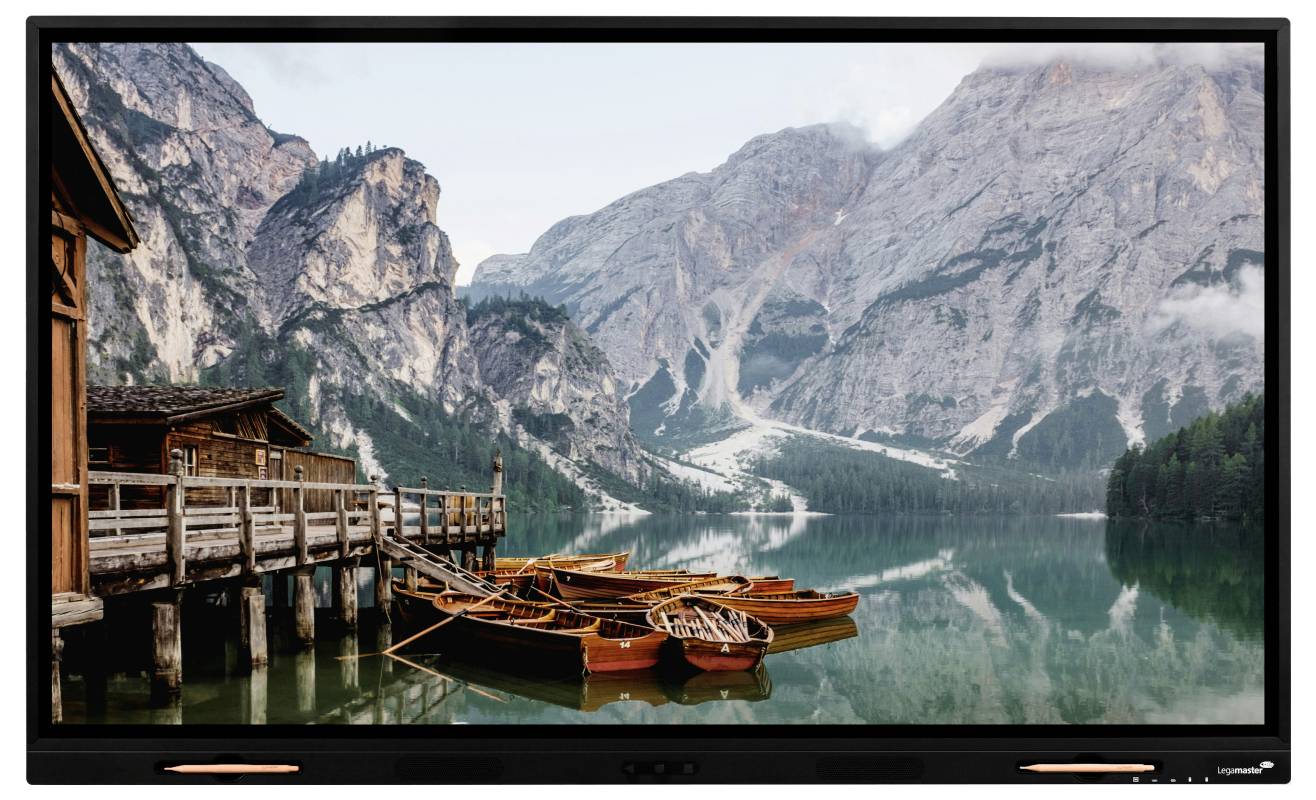

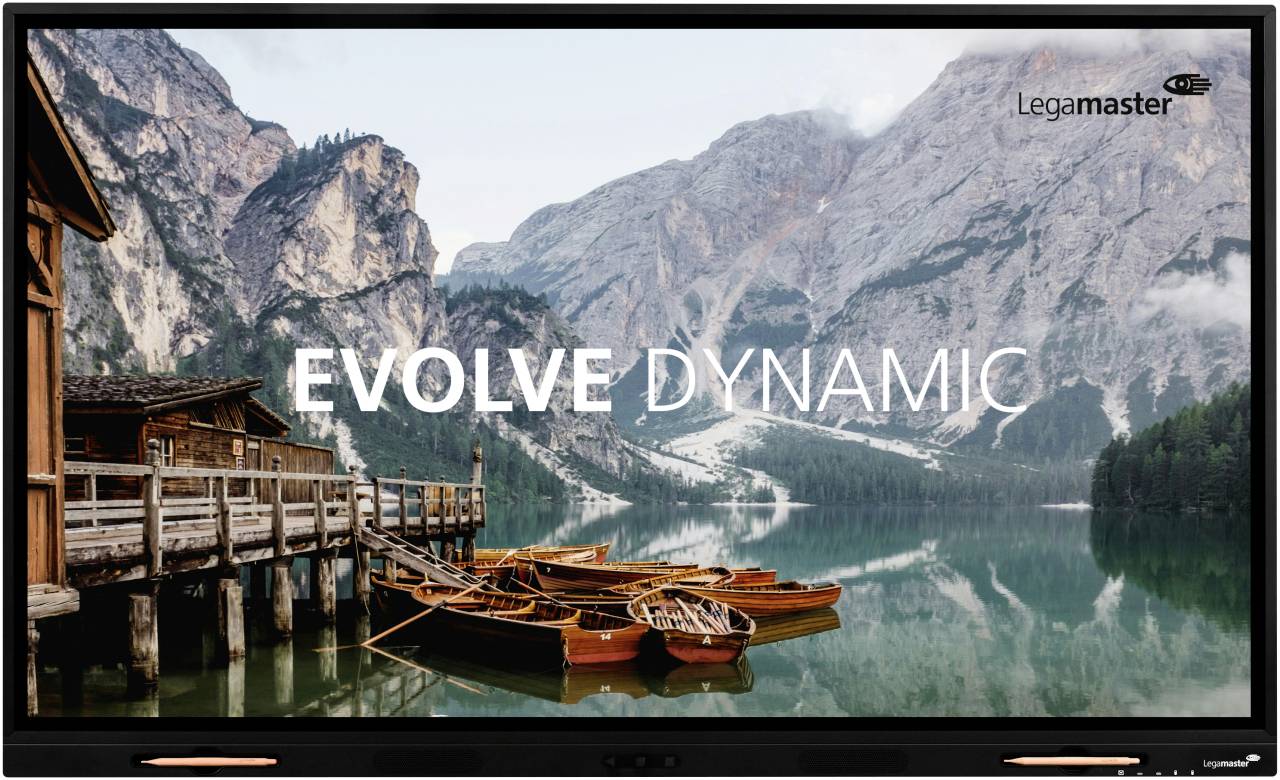

Flat-screen TV displaying a scenic mountain lake with wooden dock and rowboats in the foreground.

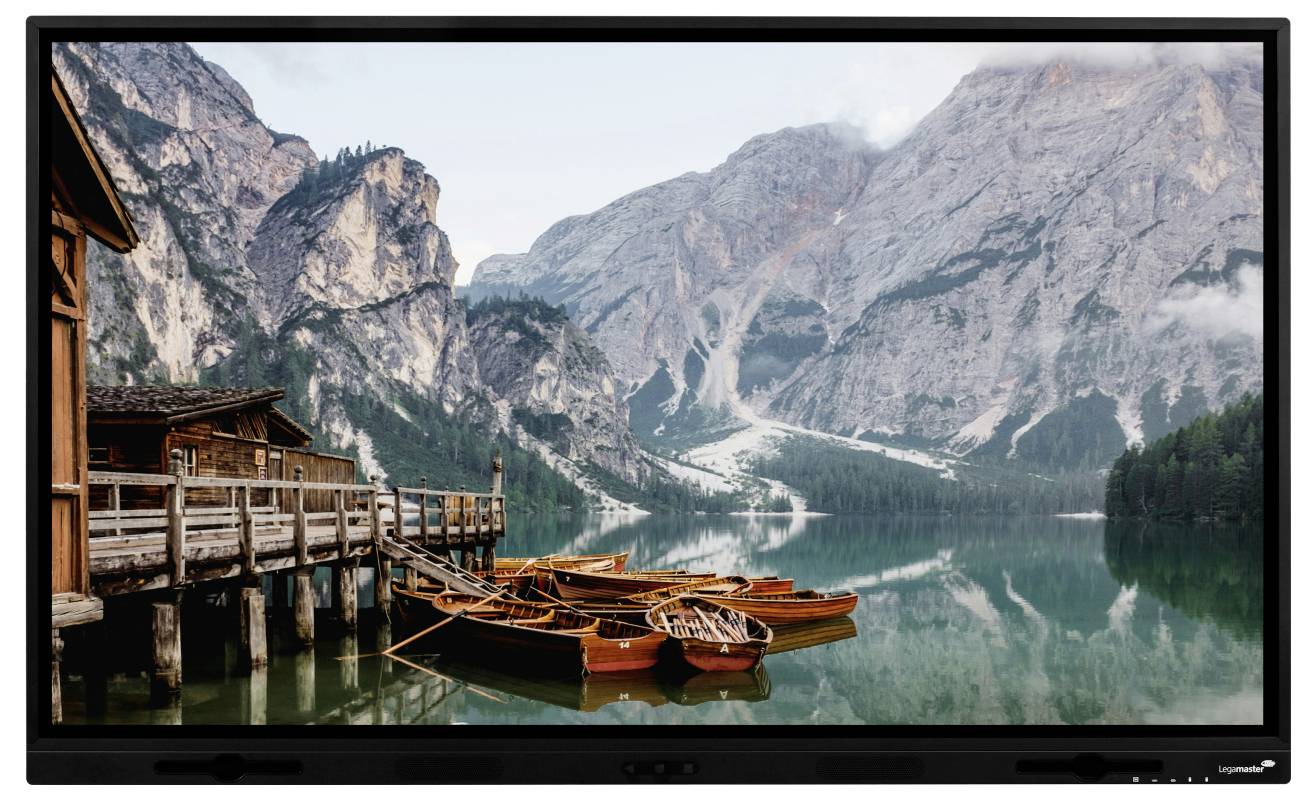

A television displays a mountain lake scene with wooden boats docked at a lakeside pier beside cliffs and cabins.

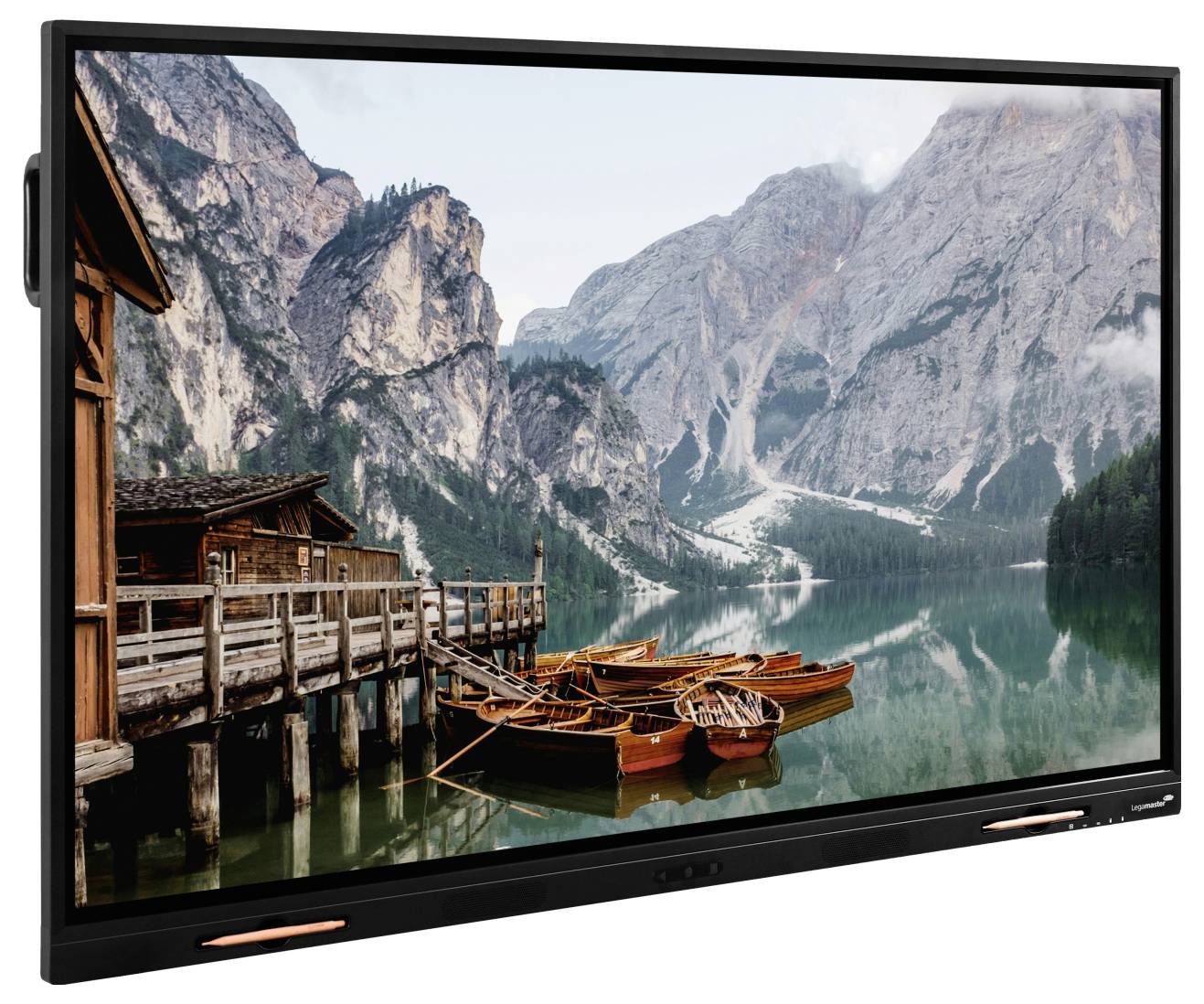

Flat-screen TV displaying a mountain lake scene with wooden dock and rowboats beside a rustic cabin<br>

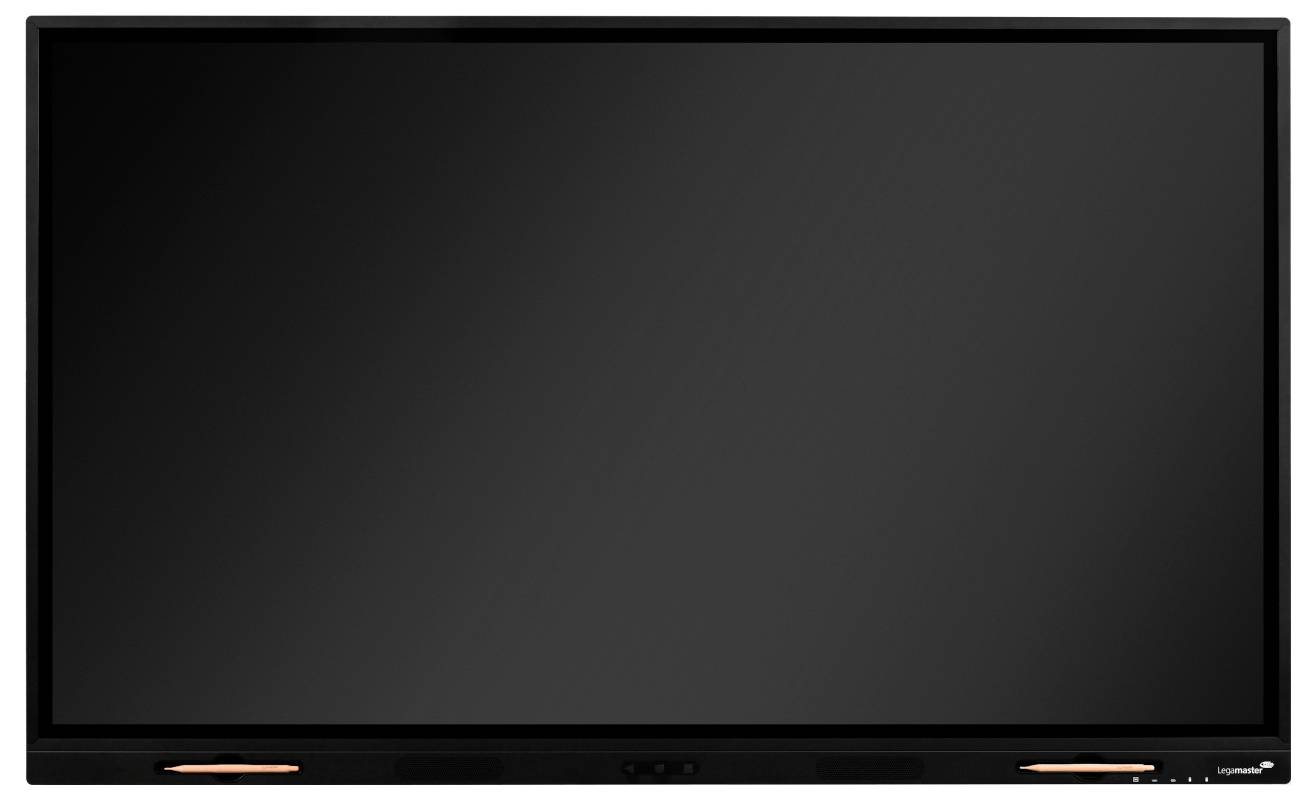

A large blank black flat-screen TV or monitor with a thin bezel and small indicator lights along the bottom edge.

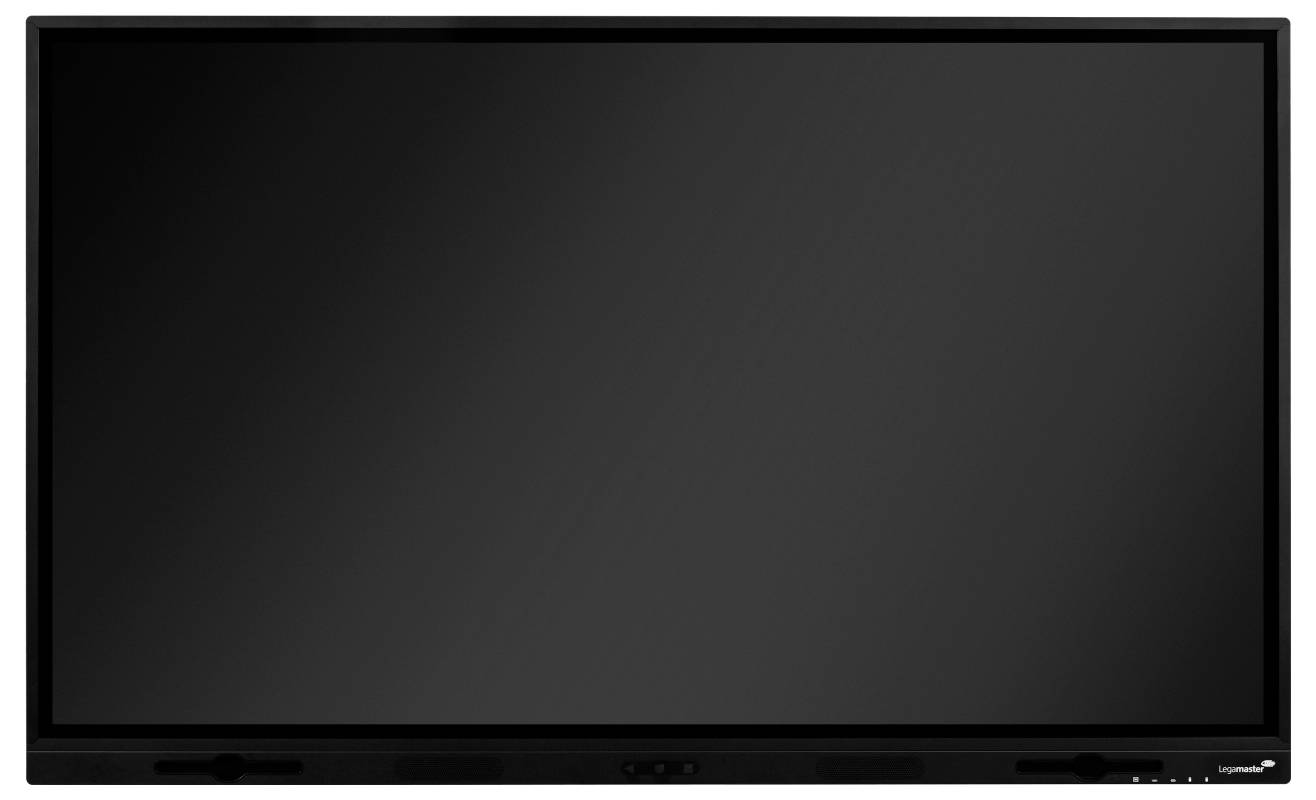

Blank black television screen with no content displayed.

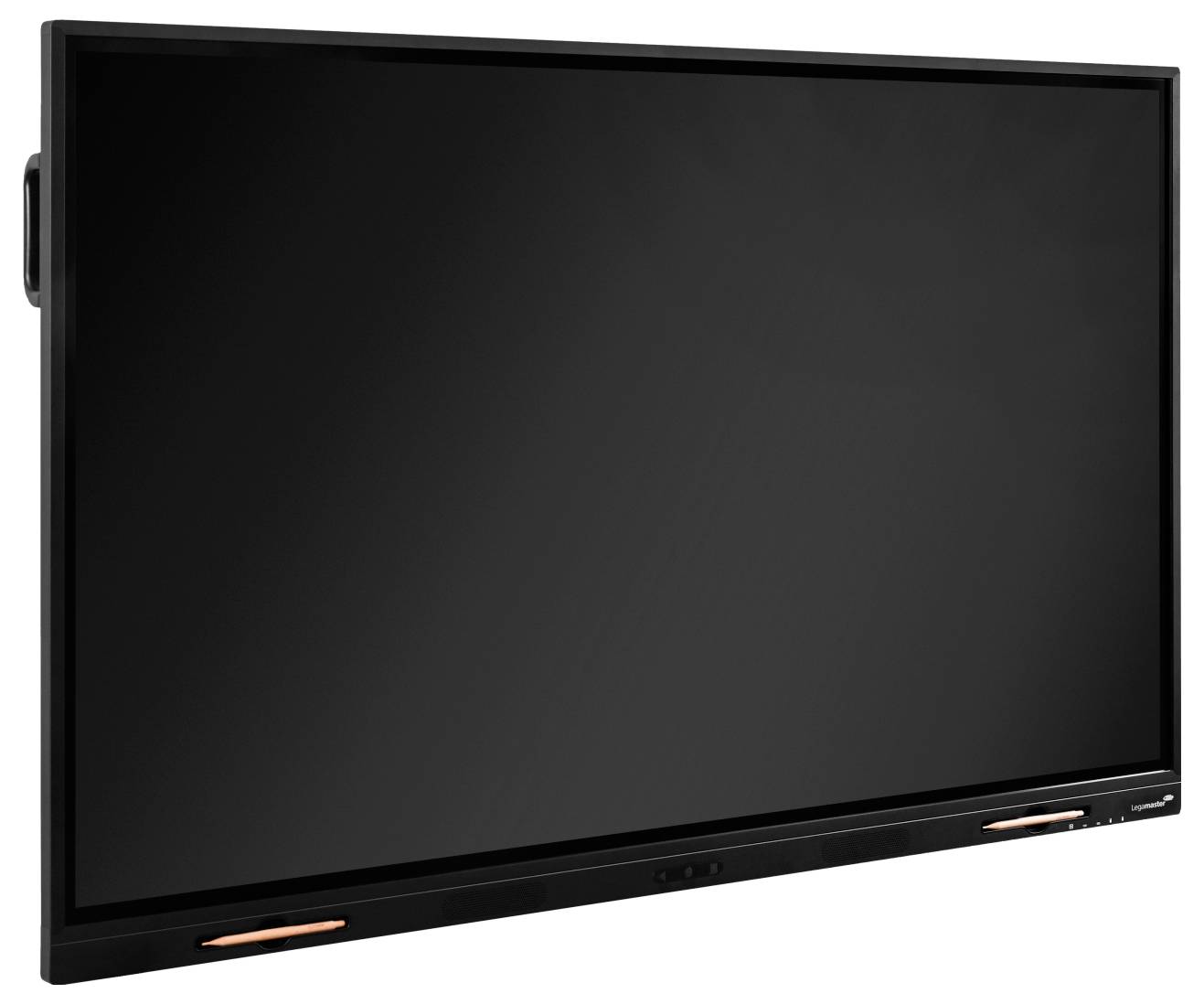

Large black flat-screen display or interactive monitor, angled slightly, with a blank screen and slim bezel on a white background.

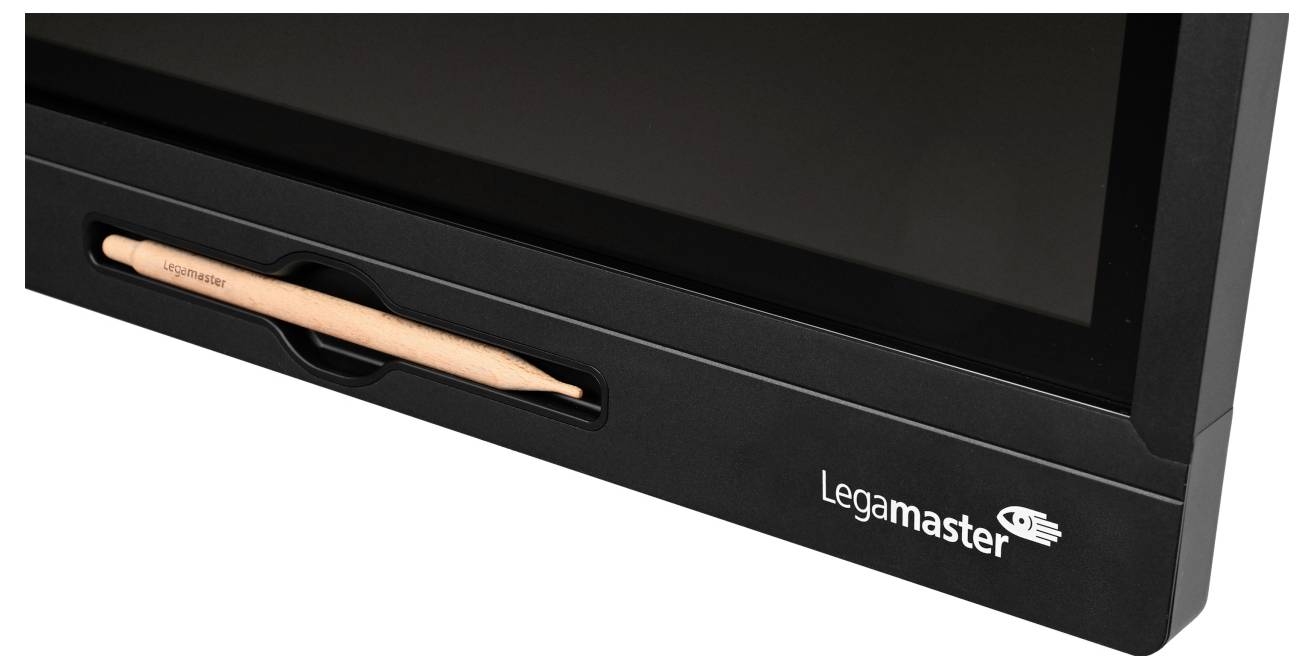

Close-up of a Legamaster interactive display with a stylus stored in the lower front slot.<br>

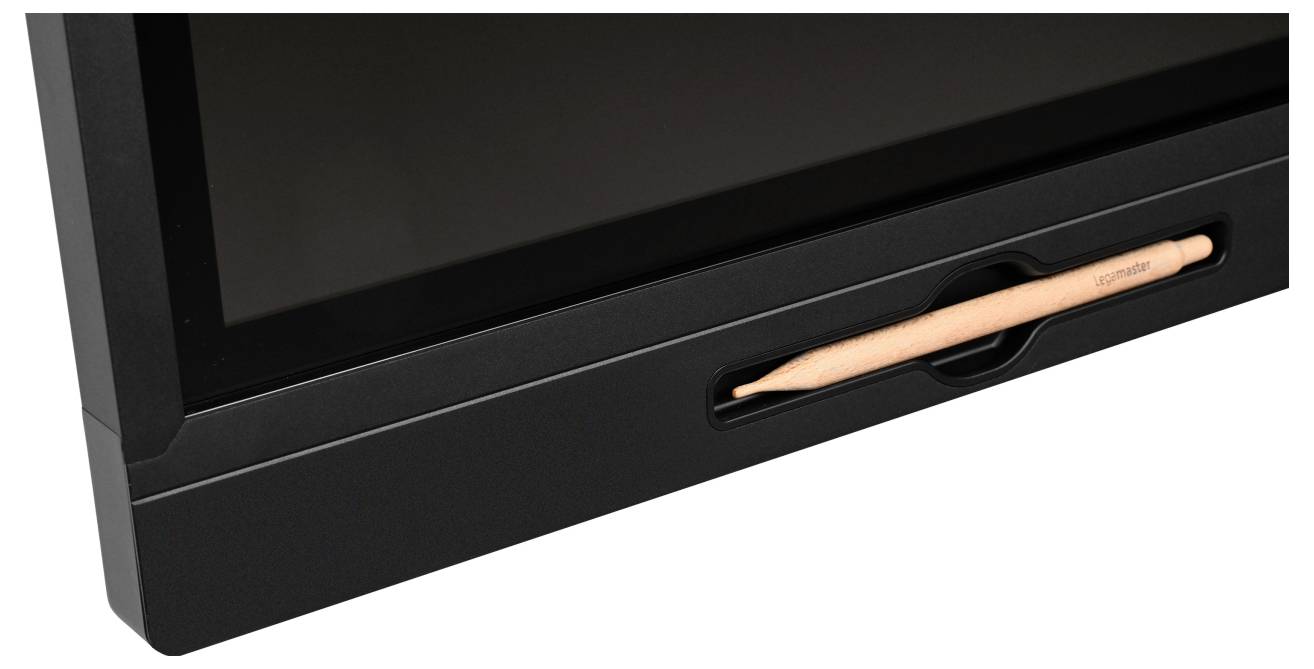

Close-up of a black monitor or tablet with a stylus stored in a built-in slot along the bottom edge.

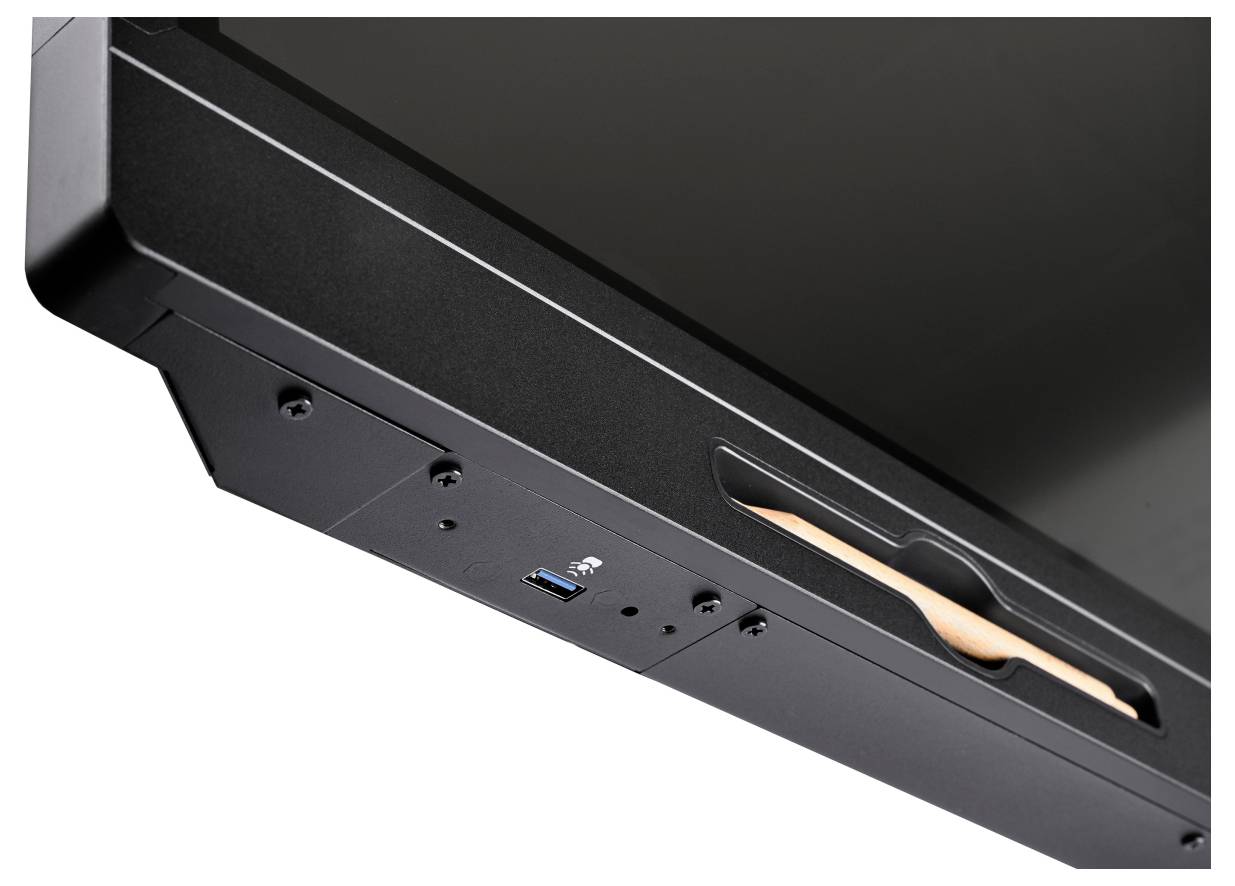

Close-up of a black device edge with a blue USB port and a recessed handle, shown against a white background.

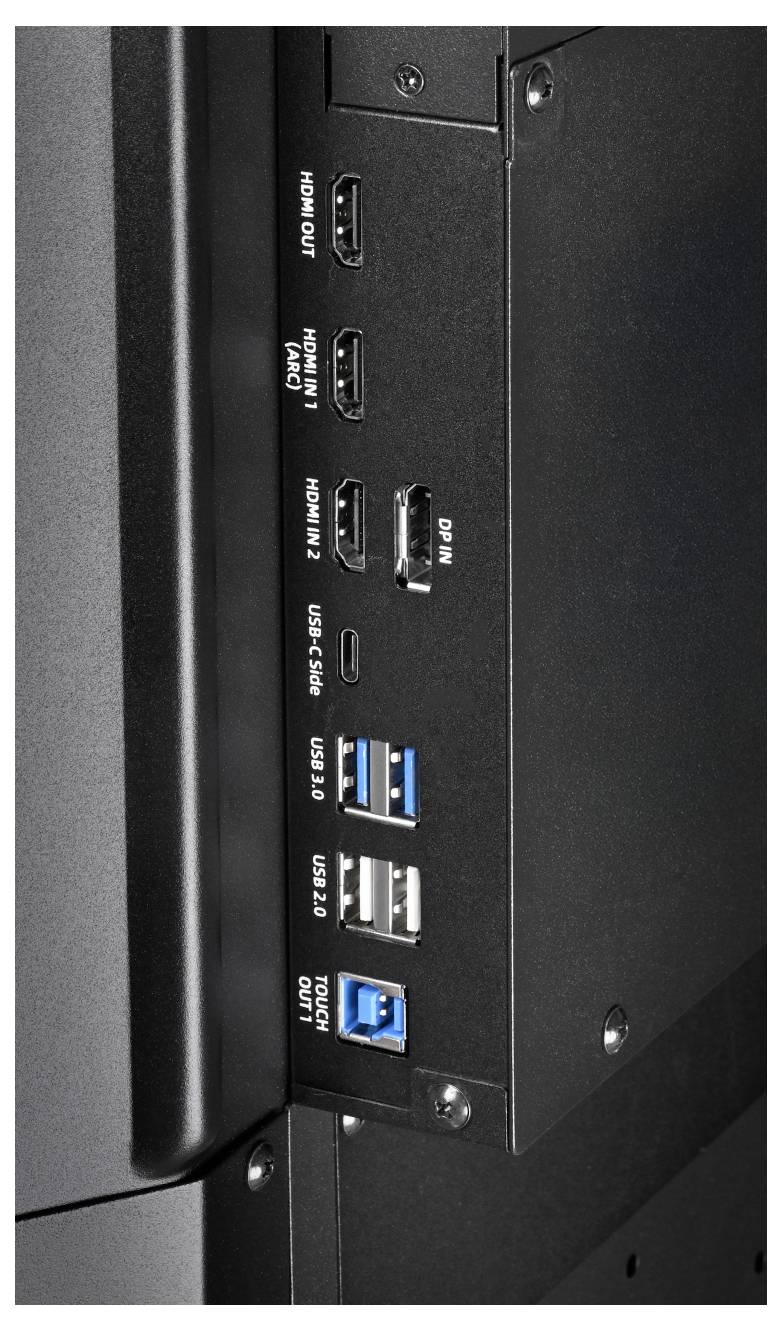

Close-up of a monitor's side port panel with HDMI in and out, DisplayPort in, USB-C, two USB 3.0 ports, USB 2.0 port, and audio out/input jacks.

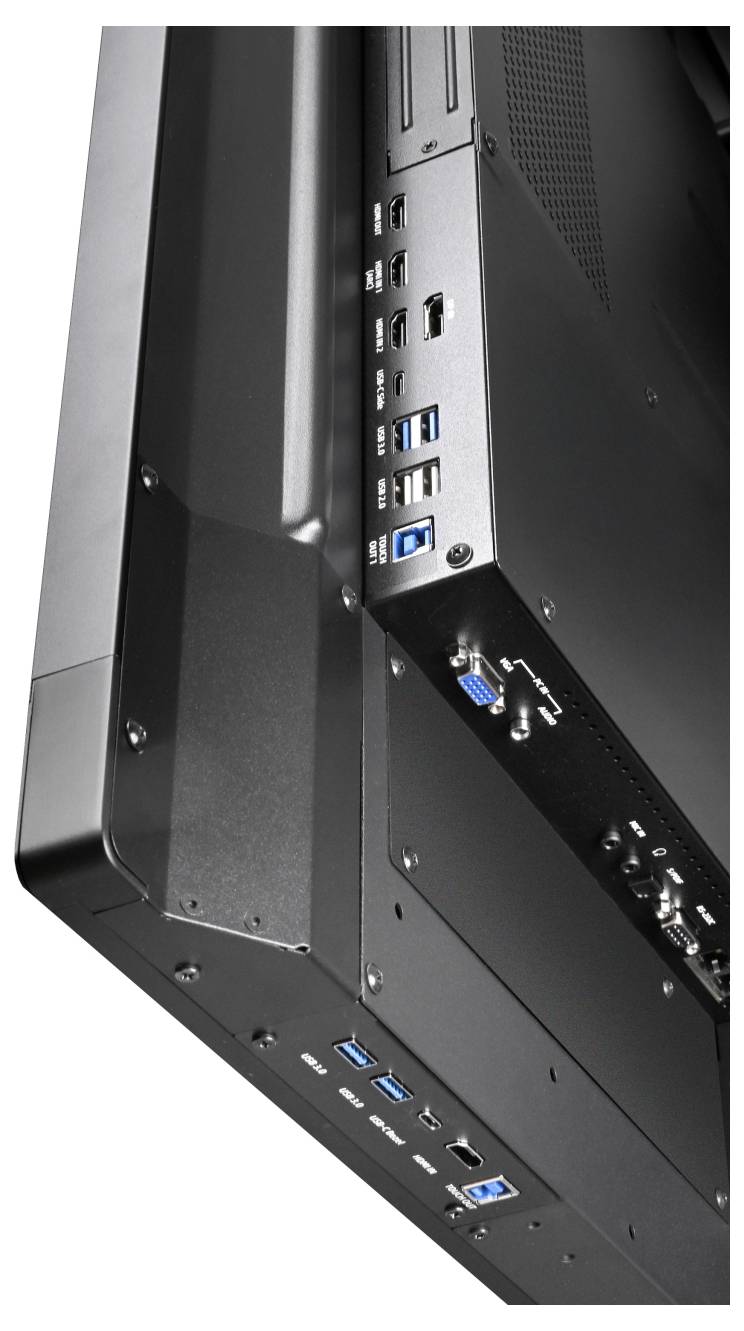

Back and side view of a black monitor or TV showing input ports, including USB, HDMI, and VGA connections.<br>

Student writes on a touchscreen whiteboard while a teacher watches and explains in a classroom.

Teacher explains the Pythagorean theorem on a smart board to students in a modern classroom.

1/14

Product data sheet

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 3 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,795.00 / piece)

€ 1,795.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Legamaster Digital signage display

Display resolution: 3840 x 2160 Pixel
Energy efficiency rating (calc): D (A - G)
Operating time (console): 18/7

Technical specifications

HD type 4K Ultra HD
Contrast ratio 1200:1
Contrast ratio (dynamic): 5000:1
WLAN-standards Wi-Fi 6 (802.11ax)
HDMI version 2.0

Product type: Digital signage display

Screen size diagonal (inches): 75 inch

Operating time (console): 18/7

Display resolution: 3840 x 2160 Pixel

Image format: 16:9

Power supply (details): 100 - 240 V

Power consumption (standby): 0.5 W

: 800 x 600 mm

Factory colour: Black

: D (A - G)

Display: 190.5 cm (75 inch)

Display (cm): 190.5 cm

Screen size diagonal (inches): 75 inch

Bluetooth: 5.3

Bluetooth: Yes

Display properties: IPS

No. of DisplayPort: 1 x

No. of HDMI ports: 4 x

No. of VGA ports: 1 x

Processor cores (No.): 8 x

No. of USB A 2.0 ports: 2 x

No. of USB type A 3.1 / 3.2 1st Gen: 4 x

Touchscreen (display): Yes

Microphone: No

10/100/1000 Mbps ports: 2 x

Operating system (Version): Android™ 14

Brightness: 450 cd/m²

Response time: 8 ms

Hor. viewing angle: 178°

Vertical viewing angle: 178°

Wi-Fi: Yes

Anti-glare screen: yes

Multi-touch: yes

Operating temperature (T-T): 5 - 35 °C

Number of simultaneous touchpoints: 50

Ethernet LAN: yes

Storage relative humidity (H-H): 1 - 80 %

Wall mountable: yes

Remote control included: yes

VESA mounting: yes

Pallet gross weight: 1017 kg

Pallet gross width: 115 cm

Pallet gross length: 186 cm

Pallet gross height: 128 cm

Pallet net weight: 294 kg

Built-in speaker(s): yes

Pallet net length: 186 cm

Pallet net width: 115 cm

Pallet net height: 128 cm

Customs product code (TARIC): 852852100000

Energy consumption (SDR) per 1000 hours: 123 kWh

Energy consumption (HDR) per 1000 hours: 76 kWh

LED backlight: yes

Operating relative humidity (H-H): 20 - 80 %

Products per pallet: 6 Stück(e)

Storage temperature (T-T): -15 - 45 °C

Package weight: 57.2 kg

Built-in processor: yes

Built-in camera: no

Documents & Downloads

Datasheet

Datasheet 3802265 Legamaster Digital signage display EEC: D (A - G) 75 inch 3840 x 2160 Pixel 18/7

User & Safety Instructions

User & Safety Instructions 3802265 Legamaster Digital signage display EEC: D (A - G) 75 inch 3840 x 2160 Pixel 18/7

Description

EDLA-certified Android 14 (can be upgraded). Octa-core system for first-class performance. Anti-glare coating. Highly precise pressure-sensitive IR with 50 contact points. 3xHDMI + 2xUSB-C inputs. Xyte integration provides free and secure OTA updates, MDM functionality, and advanced support features. Integrated wireless sharing of content. ENERGY STAR-certified. 450 CD/m2 brightness. Wifi 6/Bluetooth 5.3 connectivity/40W audio output. Zero gap bonding panel with Hohem contrast and brightness.

This text is machine translated.

Features

Google's EDLA certification provides more security while allowing users access to the software they are used to
Evolve Series Xyte integration enables administrators to configure, manage, and monitor all devices from a single user interface, while improving service and support capabilities
The Evolve was developed to be future-proof. From the computing power of the Octa-Core to the high-end components used, Evolve is ready for the future
ENERGY STAR certification is a testament to our commitment to energy-efficient products and helps reduce total cost of ownership throughout the product lifecycle
Legamaster offers a complete range of mounting systems and peripherals compatible with the Evolve series

Hints

HDMI is a registered trademark of HDMI Licensing, LLC. The “CI Plus” Logo is a trademark of CI Plus LLP. All information provided is subject to change without notice. Design and functions are subject to change
