Legrand 049983 Timer analogue 24h mode IP30 Daylight savings control
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 72.26 / piece)
€ 72.26
plus VAT.
Only 8 Piece(s) available
Technical specifications
- Shift preselection: Yes
- Manual operation: Yes
- Contact type: Changer
- Supply voltage frequency 50 Hz
- Number of channels: 1
- Mounting type: Front mounting 72x72 mm
- Product type
Timer
- Type
analogue
- Features
Daylight savings control
- Switching cycle
24h mode
- Used at
Fixed
IP30
- Operating voltage
230 V AC
- Switching current (max.)
20 A
- Shortest switching time
120 min
- Width
72 mm
- Height
100.5 mm
- Depth
35.5 mm
- Dim
(W x H x D) 72 x 100.5 x 35.5 mm
- Intervall settings
20 min
- Weight
0.13
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2157980 Legrand 049983 Timer analogue 24h mode IP30 Daylight savings control
User & Safety Instructions
User & Safety Instructions 2157980 Legrand 049983 Timer analogue 24h mode IP30 Daylight savings control
Description

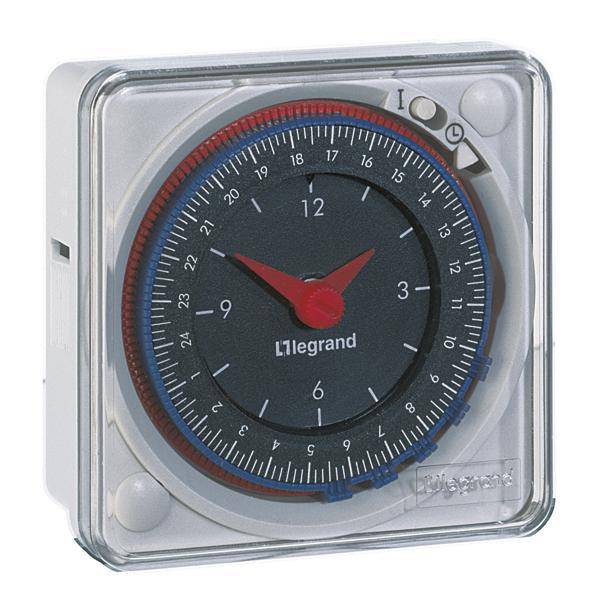

Legrand EconoRex MT, analogueue daytime timer switch with synchronous motor (line-synchronous accuracy) for front panel mounting and wall mounting, 1 channel, operating voltage 230 V 50 Hz. Flat plug connection, hands can be rotated forwards and backwards, making it easy to change over (e.g. summer/winter time), day disc with captive segments, shortest switching time 20 min., wall mounting with wall bracket Order No. 049594 optional, dimensions (HxB): 72 x 72 mm, switching output: 1 changeover contact.
This text is machine translated.
