Leuze Electronic Retroreflective photo sensor HT46CI/4P-M12 50127061 Background suppression, Light-ON, Dark-ON 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective photo sensor
Functions
Background suppression
Light-ON
Dark-ON
Max. operating voltage
30 V DC
Connector
M12 (4-pin)
Type
HT46CI/4P-M12
Datasheet (PDF)
Number
Total (€ 193.27 / piece)
€ 193.27
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Product type
Retroreflective photo sensor
- Type
HT46CI/4P-M12
- Functions
Background suppression
Light-ON
Dark-ON
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
2x PNP Antivalent
- Switching frequency
250 Hz
- Connector
M12 (4-pin)
- Transmitter type
LED IR
- Wavelength
860 nm
3 m
IP67/IP69K
- Min. temperature
-40 °C
- Max. temperature
+60 °C

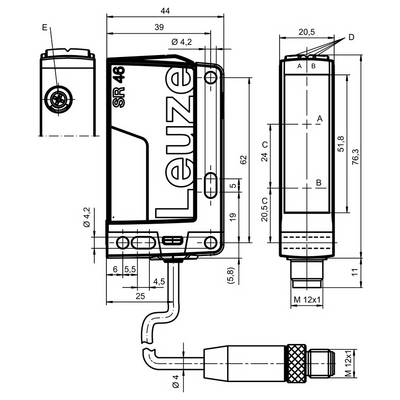

- Width
20.5 mm
- Height
77.4 mm
- Depth
44 mm
- Dim
(W x H x D) 20.5 x 77.4 x 44 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1581247 Leuze Electronic Retroreflective photo sensor HT46CI/4P-M12 50127061 Background suppression, Light-ON, Dark-ON 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1581247 Leuze Electronic Retroreflective photo sensor HT46CI/4P-M12 50127061 Background suppression, Light-ON, Dark-ON 1 pc(s)
Information
Information 1581247 Leuze Electronic Retroreflective photo sensor HT46CI/4P-M12 50127061 Background suppression, Light-ON, Dark-ON 1 pc(s)
Description
Button with adjustable background fade-out. A²LS active external light elimination to avoid mutual interference. Robust plastic housing with degree of protection IP67 and IP 69K.
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50127061, please refer to its datasheet under 'downloadable documents'
